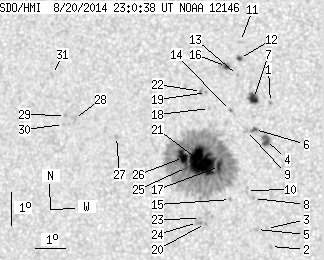

SDO HMI 2014-08-20 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.23 | 417.53 | 42.56 | 224.68 | 9.07 | 343.59 | -23.09 | 83.01 | 0.3920 | -598.4 | -364.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.86 | 10.83 | 345.75 | -20.93 | 77.72 | 0.3606 | -976.0 | -768.6 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 6.47 | 346.00 | -20.68 | 89.98 | 0.3524 | -704.0 | -607.9 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 7.00 | 345.84 | -20.84 | 88.43 | 0.3547 | -756.0 | -579.7 | |
| 4.86 | 7.46 | 2.58 | 3.96 | 9.67 | 345.66 | -21.01 | 80.96 | 0.3595 | 1021.3 | 795.6 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 6.96 | 345.52 | -21.16 | 88.54 | 0.3600 | -707.0 | -597.9 | |
| 1.17 | 2.61 | 0.62 | 1.39 | 9.99 | 345.28 | -21.40 | 80.20 | 0.3662 | 898.3 | 704.0 | |
| 6.29 | 8.72 | 3.35 | 4.65 | 10.93 | 345.18 | -21.50 | 77.70 | 0.3699 | 1047.4 | 707.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 7.90 | 345.37 | -21.31 | 85.94 | 0.3624 | 756.0 | 547.8 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 9.95 | 345.02 | -21.66 | 80.39 | 0.3703 | 506.0 | 361.1 | |
| 0.00 | 2.43 | 0.00 | 1.29 | 8.13 | 345.13 | -21.55 | 85.32 | 0.3664 | -97.0 | -206.0 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 12.64 | 344.60 | -22.07 | 73.49 | 0.3841 | -613.0 | -403.3 | |
| 1.44 | 3.42 | 0.77 | 1.83 | 12.12 | 344.61 | -22.06 | 74.82 | 0.3821 | -857.2 | -574.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 11.60 | 344.59 | -22.09 | 76.17 | 0.3809 | 803.0 | 644.0 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 10.53 | 344.44 | -22.23 | 79.03 | 0.3806 | -913.0 | -757.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 7.83 | 344.62 | -22.06 | 86.15 | 0.3745 | -647.0 | -568.8 | |
| 1.71 | 5.84 | 0.92 | 3.14 | 11.86 | 344.20 | -22.48 | 75.69 | 0.3877 | 657.7 | -277.0 | |
| 4.50 | 351.95 | 2.41 | 189.41 | 8.82 | 344.19 | -22.48 | 83.58 | 0.3819 | -1445.4 | -441.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 10.56 | 343.74 | -22.94 | 79.18 | 0.3917 | 692.0 | 550.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 11.04 | 343.60 | -23.08 | 78.01 | 0.3950 | -826.0 | -687.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 7.07 | 343.83 | -22.85 | 88.16 | 0.3872 | 958.0 | 824.5 | |
| 49.91 | -17.00 | 26.85 | -17.00 | 8.91 | 343.59 | -23.09 | 83.43 | 0.3916 | -1393.8 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.12 | 11.06 | 343.43 | -23.25 | 78.02 | 0.3977 | -763.0 | -688.1 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 7.21 | 343.66 | -23.02 | 87.79 | 0.3899 | 236.0 | 255.5 | |
| 0.00 | 3.33 | 0.00 | 1.79 | 7.09 | 343.56 | -23.11 | 88.10 | 0.3914 | 706.0 | 459.8 | |
| 0.27 | -17.00 | 0.15 | -17.00 | 8.74 | 343.10 | -23.58 | 83.94 | 0.3993 | -816.3 | 999999 | |
| 9.08 | -17.00 | 4.91 | -17.00 | 9.04 | 342.98 | -23.70 | 83.20 | 0.4015 | -1047.7 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.14 | 9.56 | 340.67 | -26.01 | 82.30 | 0.4382 | 567.0 | 354.2 | |
| 0.00 | 4.50 | 0.00 | 2.51 | 10.03 | 339.18 | -27.50 | 81.49 | 0.4616 | 753.0 | 531.7 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 10.11 | 338.86 | -27.82 | 81.38 | 0.4666 | 873.0 | 706.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 9.83 | 338.81 | -27.86 | 81.98 | 0.4670 | 628.0 | 498.5 | |
| 0.00 | 1.98 | 0.00 | 1.11 | 11.32 | 338.28 | -28.40 | 78.92 | 0.4771 | 640.0 | 554.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
