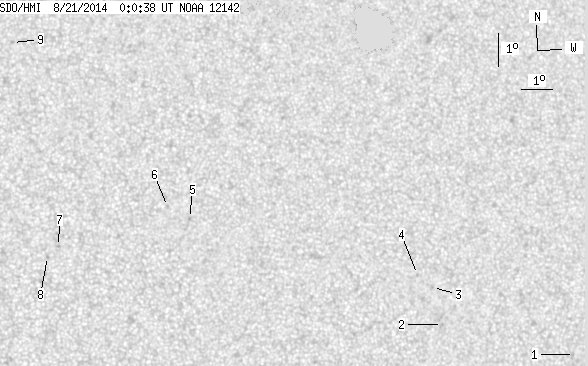

SDO HMI 2014-08-21 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.36 | 0.00 | 4.90 | 10.09 | 23.47 | 17.34 | 284.43 | 0.3066 | 85.7 | 119.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.35 | 5.90 | 34.67 | 28.55 | 269.64 | 0.4773 | -508.0 | -546.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 7.05 | 30.24 | 24.11 | 271.83 | 0.4074 | -867.0 | -788.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 8.19 | 29.97 | 23.85 | 274.65 | 0.4032 | -731.0 | -562.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 8.60 | 29.50 | 23.37 | 275.74 | 0.3959 | -761.0 | -661.3 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 10.61 | 22.16 | 16.04 | 284.30 | 0.2815 | 641.0 | 505.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 10.99 | 21.48 | 15.35 | 286.22 | 0.2719 | 682.0 | 481.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.88 | 17.97 | 11.84 | 285.09 | 0.2103 | 720.0 | 606.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 9.59 | 17.61 | 11.49 | 284.07 | 0.2033 | 785.0 | 601.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 16.14 | 16.80 | 10.68 | 312.39 | 0.2421 | 810.0 | 651.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
