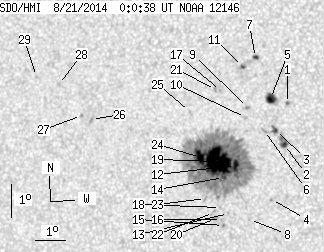

SDO HMI 2014-08-21 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.02 | 387.53 | 39.07 | 207.65 | 9.07 | 343.62 | -22.51 | 82.92 | 0.3827 | -606.0 | -380.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.76 | 10.80 | 345.76 | -20.36 | 77.58 | 0.3515 | -854.0 | -733.1 | |
| 2.52 | 8.36 | 1.33 | 4.42 | 9.55 | 345.74 | -20.38 | 81.13 | 0.3491 | 1084.5 | 788.1 | |
| 1.53 | 4.86 | 0.81 | 2.57 | 9.96 | 345.42 | -20.70 | 80.06 | 0.3550 | 914.4 | 617.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 7.86 | 345.41 | -20.71 | 86.00 | 0.3527 | 680.0 | 535.1 | |
| 6.47 | 9.80 | 3.44 | 5.20 | 10.92 | 345.19 | -20.93 | 77.47 | 0.3609 | 1057.0 | 579.1 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 9.95 | 345.06 | -21.06 | 80.22 | 0.3608 | 401.0 | 374.7 | |
| 1.26 | 2.61 | 0.67 | 1.39 | 12.15 | 344.60 | -21.53 | 74.48 | 0.3739 | -735.7 | -611.7 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 7.23 | 344.72 | -21.40 | 87.80 | 0.3638 | 505.0 | 542.7 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 10.62 | 344.45 | -21.67 | 78.60 | 0.3719 | -1059.0 | -814.0 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 10.31 | 344.41 | -21.72 | 79.44 | 0.3719 | -150.0 | -129.4 | |
| 0.90 | 2.16 | 0.48 | 1.15 | 11.86 | 344.19 | -21.94 | 75.45 | 0.3794 | 661.5 | 429.7 | |
| 5.22 | 329.77 | 2.78 | 176.76 | 8.84 | 344.17 | -21.95 | 83.44 | 0.3734 | -1428.8 | -477.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 7.38 | 344.02 | -22.10 | 87.38 | 0.3751 | -241.0 | -212.0 | |
| 2.25 | -12.00 | 1.20 | -12.00 | 8.46 | 343.80 | -22.33 | 84.50 | 0.3791 | -1092.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 7.01 | 343.88 | -22.25 | 88.36 | 0.3776 | 913.0 | 721.0 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 7.19 | 343.80 | -22.32 | 87.88 | 0.3787 | 661.0 | 502.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 11.10 | 343.51 | -22.61 | 77.71 | 0.3878 | -810.0 | -724.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 7.55 | 343.75 | -22.38 | 86.92 | 0.3795 | -730.0 | -577.3 | |
| 45.41 | -12.00 | 24.34 | -12.00 | 8.94 | 343.57 | -22.56 | 83.28 | 0.3832 | -1414.0 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.25 | 7.21 | 343.60 | -22.52 | 87.82 | 0.3819 | 266.0 | 230.6 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 11.12 | 343.34 | -22.78 | 77.71 | 0.3905 | -913.0 | -667.6 | |
| 0.00 | 2.25 | 0.00 | 1.21 | 7.39 | 343.53 | -22.60 | 87.35 | 0.3831 | -376.0 | -281.2 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 7.80 | 343.24 | -22.89 | 86.28 | 0.3878 | -158.0 | -131.2 | |
| 7.46 | -12.00 | 4.02 | -12.00 | 9.03 | 343.00 | -23.13 | 83.13 | 0.3924 | -1077.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 10.41 | 342.53 | -23.60 | 79.76 | 0.4018 | 587.0 | 365.8 | |
| 0.00 | 2.52 | 0.00 | 1.40 | 10.01 | 339.22 | -26.91 | 81.46 | 0.4525 | 899.0 | 598.6 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 10.11 | 338.86 | -27.26 | 81.29 | 0.4581 | 838.0 | 711.0 | |
| 0.00 | 1.98 | 0.00 | 1.11 | 11.00 | 337.97 | -28.15 | 79.54 | 0.4729 | 635.0 | 442.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 11.20 | 337.18 | -28.95 | 79.29 | 0.4851 | 229.0 | 286.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
