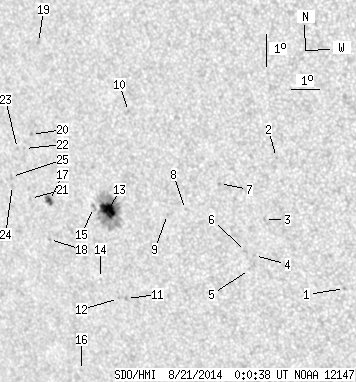

SDO HMI 2014-08-21 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.53 | 95.62 | 11.58 | 59.50 | -9.46 | 332.61 | -33.52 | 115.75 | 0.6068 | 664.6 | 400.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.57 | -11.49 | 340.77 | -25.36 | 125.93 | 0.5204 | 781.0 | 642.5 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -7.47 | 338.77 | -27.36 | 117.26 | 0.5146 | 668.0 | 543.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -9.44 | 338.20 | -27.93 | 120.08 | 0.5360 | 685.0 | 523.7 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -10.61 | 337.73 | -28.39 | 121.53 | 0.5504 | 802.0 | 578.4 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -11.07 | 337.51 | -28.62 | 122.03 | 0.5566 | 512.0 | 348.0 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -10.50 | 337.43 | -28.70 | 121.08 | 0.5534 | 684.0 | 532.3 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -8.40 | 336.71 | -29.42 | 117.09 | 0.5479 | 657.0 | 495.5 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -9.30 | 335.42 | -30.71 | 117.50 | 0.5703 | 721.0 | 512.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -9.50 | 334.75 | -31.37 | 117.29 | 0.5800 | 589.0 | 527.2 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -6.34 | 333.62 | -32.50 | 111.50 | 0.5762 | 670.0 | 505.3 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -12.29 | 332.91 | -33.22 | 120.03 | 0.6206 | -731.0 | -659.6 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -12.31 | 332.60 | -33.52 | 119.84 | 0.6242 | -640.0 | -515.8 | |
| 15.20 | 64.30 | 9.45 | 40.00 | -9.51 | 332.60 | -33.53 | 115.76 | 0.6071 | 1107.8 | 398.0 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -11.71 | 332.02 | -34.11 | 118.56 | 0.6274 | 256.0 | 211.8 | |
| 0.00 | 2.61 | 0.00 | 1.63 | -9.45 | 332.05 | -34.08 | 115.30 | 0.6136 | 542.0 | 425.1 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -14.75 | 330.79 | -35.33 | 121.86 | 0.6608 | -600.0 | -503.3 | |
| 3.33 | 5.58 | 2.13 | 3.56 | -9.35 | 330.41 | -35.72 | 114.09 | 0.6332 | 853.8 | 635.4 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -10.59 | 330.25 | -35.88 | 115.77 | 0.6420 | 592.0 | 411.0 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -4.42 | 330.43 | -35.69 | 106.64 | 0.6094 | 789.0 | 603.4 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -7.31 | 329.94 | -36.18 | 110.81 | 0.6287 | 714.0 | 626.5 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -9.34 | 329.68 | -36.44 | 113.63 | 0.6420 | 495.0 | 494.2 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -7.77 | 329.63 | -36.49 | 111.32 | 0.6348 | 690.0 | 571.4 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -7.79 | 329.36 | -36.76 | 111.20 | 0.6383 | 570.0 | 451.3 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -8.98 | 329.04 | -37.09 | 112.73 | 0.6481 | 634.0 | 485.1 | |
| 0.00 | 1.53 | 0.00 | 0.99 | -8.69 | 329.03 | -37.09 | 112.32 | 0.6468 | 613.0 | 573.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
