SDO HMI 2014-08-21 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.10 | 0.00 | 4.34 | 9.05 | 26.81 | 21.24 | 280.73 | 0.3696 | -498.1 | -464.0 | |
|
previous
or next observation for the same group /

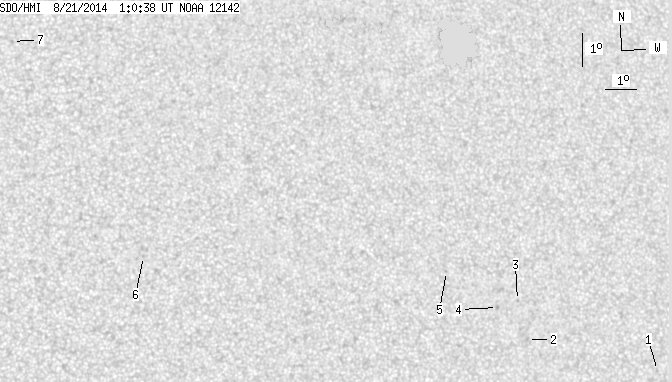

back to the solar disc SDO HMI 2014-08-21 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.51 | 5.84 | 34.64 | 29.06 | 269.58 | 0.4852 | -611.0 | -526.0 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 7.02 | 30.25 | 24.68 | 271.80 | 0.4164 | -886.0 | -761.1 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 8.22 | 29.99 | 24.42 | 274.70 | 0.4122 | -623.0 | -513.8 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 8.04 | 29.31 | 23.73 | 274.30 | 0.4014 | -822.0 | -656.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 9.21 | 27.69 | 22.11 | 277.52 | 0.3764 | -707.0 | -563.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.02 | 17.96 | 12.38 | 285.15 | 0.2197 | 815.0 | 658.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 16.68 | 14.10 | 8.52 | 320.31 | 0.2233 | -653.0 | -540.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
