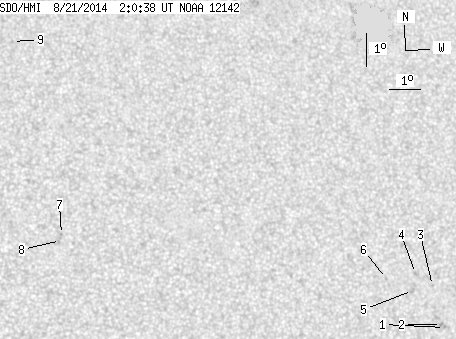

SDO HMI 2014-08-21 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.80 | 0.00 | 5.76 | 9.01 | 26.73 | 21.70 | 278.95 | 0.3733 | -285.4 | -354.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.39 | 6.90 | 30.34 | 25.31 | 271.54 | 0.4264 | -671.0 | -594.4 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 7.00 | 30.24 | 25.22 | 271.76 | 0.4249 | -931.0 | -747.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 8.20 | 30.02 | 24.99 | 274.60 | 0.4213 | -621.0 | -567.2 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 8.59 | 29.47 | 24.44 | 275.59 | 0.4128 | -906.0 | -674.1 | |
| 0.00 | 2.34 | 0.00 | 1.27 | 8.08 | 29.33 | 24.31 | 274.36 | 0.4105 | -642.0 | -615.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 8.49 | 28.49 | 23.46 | 275.43 | 0.3972 | -789.0 | -598.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.22 | 18.05 | 13.02 | 285.36 | 0.2310 | 718.0 | 584.4 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 10.04 | 18.01 | 12.98 | 284.63 | 0.2296 | 487.0 | 507.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 16.15 | 16.79 | 11.77 | 309.77 | 0.2560 | 786.0 | 607.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
