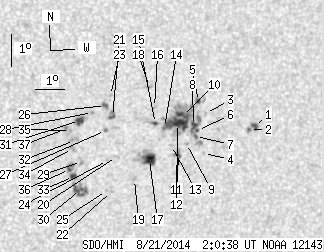

SDO HMI 2014-08-21 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.79 | 203.51 | 31.08 | 115.12 | -4.85 | 31.40 | 26.37 | 246.55 | 0.4844 | 307.3 | 131.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 6.03 | 1.26 | 3.52 | -4.73 | 35.00 | 29.98 | 249.56 | 0.5335 | 771.8 | 662.3 | |
| 0.63 | -1.00 | 0.37 | -1.00 | -4.81 | 34.83 | 29.81 | 249.29 | 0.5316 | 925.1 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -4.22 | 33.27 | 28.25 | 249.26 | 0.5067 | 464.0 | 392.1 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -5.46 | 33.26 | 28.23 | 247.00 | 0.5136 | 557.0 | 442.9 | |
| 1.53 | 90.76 | 0.87 | 51.77 | -3.83 | 33.02 | 27.99 | 249.80 | 0.5010 | 852.1 | 620.1 | |
| 0.81 | -5.00 | 0.46 | -5.00 | -4.73 | 33.02 | 27.99 | 248.14 | 0.5060 | 711.7 | 999999 | |
| 0.72 | -5.00 | 0.41 | -5.00 | -4.91 | 32.96 | 27.93 | 247.76 | 0.5062 | 819.4 | 999999 | |
| 3.51 | -5.00 | 2.01 | -5.00 | -4.57 | 32.87 | 27.85 | 248.33 | 0.5030 | 865.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -5.11 | 32.65 | 27.63 | 247.16 | 0.5032 | 569.0 | 475.3 | |
| 5.85 | -5.00 | 3.33 | -5.00 | -4.24 | 32.48 | 27.46 | 248.65 | 0.4957 | 991.7 | 999999 | |
| 1.26 | 4.86 | 0.72 | 2.78 | -5.47 | 32.40 | 27.37 | 246.30 | 0.5018 | 874.7 | 694.5 | |
| 17.36 | -5.00 | 9.88 | -5.00 | -4.47 | 32.32 | 27.29 | 248.08 | 0.4948 | 990.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -5.14 | 32.14 | 27.12 | 246.69 | 0.4963 | 211.0 | 166.1 | |
| 0.45 | -5.00 | 0.26 | -5.00 | -4.57 | 31.88 | 26.85 | 247.55 | 0.4892 | 941.8 | 999999 | |
| 1.08 | 3.51 | 0.61 | 1.98 | -4.43 | 31.57 | 26.54 | 247.56 | 0.4839 | 825.7 | 632.9 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -3.93 | 31.51 | 26.49 | 248.48 | 0.4803 | 775.0 | 636.7 | |
| 9.53 | 23.75 | 5.41 | 13.45 | -5.54 | 31.41 | 26.38 | 245.34 | 0.4886 | 883.5 | 336.8 | |
| 0.00 | 2.70 | 0.00 | 1.52 | -3.31 | 31.32 | 26.30 | 249.56 | 0.4740 | 782.0 | 634.2 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -6.13 | 30.93 | 25.90 | 243.81 | 0.4860 | 714.0 | 593.6 | |
| 0.00 | 1.98 | 0.00 | 1.11 | -5.38 | 30.28 | 25.26 | 244.63 | 0.4720 | 11.0 | -127.1 | |
| 1.26 | 5.76 | 0.70 | 3.21 | -4.13 | 30.10 | 25.07 | 246.91 | 0.4614 | -661.4 | -490.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -6.46 | 30.17 | 25.14 | 242.48 | 0.4779 | -559.0 | -457.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -3.48 | 30.01 | 24.99 | 248.15 | 0.4562 | -589.0 | -521.4 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -5.49 | 29.98 | 24.96 | 244.15 | 0.4686 | 583.0 | 448.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -6.42 | 30.00 | 24.97 | 242.39 | 0.4753 | -579.0 | -469.4 | |
| 1.17 | 3.42 | 0.65 | 1.90 | -3.78 | 29.85 | 24.83 | 247.40 | 0.4557 | -935.5 | -766.8 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -4.56 | 29.88 | 24.85 | 245.88 | 0.4610 | -764.0 | -614.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -3.98 | 29.42 | 24.40 | 246.63 | 0.4508 | -796.0 | -646.6 | |
| 0.00 | 2.70 | 0.00 | 1.50 | -5.48 | 29.11 | 24.09 | 243.34 | 0.4565 | -686.0 | -666.5 | |
| 0.00 | 15.74 | 0.00 | 8.79 | -6.35 | 29.12 | 24.09 | 241.66 | 0.4629 | -947.0 | -738.6 | |
| 4.32 | 7.56 | 2.39 | 4.18 | -4.20 | 29.00 | 23.97 | 245.78 | 0.4462 | -978.1 | -728.6 | |
| 0.00 | 4.86 | 0.00 | 2.69 | -4.81 | 28.85 | 23.83 | 244.40 | 0.4482 | -672.0 | -708.6 | |
| 2.34 | 9.18 | 1.30 | 5.10 | -5.93 | 28.86 | 23.84 | 242.20 | 0.4563 | -991.4 | -865.1 | |
| 0.00 | 3.06 | 0.00 | 1.69 | -5.06 | 28.79 | 23.77 | 243.85 | 0.4491 | -826.0 | -752.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -4.50 | 28.71 | 23.68 | 244.90 | 0.4440 | -902.0 | -768.7 | |
| 0.81 | -33.00 | 0.45 | -33.00 | -5.70 | 28.72 | 23.70 | 242.49 | 0.4527 | -1077.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -4.43 | 28.57 | 23.55 | 244.91 | 0.4417 | -952.0 | -774.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
