SDO HMI 2014-08-21 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.07 | 398.52 | 42.51 | 211.93 | 9.03 | 343.63 | -21.40 | 82.85 | 0.3647 | -630.0 | -369.4 | |
|
previous
or next observation for the same group /

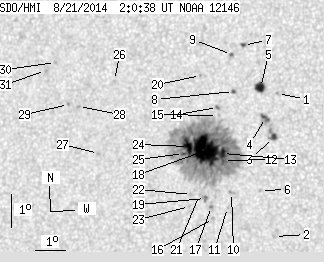

back to the solar disc SDO HMI 2014-08-21 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.43 | 10.76 | 345.84 | -19.19 | 77.13 | 0.3326 | -821.0 | -705.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 6.42 | 345.96 | -19.06 | 90.34 | 0.3260 | -655.0 | -609.3 | |
| 2.43 | 8.19 | 1.27 | 4.30 | 9.42 | 345.79 | -19.24 | 81.17 | 0.3303 | 1071.3 | 743.6 | |
| 2.70 | 7.83 | 1.42 | 4.11 | 10.02 | 345.49 | -19.53 | 79.49 | 0.3363 | 930.7 | 685.8 | |
| 6.84 | 8.91 | 3.60 | 4.69 | 10.92 | 345.27 | -19.75 | 76.95 | 0.3421 | 981.4 | 611.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 7.80 | 345.45 | -19.57 | 86.14 | 0.3341 | 629.0 | 438.9 | |
| 0.81 | 1.44 | 0.43 | 0.76 | 12.17 | 344.62 | -20.41 | 73.78 | 0.3565 | -813.2 | -754.8 | |
| 0.81 | 1.89 | 0.43 | 1.00 | 10.76 | 344.39 | -20.63 | 77.80 | 0.3557 | -913.4 | -722.6 | |
| 0.54 | 1.80 | 0.29 | 0.96 | 11.88 | 344.24 | -20.78 | 74.79 | 0.3614 | 877.2 | 641.1 | |
| 0.00 | 2.52 | 0.00 | 1.33 | 7.70 | 344.51 | -20.51 | 86.48 | 0.3495 | -880.0 | -656.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 7.24 | 344.40 | -20.62 | 87.80 | 0.3512 | -482.0 | -309.4 | |
| 0.27 | 341.64 | 0.14 | 181.74 | 8.66 | 344.20 | -20.83 | 83.78 | 0.3551 | -1227.0 | -458.8 | |
| 4.59 | -12.00 | 2.43 | -12.00 | 8.87 | 344.15 | -20.87 | 83.19 | 0.3561 | -1447.5 | 999999 | |
| 0.63 | 1.98 | 0.33 | 1.05 | 10.26 | 343.90 | -21.13 | 79.40 | 0.3624 | -900.9 | -664.1 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 10.01 | 343.92 | -21.11 | 80.06 | 0.3616 | -345.0 | -475.2 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 6.89 | 343.96 | -21.07 | 88.78 | 0.3585 | 815.0 | 630.0 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 7.25 | 343.88 | -21.15 | 87.76 | 0.3597 | 700.0 | 474.7 | |
| 49.56 | -12.00 | 26.36 | -12.00 | 8.94 | 343.59 | -21.44 | 83.11 | 0.3652 | -1401.2 | 999999 | |
| 0.63 | 2.79 | 0.33 | 1.48 | 7.48 | 343.67 | -21.36 | 87.11 | 0.3631 | -818.6 | -654.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 11.20 | 343.27 | -21.76 | 77.09 | 0.3747 | -795.0 | -687.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 7.59 | 343.47 | -21.56 | 86.80 | 0.3664 | -543.0 | -415.4 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 7.58 | 343.20 | -21.82 | 86.84 | 0.3706 | 136.0 | 114.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 7.22 | 343.16 | -21.87 | 87.83 | 0.3714 | 538.0 | 434.8 | |
| 8.73 | -12.00 | 4.66 | -12.00 | 9.03 | 343.02 | -22.00 | 82.95 | 0.3745 | -1062.2 | 999999 | |
| 1.53 | -12.00 | 0.82 | -12.00 | 8.81 | 342.87 | -22.16 | 83.56 | 0.3767 | -532.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 10.92 | 340.40 | -24.63 | 78.84 | 0.4188 | 654.0 | 572.9 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 8.68 | 340.03 | -25.00 | 84.24 | 0.4216 | 649.0 | 516.3 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 10.07 | 339.24 | -25.78 | 81.11 | 0.4353 | 815.0 | 713.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 10.12 | 338.89 | -26.13 | 81.08 | 0.4407 | 731.0 | 632.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 11.37 | 338.33 | -26.70 | 78.41 | 0.4515 | 886.0 | 724.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 11.11 | 338.01 | -27.02 | 79.07 | 0.4559 | 715.0 | 634.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
