SDO HMI 2014-08-21 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.17 | 223.23 | 30.81 | 126.78 | -4.80 | 31.31 | 26.84 | 247.00 | 0.4906 | 163.5 | 205.8 | |
|
previous
or next observation for the same group /

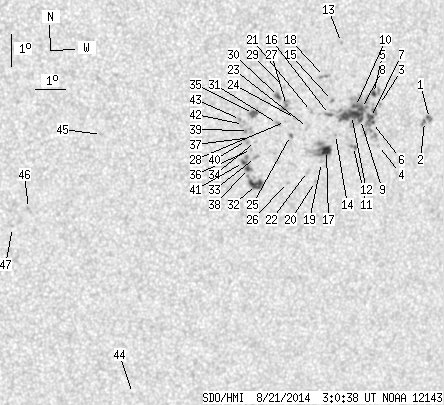

back to the solar disc SDO HMI 2014-08-21 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.53 | 3.51 | 0.90 | 2.06 | -4.74 | 35.06 | 30.58 | 249.94 | 0.5419 | 793.5 | 684.4 | |
| 0.45 | 2.52 | 0.26 | 1.48 | -4.82 | 34.88 | 30.41 | 249.68 | 0.5399 | 838.2 | 661.4 | |
| 0.00 | 1.80 | 0.00 | 1.04 | -4.19 | 33.28 | 28.80 | 249.70 | 0.5143 | 447.0 | 427.3 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -5.46 | 33.30 | 28.83 | 247.44 | 0.5218 | 575.0 | 419.2 | |
| 1.62 | 102.11 | 0.93 | 58.56 | -3.84 | 33.06 | 28.58 | 250.20 | 0.5093 | 798.1 | 612.7 | |
| 0.90 | -5.00 | 0.52 | -5.00 | -4.74 | 33.06 | 28.58 | 248.56 | 0.5143 | 655.9 | 999999 | |
| 3.42 | -5.00 | 1.97 | -5.00 | -4.58 | 32.98 | 28.51 | 248.79 | 0.5123 | 872.9 | 999999 | |
| 3.15 | -5.00 | 1.81 | -5.00 | -4.28 | 32.66 | 28.18 | 249.10 | 0.5061 | 917.4 | 999999 | |
| 1.80 | -5.00 | 1.03 | -5.00 | -4.62 | 32.64 | 28.16 | 248.47 | 0.5077 | 823.2 | 999999 | |
| 2.34 | -5.00 | 1.34 | -5.00 | -4.21 | 32.45 | 27.97 | 249.09 | 0.5028 | 1069.7 | 999999 | |
| 0.00 | 3.24 | 0.00 | 1.86 | -5.44 | 32.43 | 27.96 | 246.81 | 0.5097 | 909.0 | 760.4 | |
| 14.75 | -5.00 | 8.44 | -5.00 | -4.48 | 32.32 | 27.84 | 248.49 | 0.5025 | 1009.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -2.20 | 31.91 | 27.43 | 252.54 | 0.4846 | 670.0 | 575.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -5.03 | 31.79 | 27.32 | 247.05 | 0.4984 | 626.0 | 634.8 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -3.97 | 31.65 | 27.17 | 248.93 | 0.4902 | 948.0 | 729.1 | |
| 0.81 | -5.00 | 0.46 | -5.00 | -4.40 | 31.56 | 27.09 | 248.05 | 0.4914 | 892.3 | 999999 | |
| 7.11 | 24.11 | 4.05 | 13.72 | -5.51 | 31.51 | 27.03 | 245.94 | 0.4974 | 907.1 | 343.9 | |
| 0.00 | 3.87 | 0.00 | 2.18 | -3.22 | 31.35 | 26.88 | 250.16 | 0.4818 | 801.0 | 587.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -5.88 | 31.36 | 26.88 | 245.14 | 0.4976 | 650.0 | 530.9 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -6.46 | 31.18 | 26.70 | 243.93 | 0.4991 | 681.0 | 559.1 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -4.27 | 30.94 | 26.47 | 247.80 | 0.4820 | 525.0 | 417.1 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -6.13 | 30.89 | 26.41 | 244.27 | 0.4929 | 575.0 | 555.5 | |
| 0.00 | 2.61 | 0.00 | 1.47 | -4.76 | 30.83 | 26.35 | 246.77 | 0.4833 | -74.0 | -138.7 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -4.46 | 30.41 | 25.93 | 247.00 | 0.4755 | 183.0 | 212.7 | |
| 0.54 | 1.53 | 0.30 | 0.86 | -4.98 | 30.26 | 25.78 | 245.88 | 0.4767 | -679.2 | -547.1 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -6.44 | 30.23 | 25.75 | 243.11 | 0.4860 | -395.0 | -377.3 | |
| 0.00 | 9.09 | 0.00 | 5.09 | -4.04 | 30.09 | 25.61 | 247.55 | 0.4685 | -614.0 | -384.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -4.54 | 30.07 | 25.60 | 246.57 | 0.4713 | 216.0 | 156.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -3.48 | 30.00 | 25.53 | 248.59 | 0.4639 | -733.0 | -546.6 | |
| 1.53 | 3.42 | 0.85 | 1.91 | -3.75 | 29.81 | 25.33 | 247.90 | 0.4627 | -893.2 | -773.6 | |
| 0.00 | 2.25 | 0.00 | 1.26 | -4.58 | 29.80 | 25.33 | 246.24 | 0.4678 | -768.0 | -568.7 | |
| 7.92 | 12.32 | 4.44 | 6.91 | -6.44 | 29.18 | 24.70 | 242.09 | 0.4718 | -816.5 | -691.8 | |
| 0.00 | 2.88 | 0.00 | 1.61 | -5.60 | 29.11 | 24.63 | 243.62 | 0.4648 | -805.0 | -611.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -5.10 | 29.08 | 24.61 | 244.57 | 0.4611 | -396.0 | -406.2 | |
| 3.15 | 7.20 | 1.75 | 4.00 | -4.23 | 28.99 | 24.51 | 246.21 | 0.4540 | -985.8 | -717.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -5.34 | 28.96 | 24.48 | 243.98 | 0.4611 | -730.0 | -579.7 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -4.97 | 28.95 | 24.47 | 244.70 | 0.4583 | -323.0 | -274.3 | |
| 2.16 | 8.91 | 1.21 | 4.97 | -5.93 | 28.89 | 24.41 | 242.77 | 0.4641 | -986.8 | -826.5 | |
| 0.00 | 4.05 | 0.00 | 2.25 | -4.75 | 28.84 | 24.36 | 245.04 | 0.4553 | -775.0 | -713.6 | |
| 0.00 | 3.33 | 0.00 | 1.85 | -5.05 | 28.78 | 24.30 | 244.38 | 0.4566 | -870.0 | -766.1 | |
| 0.99 | -38.00 | 0.55 | -38.00 | -5.73 | 28.71 | 24.23 | 242.98 | 0.4603 | -979.4 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.25 | -4.55 | 28.66 | 24.19 | 245.26 | 0.4515 | -724.0 | -710.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -4.39 | 28.56 | 24.08 | 245.48 | 0.4490 | -930.0 | -783.5 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -12.87 | 25.48 | 21.01 | 226.60 | 0.4830 | -486.0 | -348.7 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -4.64 | 24.00 | 19.53 | 239.87 | 0.3869 | -803.0 | -634.9 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -6.85 | 21.73 | 17.25 | 231.71 | 0.3768 | -871.0 | -669.9 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -7.43 | 21.24 | 16.76 | 229.70 | 0.3766 | -361.0 | -423.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
