SDO HMI 2014-08-21 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.18 | 81.79 | 10.51 | 50.24 | -9.32 | 332.11 | -32.37 | 116.44 | 0.5915 | 635.0 | 402.7 | |
|
previous
or next observation for the same group /

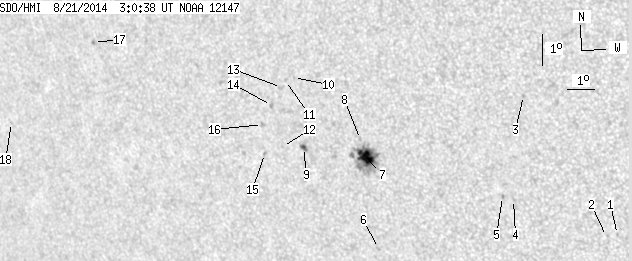

back to the solar disc SDO HMI 2014-08-21 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.56 | -11.48 | 341.22 | -23.26 | 128.32 | 0.4952 | 633.0 | 534.9 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -11.56 | 340.84 | -23.64 | 128.00 | 0.5005 | 636.0 | 605.8 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -7.24 | 338.36 | -26.12 | 118.00 | 0.4966 | 477.0 | 421.5 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -10.54 | 337.75 | -26.72 | 123.01 | 0.5293 | 738.0 | 491.3 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -10.47 | 337.38 | -27.10 | 122.53 | 0.5333 | 681.0 | 573.6 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -12.41 | 332.74 | -31.74 | 121.37 | 0.6039 | -748.0 | -728.7 | |
| 15.47 | 55.96 | 9.44 | 34.16 | -9.49 | 332.62 | -31.85 | 116.93 | 0.5860 | 1094.9 | 444.5 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -8.96 | 332.50 | -31.98 | 116.02 | 0.5844 | 221.0 | 188.1 | |
| 1.71 | 3.78 | 1.07 | 2.37 | -9.36 | 330.36 | -34.12 | 115.14 | 0.6135 | 912.2 | 694.6 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -7.17 | 330.21 | -34.27 | 111.72 | 0.6036 | 695.0 | 520.7 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -7.29 | 329.90 | -34.57 | 111.71 | 0.6081 | 657.0 | 581.2 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -9.38 | 329.57 | -34.90 | 114.65 | 0.6234 | 526.0 | 655.3 | |
| 0.00 | 2.88 | 0.00 | 1.80 | -7.52 | 329.73 | -34.74 | 111.96 | 0.6115 | 156.0 | 363.5 | |
| 0.00 | 2.79 | 0.00 | 1.76 | -8.11 | 329.30 | -35.18 | 112.60 | 0.6200 | 672.0 | 574.1 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -9.65 | 328.86 | -35.62 | 114.60 | 0.6337 | 650.0 | 528.5 | |
| 0.00 | 2.25 | 0.00 | 1.43 | -8.74 | 328.89 | -35.58 | 113.28 | 0.6284 | 667.0 | 534.0 | |
| 0.00 | 1.35 | 0.00 | 0.93 | -6.66 | 322.46 | -42.02 | 107.06 | 0.6977 | -605.0 | -491.5 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -9.50 | 318.56 | -45.92 | 109.17 | 0.7524 | -533.0 | -475.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
