SDO HMI 2014-08-21 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.45 | 41.85 | 7.50 | 31.84 | 15.79 | 53.52 | 49.59 | 285.02 | 0.7595 | -13.5 | 36.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

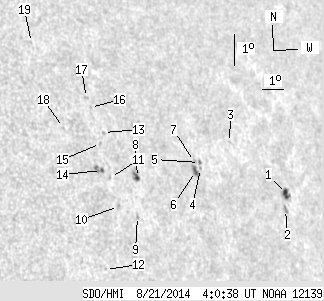

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.41 | 6.84 | 3.72 | 5.78 | 14.69 | 58.59 | 54.66 | 283.15 | 0.8125 | -661.7 | -442.4 | |
| 0.00 | 3.24 | 0.00 | 2.72 | 14.21 | 58.36 | 54.43 | 282.58 | 0.8101 | -581.0 | -514.1 | |
| 0.00 | 0.99 | 0.00 | 0.80 | 16.50 | 56.24 | 52.32 | 285.57 | 0.7899 | -404.0 | -398.5 | |
| 0.00 | 0.72 | 0.00 | 0.56 | 15.85 | 54.53 | 50.60 | 284.89 | 0.7714 | -478.0 | -445.1 | |
| 0.45 | 1.53 | 0.35 | 1.19 | 16.03 | 54.54 | 50.61 | 285.13 | 0.7717 | -524.6 | -468.6 | |
| 2.25 | 5.13 | 1.73 | 3.95 | 15.78 | 54.25 | 50.32 | 284.83 | 0.7684 | -765.8 | -685.9 | |
| 0.00 | 1.62 | 0.00 | 1.25 | 16.09 | 54.31 | 50.38 | 285.22 | 0.7693 | -854.0 | -738.7 | |
| 1.71 | 4.41 | 1.25 | 3.22 | 15.84 | 51.47 | 47.55 | 285.20 | 0.7378 | 624.7 | 495.2 | |
| 0.00 | 1.44 | 0.00 | 1.04 | 14.66 | 51.12 | 47.19 | 283.64 | 0.7327 | 568.0 | 474.5 | |
| 0.00 | 1.26 | 0.00 | 0.90 | 15.04 | 50.35 | 46.43 | 284.24 | 0.7241 | 461.0 | 381.7 | |
| 0.00 | 1.71 | 0.00 | 1.22 | 15.95 | 50.25 | 46.33 | 285.50 | 0.7240 | 547.0 | 394.2 | |
| 0.00 | 0.72 | 0.00 | 0.50 | 13.19 | 49.28 | 45.35 | 281.76 | 0.7098 | 457.0 | 440.4 | |
| 0.00 | 1.44 | 0.00 | 1.04 | 17.34 | 50.37 | 46.44 | 287.40 | 0.7272 | 541.0 | 418.3 | |
| 0.63 | 5.40 | 0.45 | 3.84 | 16.19 | 49.92 | 45.99 | 285.89 | 0.7204 | 650.3 | 656.9 | |
| 0.00 | 1.17 | 0.00 | 0.84 | 17.02 | 50.13 | 46.20 | 286.99 | 0.7240 | 477.0 | 355.2 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 18.15 | 50.04 | 46.12 | 288.56 | 0.7248 | 205.0 | 254.0 | |
| 0.00 | 1.62 | 0.00 | 1.16 | 18.47 | 49.97 | 46.04 | 289.02 | 0.7245 | 514.0 | 401.1 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 17.64 | 48.65 | 44.72 | 288.12 | 0.7078 | 536.0 | 402.1 | |
| 0.00 | 0.72 | 0.00 | 0.50 | 20.36 | 48.13 | 44.20 | 292.03 | 0.7074 | 464.0 | 417.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
