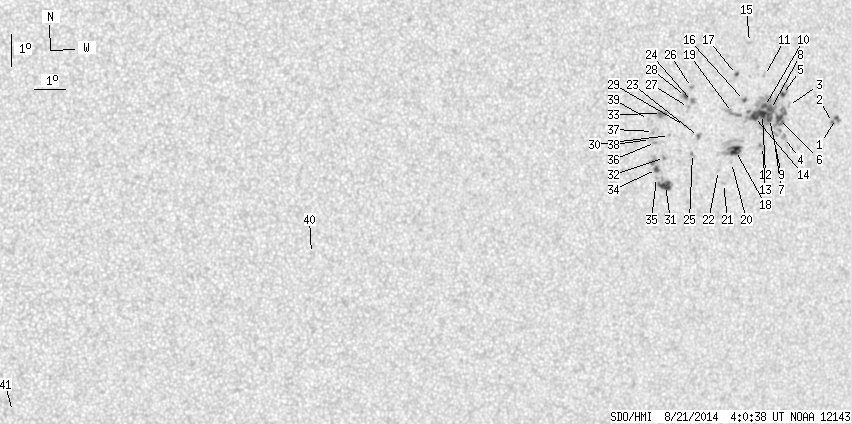

SDO HMI 2014-08-21 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.19 | 204.54 | 30.49 | 116.86 | -4.88 | 31.30 | 27.38 | 247.10 | 0.4995 | 261.4 | 234.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.53 | 5.67 | 0.91 | 3.35 | -4.74 | 35.04 | 31.11 | 250.28 | 0.5492 | 762.8 | 704.9 | |
| 0.72 | -1.00 | 0.43 | -1.00 | -4.85 | 34.91 | 30.98 | 249.99 | 0.5479 | 926.1 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.46 | -4.23 | 33.33 | 29.40 | 250.05 | 0.5228 | 401.0 | 360.6 | |
| 0.00 | 3.15 | 0.00 | 1.83 | -5.21 | 33.23 | 29.30 | 248.23 | 0.5269 | 653.0 | 570.0 | |
| 1.35 | 6.03 | 0.78 | 3.49 | -3.87 | 33.10 | 29.17 | 250.54 | 0.5179 | 795.1 | 555.9 | |
| 4.05 | 79.09 | 2.35 | 45.59 | -4.61 | 33.03 | 29.10 | 249.16 | 0.5207 | 852.3 | 608.9 | |
| 0.00 | 3.60 | 0.00 | 2.09 | -5.09 | 32.84 | 28.91 | 248.16 | 0.5209 | 834.0 | 690.8 | |
| 4.32 | -6.00 | 2.49 | -6.00 | -4.31 | 32.70 | 28.77 | 249.47 | 0.5146 | 888.2 | 999999 | |
| 3.24 | -6.00 | 1.87 | -6.00 | -4.59 | 32.68 | 28.75 | 248.95 | 0.5158 | 866.0 | 999999 | |
| 2.43 | -6.00 | 1.40 | -6.00 | -4.21 | 32.49 | 28.56 | 249.51 | 0.5110 | 1091.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -3.25 | 32.46 | 28.53 | 251.26 | 0.5055 | 758.0 | 462.0 | |
| 7.29 | -6.00 | 4.20 | -6.00 | -4.45 | 32.43 | 28.50 | 249.02 | 0.5115 | 1060.8 | 999999 | |
| 0.00 | 2.97 | 0.00 | 1.72 | -5.44 | 32.48 | 28.55 | 247.26 | 0.5179 | 896.0 | 766.3 | |
| 4.95 | -6.00 | 2.84 | -6.00 | -4.50 | 32.15 | 28.23 | 248.74 | 0.5079 | 965.0 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.28 | -2.20 | 31.91 | 27.98 | 252.90 | 0.4925 | 686.0 | 585.0 | |
| 0.90 | 2.34 | 0.51 | 1.34 | -3.98 | 31.79 | 27.86 | 249.43 | 0.5000 | 926.7 | 732.9 | |
| 0.81 | 2.34 | 0.46 | 1.33 | -3.16 | 31.49 | 27.56 | 250.76 | 0.4913 | 779.6 | 616.1 | |
| 8.28 | 23.93 | 4.75 | 13.70 | -5.51 | 31.54 | 27.62 | 246.41 | 0.5055 | 925.4 | 401.3 | |
| 0.00 | 7.65 | 0.00 | 4.36 | -4.33 | 31.39 | 27.46 | 248.48 | 0.4963 | 734.0 | 604.5 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -5.88 | 31.43 | 27.50 | 245.65 | 0.5061 | 667.0 | 515.7 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -6.52 | 31.19 | 27.26 | 244.31 | 0.5070 | 638.0 | 473.9 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -6.10 | 30.99 | 27.06 | 244.89 | 0.5016 | 693.0 | 629.6 | |
| 0.54 | 2.70 | 0.31 | 1.53 | -5.01 | 30.25 | 26.33 | 246.29 | 0.4845 | -705.8 | -511.9 | |
| 0.00 | 2.97 | 0.00 | 1.67 | -3.91 | 30.01 | 26.08 | 248.20 | 0.4744 | -860.0 | -673.6 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -5.52 | 30.07 | 26.15 | 245.16 | 0.4853 | 804.0 | 675.3 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -3.48 | 29.96 | 26.03 | 249.01 | 0.4712 | -713.0 | -646.0 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -4.09 | 29.88 | 25.95 | 247.74 | 0.4736 | -750.0 | -657.1 | |
| 1.53 | 4.05 | 0.86 | 2.27 | -3.74 | 29.77 | 25.84 | 248.33 | 0.4699 | -918.6 | -757.5 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -4.64 | 29.76 | 25.84 | 246.58 | 0.4753 | -703.0 | -577.6 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -4.92 | 29.27 | 25.34 | 245.60 | 0.4702 | -683.0 | -519.9 | |
| 7.11 | 12.69 | 4.01 | 7.15 | -6.47 | 29.21 | 25.28 | 242.60 | 0.4798 | -822.5 | -697.6 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -5.60 | 29.13 | 25.20 | 244.17 | 0.4727 | -703.0 | -599.3 | |
| 2.25 | 5.31 | 1.26 | 2.96 | -4.22 | 28.97 | 25.05 | 246.70 | 0.4616 | -977.0 | -779.0 | |
| 1.89 | 10.26 | 1.06 | 5.75 | -5.95 | 28.88 | 24.95 | 243.25 | 0.4717 | -987.5 | -873.8 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -6.20 | 28.89 | 24.96 | 242.79 | 0.4736 | -815.0 | -761.3 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -5.11 | 28.81 | 24.88 | 244.80 | 0.4650 | -856.0 | -773.7 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -4.77 | 28.72 | 24.80 | 245.40 | 0.4615 | -962.0 | -775.6 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -5.01 | 28.63 | 24.71 | 244.84 | 0.4619 | -675.0 | -517.4 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -4.39 | 28.54 | 24.62 | 245.99 | 0.4565 | -913.0 | -736.8 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -8.11 | 17.76 | 13.83 | 222.80 | 0.3499 | -7.0 | -5.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -12.94 | 8.54 | 4.61 | 193.01 | 0.3495 | -7.0 | 0.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
