SDO HMI 2014-08-21 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.10 | 37.71 | 6.60 | 29.54 | 15.39 | 54.38 | 51.00 | 284.38 | 0.7741 | -106.7 | -33.2 | |
|
previous
or next observation for the same group /

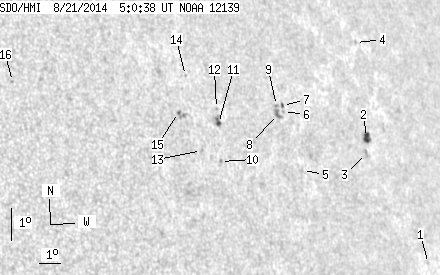

back to the solar disc SDO HMI 2014-08-21 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.97 | 10.60 | 60.65 | 57.27 | 278.16 | 0.8374 | -430.0 | -357.3 | |
| 4.77 | 7.11 | 4.08 | 6.08 | 14.70 | 58.55 | 55.17 | 283.15 | 0.8175 | -660.0 | -442.2 | |
| 0.00 | 2.79 | 0.00 | 2.38 | 14.22 | 58.37 | 54.99 | 282.57 | 0.8156 | -624.0 | -508.0 | |
| 0.00 | 1.17 | 0.00 | 1.02 | 17.61 | 59.17 | 55.79 | 286.66 | 0.8249 | -433.0 | -380.8 | |
| 0.00 | 1.08 | 0.00 | 0.85 | 14.02 | 54.93 | 51.55 | 282.46 | 0.7804 | 303.0 | 257.5 | |
| 0.00 | 0.90 | 0.00 | 0.71 | 15.88 | 54.60 | 51.22 | 284.88 | 0.7780 | -485.0 | -413.4 | |
| 0.54 | 1.44 | 0.42 | 1.13 | 16.07 | 54.61 | 51.23 | 285.12 | 0.7784 | -446.0 | -441.1 | |
| 1.08 | 5.04 | 0.84 | 3.93 | 15.82 | 54.27 | 50.89 | 284.83 | 0.7745 | -789.0 | -691.2 | |
| 0.00 | 1.53 | 0.00 | 1.19 | 16.10 | 54.32 | 50.94 | 285.18 | 0.7753 | -840.0 | -729.3 | |
| 0.00 | 1.35 | 0.00 | 0.99 | 14.64 | 51.13 | 47.75 | 283.56 | 0.7390 | 495.0 | 422.7 | |
| 1.35 | 5.31 | 1.00 | 3.92 | 15.80 | 51.39 | 48.01 | 285.09 | 0.7430 | 676.5 | 514.5 | |
| 0.00 | 1.17 | 0.00 | 0.86 | 16.26 | 51.44 | 48.06 | 285.71 | 0.7441 | 499.0 | 397.4 | |
| 0.00 | 1.35 | 0.00 | 0.98 | 15.05 | 50.37 | 46.99 | 284.19 | 0.7306 | 592.0 | 522.0 | |
| 0.00 | 0.81 | 0.00 | 0.59 | 17.39 | 50.36 | 46.98 | 287.38 | 0.7333 | 523.0 | 437.1 | |
| 0.36 | 4.68 | 0.26 | 3.36 | 16.29 | 49.68 | 46.30 | 285.98 | 0.7241 | 821.8 | 688.2 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 17.80 | 42.89 | 39.51 | 289.56 | 0.6451 | 585.0 | 508.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
