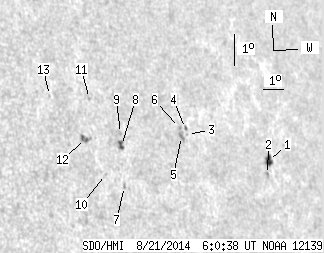

SDO HMI 2014-08-21 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.93 | 31.59 | 5.75 | 24.82 | 15.57 | 53.99 | 51.16 | 284.56 | 0.7761 | -68.3 | -17.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.77 | 6.93 | 4.14 | 6.01 | 14.71 | 58.56 | 55.72 | 283.14 | 0.8229 | -623.8 | -413.7 | |
| 0.00 | 1.98 | 0.00 | 1.71 | 14.29 | 58.34 | 55.51 | 282.64 | 0.8207 | -602.0 | -523.5 | |
| 0.00 | 0.45 | 0.00 | 0.36 | 15.89 | 54.66 | 51.83 | 284.84 | 0.7845 | -456.0 | -395.2 | |
| 0.00 | 1.35 | 0.00 | 1.07 | 16.08 | 54.63 | 51.80 | 285.08 | 0.7843 | -460.0 | -443.7 | |
| 0.00 | 4.50 | 0.00 | 3.56 | 15.86 | 54.34 | 51.51 | 284.82 | 0.7811 | -774.0 | -675.7 | |
| 0.00 | 1.44 | 0.00 | 1.14 | 16.14 | 54.34 | 51.51 | 285.18 | 0.7813 | -770.0 | -730.8 | |
| 0.00 | 1.44 | 0.00 | 1.07 | 14.60 | 51.13 | 48.30 | 283.45 | 0.7452 | 544.0 | 451.9 | |
| 2.16 | 4.50 | 1.61 | 3.35 | 15.85 | 51.38 | 48.55 | 285.10 | 0.7491 | 661.2 | 506.7 | |
| 0.00 | 1.26 | 0.00 | 0.94 | 16.21 | 51.45 | 48.62 | 285.58 | 0.7502 | 581.0 | 481.8 | |
| 0.00 | 0.90 | 0.00 | 0.66 | 15.03 | 50.37 | 47.54 | 284.11 | 0.7369 | 522.0 | 535.8 | |
| 0.00 | 1.08 | 0.00 | 0.79 | 17.40 | 50.38 | 47.54 | 287.31 | 0.7397 | 543.0 | 404.7 | |
| 0.00 | 5.04 | 0.00 | 3.65 | 16.20 | 49.79 | 46.96 | 285.77 | 0.7316 | 698.0 | 673.5 | |
| 0.00 | 0.72 | 0.00 | 0.51 | 17.65 | 48.60 | 45.77 | 287.94 | 0.7199 | 548.0 | 456.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
