SDO HMI 2014-08-21 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.42 | 429.33 | 43.69 | 225.17 | 9.10 | 343.66 | -19.17 | 82.14 | 0.3289 | -727.7 | -364.9 | |
|
previous
or next observation for the same group /

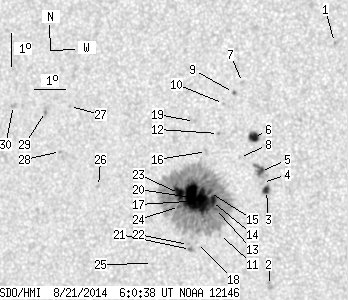

back to the solar disc SDO HMI 2014-08-21 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.42 | 13.86 | 347.79 | -15.04 | 63.61 | 0.2825 | -815.0 | -640.2 | |
| 0.00 | 4.68 | 0.00 | 2.42 | 6.41 | 346.11 | -16.73 | 90.72 | 0.2873 | -894.0 | -673.7 | |
| 3.51 | 5.22 | 1.82 | 2.70 | 9.29 | 345.86 | -16.97 | 80.79 | 0.2931 | 1094.6 | 802.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 9.53 | 345.72 | -17.11 | 80.04 | 0.2959 | 426.0 | 431.5 | |
| 2.97 | 12.24 | 1.54 | 6.35 | 9.86 | 345.64 | -17.19 | 78.97 | 0.2980 | 1059.5 | 745.6 | |
| 7.56 | 9.90 | 3.93 | 5.15 | 10.88 | 345.36 | -17.48 | 75.77 | 0.3056 | 990.6 | 519.7 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 12.54 | 344.89 | -17.94 | 70.94 | 0.3195 | -949.0 | -757.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 10.26 | 344.94 | -17.89 | 78.01 | 0.3104 | 541.0 | 350.7 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 12.23 | 344.62 | -18.21 | 72.11 | 0.3224 | -1047.0 | -884.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 11.88 | 344.32 | -18.52 | 73.37 | 0.3257 | 919.0 | 699.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 7.90 | 344.41 | -18.42 | 85.71 | 0.3152 | -661.0 | -474.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 10.96 | 344.21 | -18.62 | 76.21 | 0.3241 | -993.0 | -882.6 | |
| 1.44 | 369.57 | 0.75 | 193.84 | 8.68 | 344.25 | -18.59 | 83.26 | 0.3186 | -1264.1 | -438.1 | |
| 7.65 | -13.00 | 4.00 | -13.00 | 8.89 | 344.11 | -18.73 | 82.65 | 0.3212 | -1514.4 | 999999 | |
| 0.27 | -13.00 | 0.14 | -13.00 | 9.16 | 344.03 | -18.80 | 81.83 | 0.3229 | -1156.7 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.18 | 10.40 | 343.86 | -18.97 | 78.10 | 0.3282 | -868.0 | -687.0 | |
| 19.26 | -13.00 | 10.09 | -13.00 | 8.91 | 343.81 | -19.02 | 82.66 | 0.3260 | -1555.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 7.63 | 343.68 | -19.15 | 86.62 | 0.3271 | -89.0 | -126.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 11.30 | 343.41 | -19.43 | 75.67 | 0.3381 | -897.0 | -575.0 | |
| 30.59 | -13.00 | 16.06 | -13.00 | 8.99 | 343.45 | -19.38 | 82.52 | 0.3320 | -1373.1 | 999999 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 7.41 | 343.50 | -19.34 | 87.29 | 0.3301 | -819.0 | -722.6 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 7.56 | 343.43 | -19.41 | 86.84 | 0.3313 | -635.0 | -436.2 | |
| 9.00 | -13.00 | 4.74 | -13.00 | 9.10 | 343.05 | -19.78 | 82.30 | 0.3386 | -1120.0 | 999999 | |
| 1.17 | -13.00 | 0.62 | -13.00 | 8.70 | 343.08 | -19.76 | 83.46 | 0.3378 | -678.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 6.94 | 342.28 | -20.55 | 88.66 | 0.3501 | -2.0 | -0.6 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 9.20 | 340.38 | -22.45 | 82.60 | 0.3818 | 743.0 | 566.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 11.58 | 339.22 | -23.61 | 76.90 | 0.4045 | 795.0 | 587.0 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 10.20 | 339.03 | -23.80 | 80.35 | 0.4045 | 829.0 | 665.3 | |
| 0.00 | 2.43 | 0.00 | 1.32 | 11.39 | 338.43 | -24.41 | 77.65 | 0.4164 | 924.0 | 756.4 | |
| 0.00 | 3.33 | 0.00 | 1.83 | 11.52 | 337.32 | -25.51 | 77.72 | 0.4337 | 697.0 | 523.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
