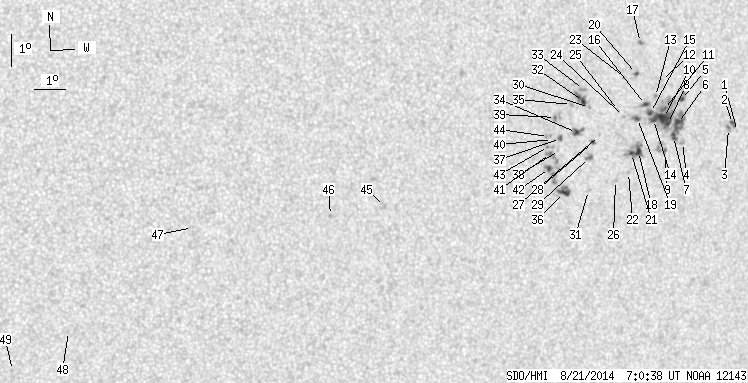

SDO HMI 2014-08-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.04 | 236.87 | 34.38 | 137.23 | -4.87 | 31.12 | 28.84 | 248.24 | 0.5193 | 226.4 | 138.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.16 | -5.06 | 35.33 | 33.04 | 250.92 | 0.5769 | 481.0 | 417.0 | |
| 1.44 | 3.33 | 0.87 | 2.01 | -4.79 | 35.13 | 32.84 | 251.23 | 0.5730 | 762.8 | 656.5 | |
| 0.00 | 2.61 | 0.00 | 1.57 | -4.94 | 34.99 | 32.71 | 250.91 | 0.5718 | 912.0 | 774.4 | |
| 0.00 | 2.61 | 0.00 | 1.55 | -5.27 | 33.36 | 31.07 | 249.35 | 0.5513 | 550.0 | 529.6 | |
| 1.53 | 4.59 | 0.90 | 2.70 | -3.93 | 33.26 | 30.97 | 251.59 | 0.5432 | 830.1 | 594.2 | |
| 5.76 | 93.14 | 3.40 | 54.68 | -4.66 | 33.15 | 30.86 | 250.25 | 0.5454 | 843.9 | 584.9 | |
| 2.88 | -6.00 | 1.70 | -6.00 | -5.06 | 33.03 | 30.74 | 249.49 | 0.5457 | 842.3 | 999999 | |
| 3.42 | -6.00 | 2.01 | -6.00 | -4.64 | 32.79 | 30.51 | 250.06 | 0.5403 | 865.6 | 999999 | |
| 0.63 | 7.38 | 0.37 | 4.34 | -5.47 | 32.73 | 30.44 | 248.58 | 0.5439 | 748.1 | 662.1 | |
| 12.24 | -6.00 | 7.18 | -6.00 | -4.45 | 32.64 | 30.36 | 250.30 | 0.5373 | 1011.0 | 999999 | |
| 1.89 | -6.00 | 1.11 | -6.00 | -4.20 | 32.63 | 30.35 | 250.73 | 0.5359 | 992.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -3.30 | 32.53 | 30.24 | 252.27 | 0.5300 | 841.0 | 646.8 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -3.78 | 32.33 | 30.05 | 251.28 | 0.5296 | 992.0 | 858.8 | |
| 2.88 | -6.00 | 1.68 | -6.00 | -4.49 | 32.29 | 30.01 | 250.00 | 0.5326 | 962.8 | 999999 | |
| 2.34 | -6.00 | 1.36 | -6.00 | -4.26 | 32.18 | 29.89 | 250.32 | 0.5299 | 747.7 | 999999 | |
| 1.62 | -6.00 | 0.94 | -6.00 | -4.00 | 31.99 | 29.70 | 250.66 | 0.5259 | 1003.2 | 999999 | |
| 0.45 | 2.61 | 0.26 | 1.50 | -2.08 | 31.76 | 29.47 | 254.04 | 0.5134 | 733.0 | 596.9 | |
| 3.06 | 20.61 | 1.79 | 12.01 | -5.45 | 31.81 | 29.53 | 247.98 | 0.5313 | 976.1 | 670.6 | |
| 1.53 | 4.14 | 0.89 | 2.40 | -4.42 | 31.73 | 29.44 | 249.74 | 0.5245 | 918.8 | 793.1 | |
| 0.90 | 2.16 | 0.52 | 1.25 | -3.03 | 31.64 | 29.36 | 252.21 | 0.5162 | 892.0 | 752.4 | |
| 1.98 | -18.00 | 1.15 | -18.00 | -5.49 | 31.57 | 29.28 | 247.72 | 0.5282 | 896.3 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -6.08 | 31.50 | 29.21 | 246.65 | 0.5306 | 707.0 | 479.0 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -3.12 | 31.23 | 28.94 | 251.77 | 0.5108 | -350.0 | -284.4 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -4.33 | 31.23 | 28.95 | 249.57 | 0.5171 | 448.0 | 413.3 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -4.13 | 31.05 | 28.77 | 249.80 | 0.5135 | -571.0 | -315.6 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -6.30 | 31.05 | 28.77 | 245.93 | 0.5260 | 553.0 | 503.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -4.87 | 30.42 | 28.14 | 248.00 | 0.5088 | -379.0 | -217.2 | |
| 1.08 | 2.52 | 0.62 | 1.45 | -5.07 | 30.19 | 27.91 | 247.45 | 0.5068 | -692.3 | -571.2 | |
| 0.00 | 3.60 | 0.00 | 2.07 | -5.53 | 30.11 | 27.83 | 246.55 | 0.5084 | 1034.0 | 857.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -3.98 | 30.04 | 27.76 | 249.36 | 0.4985 | -568.0 | -514.3 | |
| 0.00 | 1.80 | 0.00 | 1.04 | -6.56 | 30.13 | 27.85 | 244.74 | 0.5152 | -385.0 | -378.5 | |
| 2.34 | 8.82 | 1.33 | 5.01 | -3.78 | 29.83 | 27.55 | 249.57 | 0.4944 | -839.4 | -817.5 | |
| 0.00 | 2.79 | 0.00 | 1.59 | -3.41 | 29.82 | 27.53 | 250.27 | 0.4922 | -749.0 | -681.3 | |
| 2.25 | 8.10 | 1.28 | 4.62 | -4.73 | 29.63 | 27.34 | 247.64 | 0.4969 | -853.3 | -567.4 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -3.85 | 29.42 | 27.14 | 249.14 | 0.4890 | -891.0 | -747.8 | |
| 4.77 | 9.36 | 2.73 | 5.36 | -6.57 | 29.31 | 27.02 | 244.01 | 0.5041 | -828.7 | -719.4 | |
| 1.17 | 2.70 | 0.66 | 1.53 | -4.88 | 29.08 | 26.80 | 246.92 | 0.4903 | -813.0 | -650.1 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -5.25 | 29.07 | 26.78 | 246.21 | 0.4923 | -389.0 | -395.3 | |
| 0.36 | 5.04 | 0.20 | 2.85 | -4.22 | 28.89 | 26.60 | 248.02 | 0.4836 | -981.0 | -740.3 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -4.90 | 28.81 | 26.53 | 246.67 | 0.4866 | -378.0 | -542.6 | |
| 0.72 | 20.52 | 0.41 | 11.66 | -5.33 | 28.76 | 26.48 | 245.82 | 0.4886 | -930.0 | -740.0 | |
| 1.80 | -41.00 | 1.02 | -41.00 | -5.79 | 28.75 | 26.47 | 244.94 | 0.4914 | -971.5 | 999999 | |
| 0.00 | 4.32 | 0.00 | 2.45 | -5.11 | 28.69 | 26.40 | 246.17 | 0.4861 | -1007.0 | -778.0 | |
| 0.00 | 3.33 | 0.00 | 1.88 | -4.80 | 28.67 | 26.39 | 246.74 | 0.4840 | -673.0 | -782.4 | |
| 0.00 | 1.89 | 0.00 | 1.03 | -6.70 | 23.29 | 21.00 | 237.44 | 0.4241 | -656.0 | -610.0 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -6.90 | 21.54 | 19.25 | 234.67 | 0.4029 | -898.0 | -732.7 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -7.11 | 17.13 | 14.84 | 226.86 | 0.3499 | -9.0 | -10.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -10.28 | 13.33 | 11.05 | 212.74 | 0.3501 | -5.0 | 1.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -11.48 | 11.61 | 9.33 | 206.85 | 0.3533 | -742.0 | -596.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
