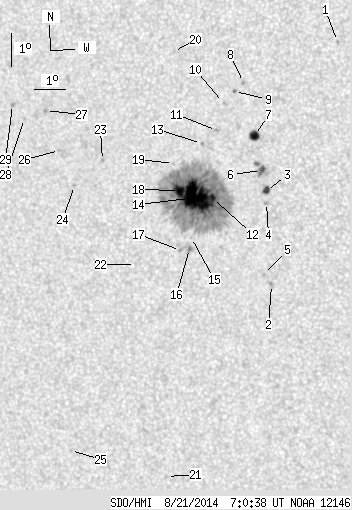

SDO HMI 2014-08-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.47 | 425.64 | 40.98 | 222.52 | 9.06 | 343.62 | -18.66 | 82.08 | 0.3208 | -650.4 | -378.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.56 | 13.84 | 347.89 | -14.39 | 62.72 | 0.2728 | -887.0 | -721.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 6.40 | 346.13 | -16.15 | 90.86 | 0.2777 | -1000.0 | -821.3 | |
| 3.51 | 5.22 | 1.81 | 2.70 | 9.24 | 345.86 | -16.42 | 80.71 | 0.2840 | 1061.9 | 648.3 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 8.88 | 345.88 | -16.41 | 81.99 | 0.2830 | 944.0 | 693.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 6.69 | 345.87 | -16.42 | 89.76 | 0.2819 | -872.0 | -712.2 | |
| 2.70 | 10.89 | 1.40 | 5.63 | 9.85 | 345.67 | -16.61 | 78.71 | 0.2885 | 1069.4 | 741.6 | |
| 6.57 | 9.09 | 3.41 | 4.71 | 10.90 | 345.39 | -16.89 | 75.32 | 0.2963 | 1011.8 | 581.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 12.50 | 344.93 | -17.35 | 70.55 | 0.3101 | -966.0 | -812.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 12.22 | 344.66 | -17.62 | 71.67 | 0.3131 | -902.0 | -785.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 11.87 | 344.33 | -17.96 | 73.00 | 0.3169 | 894.0 | 552.8 | |
| 0.00 | 2.25 | 0.00 | 1.17 | 11.01 | 344.15 | -18.13 | 75.78 | 0.3165 | -1120.0 | -756.8 | |
| 4.14 | 367.23 | 2.16 | 191.99 | 8.94 | 344.14 | -18.15 | 82.33 | 0.3118 | -1531.9 | -456.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 10.60 | 343.69 | -18.59 | 77.31 | 0.3227 | -866.0 | -786.5 | |
| 51.02 | -12.00 | 26.67 | -12.00 | 8.95 | 343.62 | -18.66 | 82.44 | 0.3203 | -1446.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 7.73 | 343.52 | -18.77 | 86.27 | 0.3209 | -591.0 | -424.9 | |
| 0.54 | 3.51 | 0.28 | 1.84 | 7.40 | 343.47 | -18.82 | 87.32 | 0.3216 | -798.8 | -445.7 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 7.33 | 343.18 | -19.10 | 87.54 | 0.3263 | 594.0 | 516.8 | |
| 8.46 | -12.00 | 4.44 | -12.00 | 9.15 | 343.06 | -19.23 | 82.00 | 0.3297 | -1124.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 9.96 | 342.82 | -19.47 | 79.64 | 0.3352 | -194.0 | -147.1 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 13.36 | 342.57 | -19.71 | 70.03 | 0.3507 | -422.0 | -221.0 | |
| 1.53 | 1.71 | 0.81 | 0.90 | 0.44 | 342.88 | -19.40 | 107.65 | 0.3501 | -46.4 | -24.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 6.85 | 341.74 | -20.55 | 88.92 | 0.3500 | -1.0 | -0.2 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 9.95 | 340.48 | -21.81 | 80.44 | 0.3726 | 857.0 | 686.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 9.15 | 339.60 | -22.68 | 82.75 | 0.3854 | 808.0 | 642.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 1.11 | 339.76 | -22.53 | 103.49 | 0.3956 | 712.0 | 527.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 10.19 | 339.03 | -23.26 | 80.23 | 0.3961 | 809.0 | 665.4 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 11.39 | 338.46 | -23.83 | 77.45 | 0.4075 | 934.0 | 733.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 11.11 | 337.77 | -24.52 | 78.35 | 0.4175 | 650.0 | 548.2 | |
| 0.00 | 2.25 | 0.00 | 1.23 | 11.51 | 337.32 | -24.96 | 77.54 | 0.4253 | 737.0 | 633.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
