SDO HMI 2014-08-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.93 | 97.01 | 9.48 | 58.33 | -9.53 | 332.10 | -30.19 | 118.58 | 0.5654 | 469.0 | 289.9 | |
|
previous
or next observation for the same group /

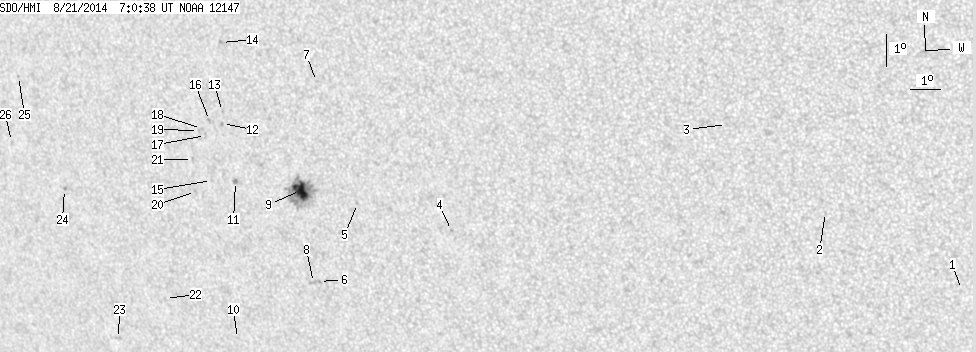

back to the solar disc SDO HMI 2014-08-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.24 | -11.78 | 354.27 | -8.02 | 156.84 | 0.3488 | 7.0 | 5.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -9.42 | 350.08 | -12.20 | 143.17 | 0.3494 | -3.0 | 8.6 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -6.74 | 347.05 | -15.23 | 131.62 | 0.3505 | -14.0 | -0.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -10.46 | 337.86 | -24.43 | 125.29 | 0.5002 | 907.0 | 720.3 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -9.77 | 334.69 | -27.59 | 120.93 | 0.5342 | 536.0 | 414.6 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -12.35 | 333.08 | -29.21 | 123.44 | 0.5734 | -769.0 | -618.9 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -6.01 | 333.55 | -28.73 | 113.60 | 0.5238 | 698.0 | 604.6 | |
| 0.00 | 3.42 | 0.00 | 2.07 | -12.39 | 332.86 | -29.43 | 123.31 | 0.5764 | -691.0 | -630.6 | |
| 15.93 | 63.17 | 9.48 | 37.63 | -9.48 | 332.72 | -29.57 | 118.71 | 0.5570 | 1118.4 | 400.5 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -14.39 | 329.80 | -32.49 | 123.55 | 0.6265 | -557.0 | -520.0 | |
| 0.00 | 2.79 | 0.00 | 1.70 | -9.34 | 330.40 | -31.88 | 116.67 | 0.5854 | 1034.0 | 766.2 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -7.53 | 330.10 | -32.18 | 113.64 | 0.5785 | 717.0 | 615.5 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -7.16 | 330.14 | -32.15 | 113.05 | 0.5760 | 801.0 | 588.0 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -5.00 | 330.25 | -32.04 | 109.60 | 0.5631 | 831.0 | 637.8 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -9.36 | 329.53 | -32.76 | 116.08 | 0.5966 | 755.0 | 528.2 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -7.47 | 329.64 | -32.65 | 113.22 | 0.5842 | 821.0 | 673.4 | |
| 0.00 | 1.98 | 0.00 | 1.21 | -7.95 | 329.45 | -32.84 | 113.85 | 0.5894 | 639.0 | 557.6 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -7.74 | 329.32 | -32.96 | 113.44 | 0.5898 | 645.0 | 536.4 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -7.81 | 329.21 | -33.08 | 113.47 | 0.5917 | 567.0 | 462.7 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -9.75 | 328.89 | -33.39 | 116.22 | 0.6068 | 672.0 | 499.1 | |
| 0.00 | 1.71 | 0.00 | 1.06 | -8.74 | 328.89 | -33.39 | 114.70 | 0.6009 | 662.0 | 526.4 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -13.27 | 327.27 | -35.01 | 120.11 | 0.6478 | -244.0 | -381.1 | |
| 0.00 | 2.61 | 0.00 | 1.76 | -14.72 | 325.18 | -37.10 | 120.60 | 0.6801 | -670.0 | -561.4 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -10.05 | 323.86 | -38.42 | 113.50 | 0.6695 | -684.0 | -647.9 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -6.62 | 322.46 | -39.83 | 107.95 | 0.6711 | -576.0 | -487.5 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -8.69 | 321.93 | -40.35 | 110.60 | 0.6860 | -516.0 | -327.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
