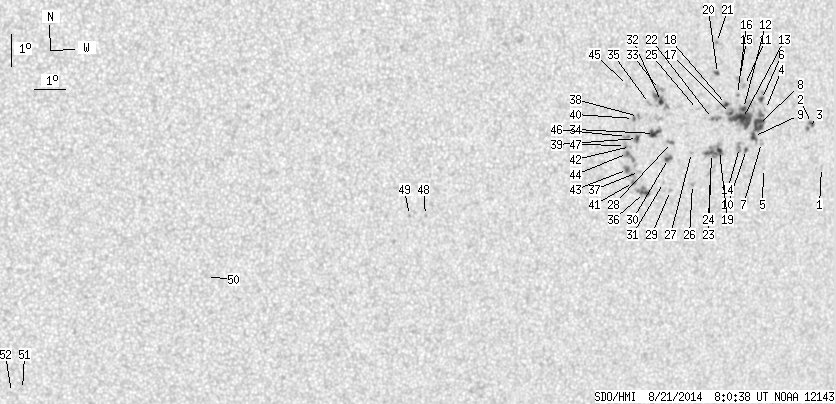

SDO HMI 2014-08-21 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.45 | 229.04 | 37.19 | 133.35 | -4.92 | 31.06 | 29.33 | 248.49 | 0.5264 | 219.9 | 95.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.05 | -6.20 | 35.62 | 33.89 | 249.57 | 0.5937 | 650.0 | 510.7 | |
| 1.62 | 4.68 | 0.98 | 2.84 | -4.80 | 35.17 | 33.43 | 251.55 | 0.5809 | 758.4 | 702.8 | |
| 0.54 | -2.00 | 0.33 | -2.00 | -4.95 | 35.03 | 33.29 | 251.24 | 0.5797 | 915.5 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -4.26 | 33.47 | 31.74 | 251.49 | 0.5553 | 461.0 | 388.0 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -6.09 | 33.50 | 31.77 | 248.43 | 0.5650 | 604.0 | 542.7 | |
| 1.53 | 5.22 | 0.91 | 3.09 | -3.94 | 33.32 | 31.58 | 251.94 | 0.5516 | 848.9 | 585.7 | |
| 0.00 | 3.42 | 0.00 | 2.04 | -5.27 | 33.38 | 31.65 | 249.71 | 0.5591 | 523.0 | 451.1 | |
| 9.27 | 67.40 | 5.51 | 39.84 | -4.71 | 33.25 | 31.51 | 250.58 | 0.5544 | 780.5 | 647.0 | |
| 2.79 | -8.00 | 1.66 | -8.00 | -5.07 | 33.08 | 31.35 | 249.87 | 0.5540 | 846.4 | 999999 | |
| 0.81 | 1.89 | 0.48 | 1.12 | -5.45 | 32.86 | 31.12 | 249.06 | 0.5530 | 661.3 | 517.9 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -3.47 | 32.69 | 30.96 | 252.40 | 0.5408 | 856.0 | 770.8 | |
| 1.80 | -8.00 | 1.06 | -8.00 | -4.17 | 32.69 | 30.95 | 251.15 | 0.5441 | 1010.4 | 999999 | |
| 18.09 | -8.00 | 10.67 | -8.00 | -4.48 | 32.66 | 30.93 | 250.60 | 0.5453 | 963.1 | 999999 | |
| 0.00 | 5.58 | 0.00 | 3.30 | -5.38 | 32.60 | 30.87 | 249.03 | 0.5491 | 881.0 | 688.1 | |
| 0.00 | 3.78 | 0.00 | 2.22 | -3.27 | 32.51 | 30.77 | 252.63 | 0.5373 | 660.0 | 544.7 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -3.73 | 32.45 | 30.72 | 251.79 | 0.5387 | 878.0 | 784.9 | |
| 1.08 | -8.00 | 0.63 | -8.00 | -4.30 | 32.23 | 30.49 | 250.65 | 0.5384 | 1025.7 | 999999 | |
| 1.62 | 5.58 | 0.95 | 3.26 | -4.01 | 32.08 | 30.34 | 251.05 | 0.5348 | 1000.9 | 740.3 | |
| 1.89 | 17.91 | 1.11 | 10.50 | -5.42 | 31.90 | 30.16 | 248.47 | 0.5398 | 999.3 | 718.2 | |
| 1.08 | 2.16 | 0.63 | 1.26 | -3.04 | 31.73 | 29.99 | 252.59 | 0.5252 | 922.1 | 743.9 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -2.08 | 31.67 | 29.93 | 254.30 | 0.5200 | 771.0 | 644.8 | |
| 0.36 | 5.22 | 0.21 | 3.05 | -4.42 | 31.60 | 29.86 | 250.03 | 0.5303 | 917.8 | 762.8 | |
| 3.42 | -19.00 | 2.00 | -19.00 | -5.50 | 31.62 | 29.88 | 248.14 | 0.5364 | 956.7 | 999999 | |
| 0.00 | 3.60 | 0.00 | 2.12 | -6.09 | 31.62 | 29.88 | 247.13 | 0.5397 | 773.0 | 511.0 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -4.10 | 31.06 | 29.33 | 250.23 | 0.5212 | -378.0 | -267.0 | |
| 0.00 | 2.16 | 0.00 | 1.26 | -6.43 | 31.01 | 29.27 | 246.10 | 0.5335 | 504.0 | 421.2 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -5.43 | 30.91 | 29.18 | 247.77 | 0.5263 | -671.0 | -459.2 | |
| 0.54 | 2.79 | 0.31 | 1.61 | -5.07 | 30.20 | 28.46 | 247.87 | 0.5145 | -765.3 | -580.6 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -6.57 | 30.25 | 28.51 | 245.26 | 0.5241 | -512.0 | -374.3 | |
| 2.16 | 6.03 | 1.25 | 3.48 | -5.56 | 30.12 | 28.38 | 246.93 | 0.5163 | 880.6 | 670.4 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -6.30 | 29.99 | 28.25 | 245.52 | 0.5190 | -486.0 | -392.8 | |
| 2.07 | 14.22 | 1.18 | 8.13 | -3.78 | 29.80 | 28.06 | 249.95 | 0.5017 | -859.1 | -693.5 | |
| 0.00 | 3.78 | 0.00 | 2.16 | -3.41 | 29.72 | 27.98 | 250.60 | 0.4986 | -681.0 | -640.2 | |
| 4.95 | 8.19 | 2.84 | 4.69 | -4.76 | 29.60 | 27.86 | 247.99 | 0.5043 | -814.6 | -547.9 | |
| 0.00 | 2.34 | 0.00 | 1.33 | -3.82 | 29.39 | 27.65 | 249.58 | 0.4961 | -887.0 | -760.8 | |
| 2.97 | 9.54 | 1.71 | 5.49 | -6.58 | 29.35 | 27.61 | 244.51 | 0.5121 | -882.1 | -718.7 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -5.91 | 29.14 | 27.40 | 245.52 | 0.5049 | -601.0 | -490.8 | |
| 0.00 | 2.07 | 0.00 | 1.18 | -4.20 | 29.02 | 27.29 | 248.59 | 0.4931 | -845.0 | -690.8 | |
| 1.44 | 4.50 | 0.82 | 2.57 | -4.88 | 29.02 | 27.28 | 247.32 | 0.4970 | -830.3 | -660.5 | |
| 0.54 | 1.89 | 0.31 | 1.07 | -4.25 | 28.86 | 27.12 | 248.37 | 0.4910 | -957.8 | -790.3 | |
| 0.72 | 11.07 | 0.41 | 6.33 | -6.24 | 28.95 | 27.21 | 244.77 | 0.5045 | -937.9 | -760.3 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -5.11 | 28.79 | 27.05 | 246.70 | 0.4952 | -750.0 | -698.8 | |
| 1.26 | -41.00 | 0.72 | -41.00 | -5.82 | 28.72 | 26.98 | 245.33 | 0.4987 | -965.5 | 999999 | |
| 0.90 | 7.83 | 0.51 | 4.46 | -5.33 | 28.69 | 26.96 | 246.23 | 0.4952 | -962.2 | -720.1 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -3.22 | 28.62 | 26.88 | 250.17 | 0.4818 | -706.0 | -491.1 | |
| 0.00 | 2.52 | 0.00 | 1.43 | -4.80 | 28.64 | 26.90 | 247.17 | 0.4912 | -829.0 | -847.1 | |
| 0.00 | 2.43 | 0.00 | 1.38 | -5.07 | 28.61 | 26.88 | 246.63 | 0.4925 | -958.0 | -884.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -6.92 | 22.03 | 20.29 | 236.09 | 0.4166 | -638.0 | -554.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -6.89 | 21.51 | 19.77 | 235.42 | 0.4096 | -858.0 | -709.8 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -8.57 | 15.08 | 13.35 | 220.89 | 0.3502 | 8.0 | -4.9 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -12.02 | 9.42 | 7.69 | 202.03 | 0.3503 | 9.0 | 6.5 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -12.11 | 9.08 | 7.34 | 201.04 | 0.3496 | -16.0 | -8.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
