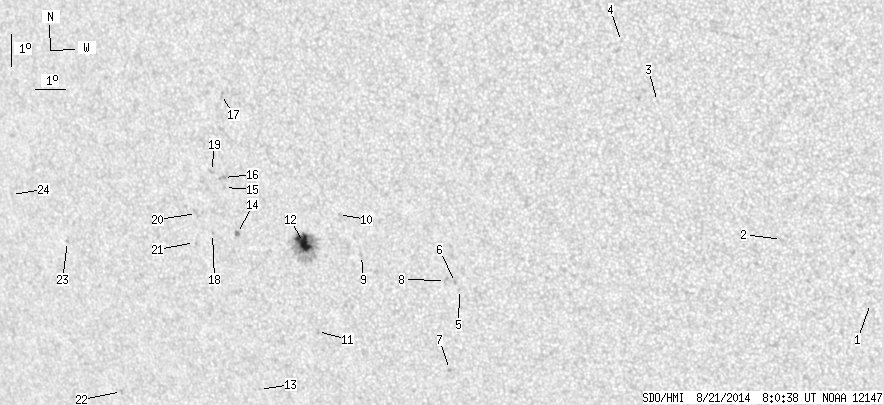

SDO HMI 2014-08-21 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.91 | 94.31 | 10.49 | 56.16 | -9.49 | 332.46 | -29.28 | 119.29 | 0.5538 | 501.6 | 354.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.14 | -10.65 | 351.31 | -10.42 | 149.31 | 0.3499 | -1.0 | -6.7 | |
| 1.80 | 1.98 | 0.95 | 1.05 | -8.69 | 348.59 | -13.15 | 139.76 | 0.3496 | -1.6 | 0.5 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -4.50 | 344.80 | -16.94 | 123.54 | 0.3500 | -3.0 | 2.0 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -2.69 | 343.69 | -18.05 | 117.45 | 0.3502 | -2.0 | -3.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -10.68 | 338.00 | -23.73 | 126.44 | 0.4936 | 788.0 | 656.6 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -10.46 | 337.89 | -23.85 | 125.95 | 0.4931 | 864.0 | 709.9 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -13.27 | 337.41 | -24.32 | 129.84 | 0.5241 | 716.0 | 631.9 | |
| 0.00 | 2.79 | 0.00 | 1.59 | -10.41 | 337.55 | -24.18 | 125.49 | 0.4968 | 602.0 | 539.4 | |
| 0.00 | 2.25 | 0.00 | 1.31 | -9.77 | 334.74 | -27.00 | 121.48 | 0.5267 | 531.0 | 423.4 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -8.52 | 334.05 | -27.69 | 118.76 | 0.5263 | 680.0 | 486.0 | |
| 0.00 | 1.98 | 0.00 | 1.19 | -12.29 | 332.93 | -28.81 | 123.72 | 0.5682 | -483.0 | -457.2 | |
| 16.11 | 57.14 | 9.54 | 33.85 | -9.47 | 332.74 | -29.00 | 119.19 | 0.5498 | 1079.9 | 398.1 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -14.31 | 330.56 | -31.18 | 124.52 | 0.6111 | -713.0 | -526.8 | |
| 0.00 | 2.97 | 0.00 | 1.80 | -9.33 | 330.40 | -31.34 | 117.08 | 0.5785 | 932.0 | 728.5 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -7.91 | 330.07 | -31.67 | 114.59 | 0.5740 | 743.0 | 621.7 | |
| 0.00 | 3.78 | 0.00 | 2.28 | -7.60 | 330.06 | -31.68 | 114.08 | 0.5723 | 823.0 | 597.5 | |
| 0.00 | 2.16 | 0.00 | 1.29 | -5.01 | 330.17 | -31.57 | 109.89 | 0.5567 | 620.0 | 631.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -9.39 | 329.49 | -32.25 | 116.49 | 0.5904 | 710.0 | 487.9 | |
| 0.00 | 2.34 | 0.00 | 1.42 | -7.44 | 329.64 | -32.10 | 113.53 | 0.5769 | 675.0 | 620.5 | |
| 0.00 | 3.60 | 0.00 | 2.21 | -8.80 | 328.97 | -32.77 | 115.20 | 0.5934 | 304.0 | 421.1 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -9.72 | 328.79 | -32.94 | 116.49 | 0.6011 | 354.0 | 445.2 | |
| 0.00 | 1.80 | 0.00 | 1.20 | -14.74 | 325.26 | -36.48 | 121.05 | 0.6733 | -839.0 | -633.5 | |
| 0.00 | 1.44 | 0.00 | 0.95 | -10.03 | 323.95 | -37.79 | 113.83 | 0.6619 | -769.0 | -619.1 | |
| 0.00 | 1.44 | 0.00 | 0.97 | -8.71 | 321.91 | -39.83 | 110.89 | 0.6799 | -535.0 | -378.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
