SDO HMI 2014-08-21 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.27 | 34.92 | 7.80 | 28.64 | 15.70 | 53.83 | 53.19 | 284.58 | 0.7971 | -23.5 | -26.2 | |
|
previous
or next observation for the same group /

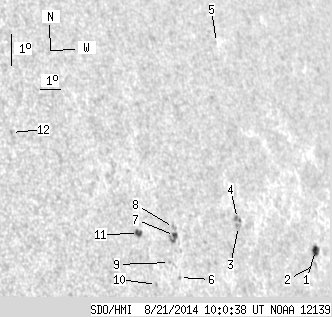

back to the solar disc SDO HMI 2014-08-21 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.77 | 7.02 | 4.37 | 6.43 | 14.73 | 58.56 | 57.92 | 283.10 | 0.8435 | -607.7 | -369.6 | |
| 0.00 | 2.34 | 0.00 | 2.13 | 14.31 | 58.39 | 57.75 | 282.61 | 0.8418 | -588.0 | -461.4 | |
| 0.00 | 3.15 | 0.00 | 2.63 | 15.86 | 54.67 | 54.03 | 284.64 | 0.8068 | -664.0 | -639.2 | |
| 0.00 | 3.60 | 0.00 | 3.01 | 16.11 | 54.71 | 54.07 | 284.95 | 0.8074 | -766.0 | -625.5 | |
| 0.00 | 0.72 | 0.00 | 0.63 | 21.53 | 56.18 | 55.54 | 291.43 | 0.8261 | -395.0 | -337.0 | |
| 0.00 | 1.17 | 0.00 | 0.90 | 14.60 | 51.17 | 50.53 | 283.29 | 0.7698 | 427.0 | 458.3 | |
| 1.89 | 6.84 | 1.47 | 5.31 | 15.89 | 51.35 | 50.71 | 284.94 | 0.7727 | 458.0 | 507.1 | |
| 0.00 | 2.34 | 0.00 | 1.82 | 16.14 | 51.39 | 50.75 | 285.26 | 0.7733 | 564.0 | 388.6 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 15.10 | 50.84 | 50.19 | 283.96 | 0.7665 | 497.0 | 419.8 | |
| 0.00 | 1.08 | 0.00 | 0.82 | 14.49 | 50.01 | 49.37 | 283.23 | 0.7571 | 590.0 | 530.8 | |
| 2.61 | 4.59 | 1.96 | 3.45 | 16.11 | 49.66 | 49.01 | 285.40 | 0.7545 | 736.4 | 579.5 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 19.67 | 44.96 | 44.32 | 291.06 | 0.7072 | 479.0 | 381.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
