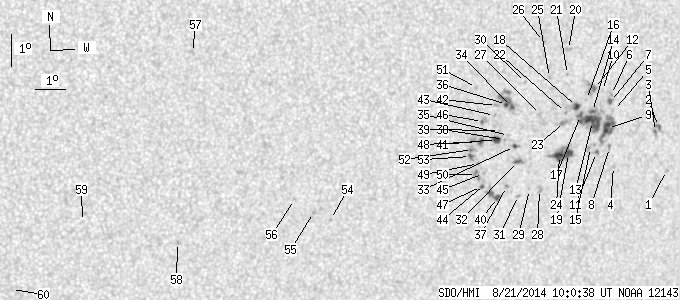

SDO HMI 2014-08-21 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.11 | 250.07 | 40.81 | 147.27 | -4.75 | 31.21 | 30.57 | 249.77 | 0.5418 | 215.8 | 120.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.78 | -6.22 | 35.60 | 34.96 | 250.17 | 0.6077 | 408.0 | 480.3 | |
| 0.90 | 3.87 | 0.55 | 2.38 | -4.83 | 35.21 | 34.57 | 252.14 | 0.5962 | 741.6 | 553.9 | |
| 0.45 | 2.79 | 0.28 | 1.72 | -4.97 | 35.11 | 34.47 | 251.85 | 0.5955 | 856.2 | 547.3 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -5.96 | 33.63 | 32.99 | 249.42 | 0.5806 | 708.0 | 579.8 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -4.22 | 33.53 | 32.89 | 252.22 | 0.5708 | 411.0 | 351.7 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -3.71 | 33.43 | 32.79 | 253.01 | 0.5673 | 671.0 | 609.9 | |
| 1.35 | 2.79 | 0.81 | 1.68 | -3.93 | 33.41 | 32.76 | 252.64 | 0.5679 | 886.8 | 697.2 | |
| 0.00 | 2.07 | 0.00 | 1.25 | -5.35 | 33.44 | 32.80 | 250.29 | 0.5751 | 594.0 | 469.8 | |
| 10.35 | 77.02 | 6.23 | 46.09 | -4.76 | 33.34 | 32.70 | 251.21 | 0.5708 | 741.6 | 654.9 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -3.57 | 33.10 | 32.46 | 253.08 | 0.5621 | 549.0 | 472.7 | |
| 0.00 | 3.06 | 0.00 | 1.84 | -5.48 | 32.98 | 32.34 | 249.81 | 0.5695 | 882.0 | 653.2 | |
| 0.99 | 9.18 | 0.59 | 5.46 | -3.49 | 32.81 | 32.17 | 253.05 | 0.5577 | 860.8 | 780.1 | |
| 17.18 | -9.00 | 10.27 | -9.00 | -4.50 | 32.78 | 32.14 | 251.31 | 0.5620 | 937.2 | 999999 | |
| 1.35 | -9.00 | 0.81 | -9.00 | -4.20 | 32.77 | 32.13 | 251.83 | 0.5604 | 1005.0 | 999999 | |
| 0.00 | 4.23 | 0.00 | 2.54 | -5.31 | 32.75 | 32.11 | 249.95 | 0.5656 | 737.0 | 654.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -3.81 | 32.53 | 31.89 | 252.35 | 0.5554 | 869.0 | 688.5 | |
| 1.53 | -9.00 | 0.91 | -9.00 | -4.29 | 32.34 | 31.70 | 251.41 | 0.5550 | 1028.9 | 999999 | |
| 3.06 | -9.00 | 1.81 | -9.00 | -4.00 | 32.18 | 31.54 | 251.81 | 0.5514 | 1073.8 | 999999 | |
| 5.31 | 23.84 | 3.16 | 14.15 | -5.44 | 31.97 | 31.33 | 249.23 | 0.5557 | 1021.5 | 679.2 | |
| 0.00 | 2.88 | 0.00 | 1.69 | -2.23 | 31.84 | 31.20 | 254.74 | 0.5387 | 700.0 | 577.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -2.99 | 31.83 | 31.19 | 253.37 | 0.5418 | 872.0 | 746.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -4.16 | 31.80 | 31.16 | 251.31 | 0.5469 | 798.0 | 809.3 | |
| 0.00 | 8.37 | 0.00 | 4.95 | -4.47 | 31.78 | 31.14 | 250.76 | 0.5481 | 963.0 | 685.4 | |
| 8.10 | -19.00 | 4.80 | -19.00 | -5.48 | 31.65 | 31.01 | 248.95 | 0.5516 | 928.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -3.04 | 31.19 | 30.55 | 252.91 | 0.5331 | -297.0 | -281.2 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -1.92 | 30.95 | 30.31 | 254.81 | 0.5247 | 726.0 | 629.1 | |
| 0.00 | 2.79 | 0.00 | 1.63 | -4.17 | 30.91 | 30.27 | 250.74 | 0.5347 | -382.0 | -173.2 | |
| 0.00 | 3.78 | 0.00 | 2.24 | -6.50 | 31.00 | 30.36 | 246.79 | 0.5486 | 95.0 | 159.4 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -6.48 | 30.65 | 30.01 | 246.57 | 0.5437 | -622.0 | -455.9 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -3.15 | 30.35 | 29.71 | 252.22 | 0.5217 | -572.0 | -408.9 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -6.64 | 30.27 | 29.63 | 246.01 | 0.5396 | -218.0 | -301.8 | |
| 1.62 | 3.96 | 0.95 | 2.31 | -5.58 | 30.17 | 29.53 | 247.77 | 0.5320 | 936.9 | 773.3 | |
| 1.17 | 3.69 | 0.68 | 2.15 | -5.10 | 30.04 | 29.40 | 248.50 | 0.5276 | -734.8 | -585.2 | |
| 1.53 | 19.97 | 0.89 | 11.53 | -3.86 | 29.88 | 29.24 | 250.63 | 0.5187 | -658.7 | -627.6 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -4.75 | 29.82 | 29.18 | 248.97 | 0.5225 | -525.0 | -341.1 | |
| 1.44 | -34.00 | 0.83 | -34.00 | -3.78 | 29.71 | 29.07 | 250.64 | 0.5158 | -834.8 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -6.33 | 29.83 | 29.19 | 246.20 | 0.5318 | -663.0 | -563.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -4.86 | 29.68 | 29.04 | 248.67 | 0.5213 | -531.0 | -462.0 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -4.57 | 29.49 | 28.85 | 249.06 | 0.5171 | 70.0 | -56.4 | |
| 1.98 | 9.63 | 1.15 | 5.60 | -6.66 | 29.54 | 28.90 | 245.42 | 0.5299 | -741.5 | -715.0 | |
| 3.60 | 5.49 | 2.08 | 3.17 | -4.85 | 29.40 | 28.76 | 248.50 | 0.5173 | -870.8 | -617.4 | |
| 0.00 | 1.89 | 0.00 | 1.09 | -3.79 | 29.36 | 28.72 | 250.39 | 0.5110 | -878.0 | -746.4 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -4.10 | 29.30 | 28.66 | 249.79 | 0.5118 | -587.0 | -519.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -6.22 | 29.06 | 28.42 | 245.79 | 0.5207 | -698.0 | -636.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -5.88 | 29.00 | 28.36 | 246.36 | 0.5179 | -692.0 | -556.2 | |
| 0.45 | 3.60 | 0.26 | 2.07 | -4.26 | 28.89 | 28.25 | 249.20 | 0.5069 | -967.8 | -802.0 | |
| 0.81 | 1.62 | 0.47 | 0.94 | -6.28 | 28.96 | 28.31 | 245.61 | 0.5197 | -763.8 | -679.6 | |
| 2.07 | 9.54 | 1.19 | 5.48 | -4.88 | 28.88 | 28.24 | 248.06 | 0.5103 | -871.1 | -766.6 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -5.56 | 28.81 | 28.17 | 246.78 | 0.5133 | -929.0 | -739.2 | |
| 0.00 | 4.32 | 0.00 | 2.49 | -5.89 | 28.76 | 28.12 | 246.14 | 0.5147 | -929.0 | -822.5 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -3.20 | 28.65 | 28.01 | 251.02 | 0.4978 | -719.0 | -596.7 | |
| 0.00 | 4.05 | 0.00 | 2.32 | -5.11 | 28.58 | 27.94 | 247.41 | 0.5075 | -946.0 | -779.5 | |
| 0.99 | 3.69 | 0.57 | 2.12 | -5.32 | 28.52 | 27.88 | 246.98 | 0.5079 | -930.0 | -696.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -7.03 | 23.87 | 23.23 | 239.44 | 0.4564 | -646.0 | -543.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -6.78 | 23.29 | 22.65 | 239.27 | 0.4467 | -923.0 | -791.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -6.35 | 22.64 | 22.00 | 239.37 | 0.4345 | -772.0 | -598.9 | |
| 2.88 | 2.97 | 1.52 | 1.57 | -1.66 | 19.21 | 18.57 | 245.88 | 0.3504 | -0.8 | 5.0 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -7.52 | 18.88 | 18.24 | 231.93 | 0.3959 | -755.0 | -615.1 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -6.75 | 15.82 | 15.18 | 228.27 | 0.3500 | -11.0 | -6.7 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -8.82 | 13.65 | 13.01 | 219.70 | 0.3497 | 5.0 | -0.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
