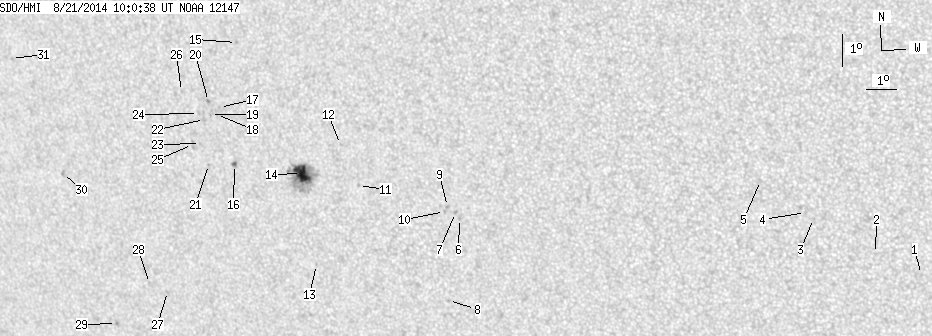

SDO HMI 2014-08-21 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.25 | 94.57 | 11.29 | 55.60 | -9.61 | 332.89 | -27.75 | 121.24 | 0.5363 | 499.6 | 297.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.14 | -11.95 | 352.84 | -7.80 | 157.58 | 0.3498 | 13.0 | -3.7 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.30 | 351.42 | -9.22 | 153.17 | 0.3498 | 0.0 | -0.2 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -10.22 | 349.51 | -11.13 | 146.97 | 0.3501 | 27.0 | 9.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -10.04 | 349.27 | -11.37 | 146.11 | 0.3498 | 12.0 | 5.6 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -9.06 | 347.89 | -12.75 | 141.30 | 0.3502 | 20.0 | 6.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -10.63 | 338.05 | -22.59 | 127.73 | 0.4792 | 758.0 | 612.5 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -10.44 | 337.94 | -22.70 | 127.28 | 0.4790 | 961.0 | 797.4 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -13.28 | 337.44 | -23.20 | 131.19 | 0.5115 | 762.0 | 645.9 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -10.26 | 337.68 | -22.96 | 126.67 | 0.4804 | 838.0 | 617.4 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -10.43 | 337.57 | -23.07 | 126.81 | 0.4833 | 662.0 | 579.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -9.75 | 334.71 | -25.93 | 122.50 | 0.5130 | 688.0 | 544.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -8.48 | 334.19 | -26.45 | 119.86 | 0.5099 | 642.0 | 503.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -12.36 | 332.99 | -27.65 | 124.92 | 0.5550 | -651.0 | -574.6 | |
| 18.26 | 56.32 | 10.70 | 33.01 | -9.48 | 332.76 | -27.88 | 120.18 | 0.5356 | 1023.9 | 352.2 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -5.49 | 330.79 | -29.85 | 111.86 | 0.5360 | 791.0 | 617.6 | |
| 0.99 | 2.79 | 0.59 | 1.67 | -9.33 | 330.42 | -30.22 | 117.94 | 0.5644 | 807.6 | 619.5 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -7.56 | 330.04 | -30.60 | 114.81 | 0.5580 | 688.0 | 560.6 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -7.79 | 329.92 | -30.72 | 115.08 | 0.5610 | 736.0 | 730.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -7.80 | 329.70 | -30.94 | 114.94 | 0.5639 | 687.0 | 662.7 | |
| 0.00 | 1.53 | 0.00 | 0.91 | -7.40 | 329.66 | -30.98 | 114.26 | 0.5620 | 883.0 | 701.7 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -9.39 | 329.48 | -31.16 | 117.29 | 0.5766 | 654.0 | 575.1 | |
| 0.00 | 2.16 | 0.00 | 1.30 | -7.98 | 329.47 | -31.17 | 115.05 | 0.5679 | 422.0 | 480.8 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -8.74 | 329.26 | -31.38 | 116.11 | 0.5754 | 708.0 | 655.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -7.80 | 329.27 | -31.37 | 114.62 | 0.5695 | 619.0 | 494.1 | |
| 0.00 | 3.06 | 0.00 | 1.86 | -8.79 | 328.96 | -31.68 | 115.97 | 0.5794 | 360.0 | 471.1 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -7.15 | 328.71 | -31.93 | 113.18 | 0.5730 | 564.0 | 469.4 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -13.57 | 327.43 | -33.21 | 121.85 | 0.6290 | -523.0 | -533.5 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -13.36 | 326.79 | -33.85 | 121.07 | 0.6349 | -338.0 | -354.0 | |
| 0.00 | 1.53 | 0.00 | 1.01 | -14.76 | 325.29 | -35.35 | 121.86 | 0.6610 | -773.0 | -606.9 | |
| 0.00 | 1.89 | 0.00 | 1.23 | -10.05 | 323.98 | -36.67 | 114.52 | 0.6485 | -787.0 | -574.2 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -6.56 | 322.40 | -38.24 | 108.62 | 0.6512 | -726.0 | -539.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
