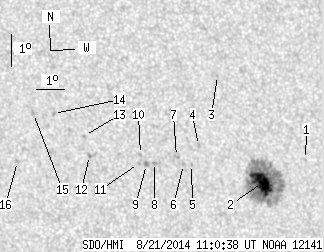

SDO HMI 2014-08-21 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.44 | 152.94 | 15.61 | 86.65 | 16.38 | 28.04 | 27.94 | 291.74 | 0.4858 | -775.1 | -359.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.78 | 16.81 | 30.32 | 30.23 | 291.27 | 0.5193 | -665.0 | -519.9 | |
| 27.44 | 129.72 | 15.61 | 73.85 | 16.19 | 28.66 | 28.56 | 290.92 | 0.4936 | -1184.3 | -373.6 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 19.57 | 27.62 | 27.52 | 298.07 | 0.4954 | -655.0 | -518.4 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 17.45 | 26.57 | 26.48 | 294.65 | 0.4698 | -633.0 | -614.0 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 16.88 | 26.23 | 26.14 | 293.70 | 0.4623 | -754.0 | -668.0 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 16.90 | 25.95 | 25.86 | 293.92 | 0.4584 | -789.0 | -628.2 | |
| 0.00 | 2.34 | 0.00 | 1.30 | 17.15 | 25.74 | 25.65 | 294.59 | 0.4568 | -831.0 | -672.8 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 17.01 | 24.95 | 24.86 | 294.85 | 0.4448 | -849.0 | -709.1 | |
| 0.00 | 2.79 | 0.00 | 1.54 | 16.96 | 24.66 | 24.57 | 294.96 | 0.4405 | -990.0 | -787.8 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 17.28 | 24.50 | 24.41 | 295.76 | 0.4399 | -706.0 | -522.4 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 17.01 | 24.39 | 24.30 | 295.26 | 0.4369 | -731.0 | -675.4 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 17.33 | 22.74 | 22.64 | 297.32 | 0.4154 | -787.0 | -670.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 17.95 | 22.65 | 22.56 | 298.78 | 0.4181 | 786.0 | 613.4 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 18.68 | 21.68 | 21.58 | 301.33 | 0.4097 | 671.0 | 611.9 | |
| 0.00 | 1.89 | 0.00 | 1.02 | 18.71 | 20.99 | 20.90 | 302.12 | 0.4007 | 893.0 | 679.8 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 17.25 | 20.27 | 20.18 | 299.55 | 0.3803 | 801.0 | 691.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
