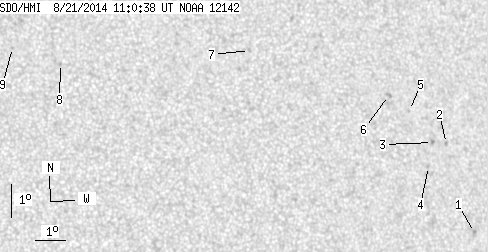

SDO HMI 2014-08-21 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.86 | 0.00 | 7.76 | 7.63 | 27.47 | 27.38 | 274.18 | 0.4583 | -268.7 | -313.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.26 | 4.19 | 31.76 | 31.67 | 266.78 | 0.5265 | -783.0 | -603.7 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 6.95 | 30.92 | 30.83 | 271.99 | 0.5111 | -788.0 | -674.7 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 7.01 | 30.43 | 30.34 | 272.08 | 0.5037 | -933.0 | -813.8 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 6.29 | 30.24 | 30.15 | 270.63 | 0.5012 | -727.0 | -600.8 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 8.03 | 29.70 | 29.61 | 274.11 | 0.4924 | -736.0 | -643.0 | |
| 0.00 | 2.16 | 0.00 | 1.22 | 8.52 | 29.00 | 28.91 | 275.15 | 0.4819 | -730.0 | -710.3 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 10.14 | 24.35 | 24.26 | 279.41 | 0.4117 | 787.0 | 582.2 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 10.02 | 18.09 | 18.00 | 281.20 | 0.3116 | 670.0 | 549.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 10.56 | 16.57 | 16.48 | 283.85 | 0.2885 | 822.0 | 711.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
