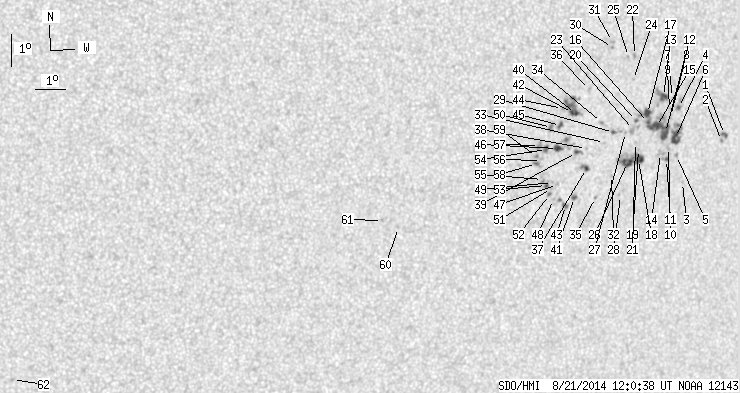

SDO HMI 2014-08-21 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.47 | 248.04 | 41.66 | 147.79 | -4.76 | 31.22 | 31.68 | 250.46 | 0.5574 | 262.9 | 137.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 3.24 | 0.90 | 2.02 | -4.88 | 35.23 | 35.69 | 252.65 | 0.6112 | 732.9 | 636.9 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -5.05 | 35.13 | 35.59 | 252.32 | 0.6106 | 737.0 | 654.5 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -6.26 | 33.76 | 34.22 | 249.68 | 0.5983 | 583.0 | 472.4 | |
| 0.90 | 4.14 | 0.55 | 2.52 | -3.92 | 33.47 | 33.93 | 253.28 | 0.5836 | 848.0 | 587.7 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -5.40 | 33.48 | 33.94 | 250.88 | 0.5904 | 599.0 | 535.9 | |
| 8.19 | 66.83 | 5.00 | 40.50 | -4.84 | 33.41 | 33.87 | 251.75 | 0.5869 | 716.7 | 675.1 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -3.59 | 33.24 | 33.69 | 253.70 | 0.5791 | 257.0 | 374.8 | |
| 0.00 | 2.16 | 0.00 | 1.31 | -4.18 | 33.19 | 33.65 | 252.71 | 0.5809 | 697.0 | 587.8 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -3.92 | 33.14 | 33.60 | 253.10 | 0.5792 | 479.0 | 436.4 | |
| 0.00 | 2.25 | 0.00 | 1.37 | -5.13 | 33.17 | 33.63 | 251.14 | 0.5850 | 784.0 | 692.0 | |
| 0.63 | 1.89 | 0.38 | 1.15 | -5.50 | 33.12 | 33.57 | 250.51 | 0.5861 | 711.0 | 637.5 | |
| 7.02 | -6.00 | 4.26 | -6.00 | -4.66 | 33.03 | 33.49 | 251.83 | 0.5810 | 862.6 | 999999 | |
| 3.78 | 11.60 | 2.28 | 7.00 | -3.54 | 32.90 | 33.36 | 253.61 | 0.5743 | 912.4 | 758.4 | |
| 0.00 | 4.32 | 0.00 | 2.63 | -5.30 | 32.88 | 33.34 | 250.70 | 0.5820 | 735.0 | 533.8 | |
| 9.35 | -6.00 | 5.66 | -6.00 | -4.45 | 32.69 | 33.15 | 251.98 | 0.5755 | 957.1 | 999999 | |
| 1.26 | -6.00 | 0.76 | -6.00 | -4.31 | 32.39 | 32.85 | 252.06 | 0.5708 | 1016.6 | 999999 | |
| 4.05 | -6.00 | 2.43 | -6.00 | -4.02 | 32.34 | 32.80 | 252.50 | 0.5688 | 1055.4 | 999999 | |
| 6.39 | 28.06 | 3.85 | 16.86 | -5.43 | 32.09 | 32.55 | 250.02 | 0.5721 | 962.6 | 699.2 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -5.12 | 32.07 | 32.53 | 250.52 | 0.5703 | 833.0 | 742.1 | |
| 0.54 | -6.00 | 0.32 | -6.00 | -4.21 | 31.95 | 32.41 | 251.96 | 0.5644 | 1039.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -4.89 | 31.95 | 32.41 | 250.82 | 0.5676 | 540.0 | 296.5 | |
| 0.00 | 1.80 | 0.00 | 1.07 | -2.20 | 31.81 | 32.27 | 255.33 | 0.5536 | 755.0 | 637.3 | |
| 0.00 | 5.76 | 0.00 | 3.45 | -4.49 | 31.86 | 32.32 | 251.45 | 0.5643 | 887.0 | 714.6 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -2.94 | 31.80 | 32.26 | 254.04 | 0.5565 | 684.0 | 532.3 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -2.22 | 31.60 | 32.06 | 255.19 | 0.5507 | 807.0 | 681.4 | |
| 7.47 | -18.00 | 4.48 | -18.00 | -5.50 | 31.70 | 32.16 | 249.66 | 0.5671 | 918.0 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -4.56 | 31.57 | 32.03 | 251.16 | 0.5608 | 637.0 | 523.4 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -6.51 | 31.51 | 31.97 | 247.88 | 0.5700 | 515.0 | 497.4 | |
| 0.72 | 4.05 | 0.43 | 2.41 | -4.53 | 31.14 | 31.60 | 250.94 | 0.5548 | 847.9 | 638.0 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -1.91 | 31.02 | 31.48 | 255.45 | 0.5413 | 868.0 | 701.0 | |
| 0.00 | 1.98 | 0.00 | 1.16 | -1.72 | 31.02 | 31.47 | 255.78 | 0.5405 | 690.0 | 575.5 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -5.86 | 31.14 | 31.60 | 248.70 | 0.5616 | 717.0 | 629.0 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -4.82 | 30.84 | 31.29 | 250.26 | 0.5520 | 207.0 | 154.0 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -4.19 | 30.70 | 31.16 | 251.25 | 0.5470 | -456.0 | -253.9 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -6.51 | 30.61 | 31.07 | 247.27 | 0.5581 | -563.0 | -457.4 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -3.15 | 30.23 | 30.69 | 252.81 | 0.5356 | -642.0 | -446.6 | |
| 1.80 | 4.50 | 1.06 | 2.66 | -5.59 | 30.24 | 30.69 | 248.56 | 0.5479 | 893.6 | 805.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -4.97 | 30.20 | 30.66 | 249.60 | 0.5441 | -494.0 | -367.9 | |
| 1.26 | 3.60 | 0.74 | 2.12 | -5.07 | 29.85 | 30.31 | 249.20 | 0.5399 | -696.4 | -472.1 | |
| 2.16 | 21.41 | 1.26 | 12.49 | -3.86 | 29.76 | 30.22 | 251.26 | 0.5324 | -780.5 | -716.3 | |
| 1.35 | 2.70 | 0.80 | 1.60 | -6.47 | 29.86 | 30.32 | 246.82 | 0.5478 | -776.7 | -596.9 | |
| 1.53 | -40.00 | 0.89 | -40.00 | -3.82 | 29.66 | 30.12 | 251.26 | 0.5307 | -883.6 | 999999 | |
| 1.17 | 4.68 | 0.69 | 2.76 | -6.70 | 29.56 | 30.02 | 246.21 | 0.5451 | -789.5 | -711.3 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -3.67 | 29.30 | 29.76 | 251.30 | 0.5250 | -862.0 | -765.3 | |
| 1.53 | 3.96 | 0.89 | 2.30 | -4.19 | 29.25 | 29.71 | 250.33 | 0.5270 | -766.4 | -613.1 | |
| 3.33 | 15.47 | 1.94 | 9.04 | -4.90 | 29.18 | 29.64 | 249.03 | 0.5297 | -826.2 | -229.9 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -6.02 | 29.24 | 29.70 | 247.12 | 0.5368 | -649.0 | -507.8 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -6.48 | 29.12 | 29.58 | 246.25 | 0.5380 | -644.0 | -543.5 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -5.95 | 29.06 | 29.52 | 247.11 | 0.5340 | -683.0 | -539.9 | |
| 0.00 | 4.23 | 0.00 | 2.45 | -4.24 | 28.94 | 29.40 | 250.04 | 0.5228 | -1023.0 | -820.7 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -6.13 | 29.03 | 29.49 | 246.77 | 0.5347 | -645.0 | -504.5 | |
| 0.63 | 1.62 | 0.37 | 0.95 | -6.32 | 28.97 | 29.43 | 246.42 | 0.5350 | -809.4 | -624.3 | |
| 0.72 | 2.61 | 0.42 | 1.52 | -6.03 | 28.85 | 29.31 | 246.82 | 0.5316 | -819.6 | -749.0 | |
| 1.71 | 3.78 | 0.99 | 2.19 | -4.91 | 28.79 | 29.25 | 248.74 | 0.5244 | -864.8 | -751.3 | |
| 0.00 | 2.34 | 0.00 | 1.36 | -5.83 | 28.70 | 29.16 | 247.05 | 0.5284 | -598.0 | -747.0 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -5.24 | 28.63 | 29.09 | 248.04 | 0.5241 | -598.0 | -578.7 | |
| 0.00 | 4.05 | 0.00 | 2.34 | -4.77 | 28.54 | 29.00 | 248.81 | 0.5202 | -1007.0 | -846.2 | |
| 0.54 | 3.15 | 0.31 | 1.83 | -5.32 | 28.46 | 28.92 | 247.77 | 0.5222 | -875.5 | -724.3 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -5.10 | 28.45 | 28.91 | 248.15 | 0.5208 | -1006.0 | -927.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -7.05 | 23.84 | 24.30 | 240.55 | 0.4709 | -777.0 | -592.3 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -6.81 | 23.29 | 23.75 | 240.44 | 0.4616 | -874.0 | -634.1 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -11.36 | 11.54 | 12.00 | 213.27 | 0.3732 | -776.0 | -546.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
