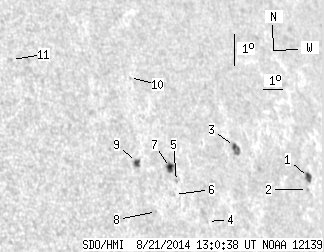

SDO HMI 2014-08-21 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.70 | 29.60 | 9.96 | 25.08 | 15.63 | 53.60 | 54.61 | 284.40 | 0.8113 | 145.1 | -59.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.42 | 5.49 | 3.28 | 5.26 | 14.75 | 58.55 | 59.56 | 283.09 | 0.8580 | -626.5 | -422.7 | |
| 0.00 | 1.35 | 0.00 | 1.29 | 14.40 | 58.33 | 59.34 | 282.68 | 0.8561 | -530.0 | -461.7 | |
| 1.71 | 6.92 | 1.49 | 6.03 | 16.10 | 54.76 | 55.77 | 284.83 | 0.8239 | -671.5 | -575.7 | |
| 0.00 | 1.17 | 0.00 | 0.96 | 13.98 | 52.47 | 53.48 | 282.33 | 0.8005 | 337.0 | 300.8 | |
| 0.00 | 1.26 | 0.00 | 1.01 | 15.33 | 51.33 | 52.33 | 284.10 | 0.7894 | 436.0 | 389.5 | |
| 0.00 | 0.99 | 0.00 | 0.79 | 14.95 | 51.09 | 52.10 | 283.63 | 0.7867 | 531.0 | 505.4 | |
| 4.14 | 6.30 | 3.31 | 5.04 | 15.78 | 51.18 | 52.19 | 284.68 | 0.7881 | 583.5 | 382.0 | |
| 0.00 | 0.45 | 0.00 | 0.35 | 14.52 | 50.03 | 51.04 | 283.15 | 0.7753 | 564.0 | 531.6 | |
| 2.43 | 4.23 | 1.88 | 3.28 | 16.09 | 49.56 | 50.57 | 285.21 | 0.7714 | 706.0 | 551.8 | |
| 0.00 | 0.54 | 0.00 | 0.43 | 18.69 | 50.22 | 51.23 | 288.48 | 0.7810 | 311.0 | 323.2 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 19.73 | 44.88 | 45.89 | 290.78 | 0.7251 | 608.0 | 487.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
