SDO HMI 2014-08-21 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.69 | 253.05 | 44.37 | 151.84 | -4.71 | 31.40 | 32.41 | 251.07 | 0.5667 | 178.3 | 186.5 | |
|
previous
or next observation for the same group /

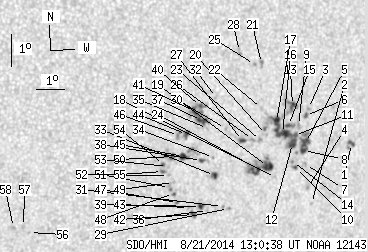

back to the solar disc SDO HMI 2014-08-21 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 5.22 | 1.02 | 3.28 | -4.92 | 35.24 | 36.25 | 252.87 | 0.6188 | 718.6 | 634.7 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -6.68 | 33.87 | 34.88 | 249.41 | 0.6089 | 523.0 | 386.0 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -3.71 | 33.57 | 34.58 | 253.94 | 0.5916 | 638.0 | 478.0 | |
| 0.00 | 1.71 | 0.00 | 1.06 | -6.17 | 33.68 | 34.69 | 250.10 | 0.6040 | 698.0 | 555.9 | |
| 5.40 | 86.34 | 3.32 | 52.64 | -4.76 | 33.51 | 34.52 | 252.23 | 0.5953 | 694.2 | 683.7 | |
| 0.81 | 2.34 | 0.50 | 1.43 | -3.92 | 33.47 | 34.48 | 253.55 | 0.5911 | 831.9 | 660.6 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -5.44 | 33.55 | 34.56 | 251.16 | 0.5989 | 522.0 | 456.1 | |
| 3.06 | -5.00 | 1.88 | -5.00 | -5.00 | 33.45 | 34.46 | 251.81 | 0.5956 | 651.6 | 999999 | |
| 0.00 | 3.06 | 0.00 | 1.87 | -4.21 | 33.22 | 34.23 | 252.96 | 0.5890 | 685.0 | 580.8 | |
| 0.90 | 2.25 | 0.55 | 1.38 | -5.51 | 33.19 | 34.20 | 250.85 | 0.5944 | 726.7 | 596.1 | |
| 1.71 | -5.00 | 1.05 | -5.00 | -4.51 | 33.09 | 34.10 | 252.40 | 0.5886 | 804.0 | 999999 | |
| 5.58 | -5.00 | 3.41 | -5.00 | -4.76 | 33.03 | 34.04 | 251.97 | 0.5888 | 885.0 | 999999 | |
| 2.88 | -5.00 | 1.75 | -5.00 | -3.58 | 32.97 | 33.98 | 253.86 | 0.5829 | 882.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -5.32 | 33.06 | 34.07 | 251.09 | 0.5919 | 915.0 | 830.0 | |
| 1.26 | -5.00 | 0.77 | -5.00 | -4.19 | 32.86 | 33.86 | 252.80 | 0.5839 | 913.8 | 999999 | |
| 10.16 | -5.00 | 6.18 | -5.00 | -4.42 | 32.65 | 33.66 | 252.31 | 0.5822 | 951.7 | 999999 | |
| 5.31 | -5.00 | 3.21 | -5.00 | -4.03 | 32.41 | 33.42 | 252.82 | 0.5772 | 1064.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -5.77 | 32.47 | 33.48 | 250.02 | 0.5862 | 606.0 | 469.8 | |
| 7.28 | 32.02 | 4.42 | 19.37 | -5.41 | 32.15 | 33.16 | 250.42 | 0.5802 | 963.9 | 734.5 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -4.41 | 32.06 | 33.07 | 252.00 | 0.5742 | 778.0 | 677.6 | |
| 0.00 | 3.42 | 0.00 | 2.04 | -2.21 | 31.80 | 32.81 | 255.59 | 0.5612 | 747.0 | 619.8 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -3.59 | 31.84 | 32.85 | 253.25 | 0.5676 | 273.0 | 263.0 | |
| 0.00 | 1.89 | 0.00 | 1.14 | -4.58 | 31.85 | 32.86 | 251.60 | 0.5722 | 874.0 | 778.0 | |
| 1.44 | -19.00 | 0.87 | -19.00 | -5.48 | 31.83 | 32.84 | 250.11 | 0.5762 | 938.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -2.22 | 31.55 | 32.56 | 255.44 | 0.5577 | 694.0 | 647.0 | |
| 0.00 | 2.25 | 0.00 | 1.35 | -4.53 | 31.56 | 32.57 | 251.52 | 0.5680 | 817.0 | 618.4 | |
| 1.71 | 3.69 | 1.02 | 2.21 | -4.54 | 31.20 | 32.21 | 251.30 | 0.5631 | 798.1 | 615.5 | |
| 0.00 | 2.70 | 0.00 | 1.60 | -1.79 | 31.00 | 32.01 | 255.93 | 0.5483 | 683.0 | 647.3 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -6.62 | 30.82 | 31.83 | 247.60 | 0.5688 | -593.0 | -514.2 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -4.13 | 30.57 | 31.58 | 251.62 | 0.5525 | -508.0 | -366.3 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -6.55 | 30.60 | 31.61 | 247.58 | 0.5654 | -325.0 | -463.7 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -3.15 | 30.21 | 31.22 | 253.12 | 0.5430 | -559.0 | -435.3 | |
| 2.07 | 3.87 | 1.23 | 2.30 | -5.56 | 30.25 | 31.26 | 248.99 | 0.5554 | 903.3 | 740.5 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -5.00 | 30.18 | 31.19 | 249.89 | 0.5516 | -571.0 | -387.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -4.08 | 29.93 | 30.94 | 251.31 | 0.5434 | 268.0 | 205.3 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -6.64 | 30.07 | 31.08 | 247.07 | 0.5589 | -562.0 | -404.9 | |
| 4.86 | 27.25 | 2.85 | 15.97 | -3.82 | 29.70 | 30.71 | 251.63 | 0.5391 | -816.9 | -672.1 | |
| 0.99 | 3.87 | 0.58 | 2.29 | -5.06 | 29.76 | 30.77 | 249.51 | 0.5461 | -678.0 | -463.2 | |
| 1.89 | 3.33 | 1.12 | 1.98 | -6.49 | 29.81 | 30.82 | 247.12 | 0.5546 | -732.3 | -583.7 | |
| 0.99 | -37.00 | 0.58 | -37.00 | -3.39 | 29.65 | 30.66 | 252.36 | 0.5363 | -788.5 | 999999 | |
| 2.70 | -37.00 | 1.58 | -37.00 | -3.53 | 29.45 | 30.46 | 251.99 | 0.5340 | -1010.7 | 999999 | |
| 1.80 | 3.78 | 1.07 | 2.24 | -6.73 | 29.58 | 30.59 | 246.57 | 0.5529 | -706.0 | -553.2 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -6.50 | 29.38 | 30.39 | 246.81 | 0.5490 | -782.0 | -721.8 | |
| 2.43 | 4.41 | 1.42 | 2.58 | -4.22 | 29.19 | 30.20 | 250.60 | 0.5339 | -756.8 | -585.3 | |
| 3.78 | 12.05 | 2.21 | 7.07 | -4.90 | 29.11 | 30.12 | 249.36 | 0.5364 | -785.6 | -255.8 | |
| 0.00 | 3.60 | 0.00 | 2.10 | -4.24 | 28.91 | 29.92 | 250.39 | 0.5301 | -1100.0 | -811.5 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -6.32 | 28.98 | 29.99 | 246.83 | 0.5426 | -867.0 | -740.7 | |
| 0.36 | 1.62 | 0.21 | 0.95 | -6.03 | 28.82 | 29.83 | 247.21 | 0.5387 | -647.8 | -700.6 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -5.69 | 28.80 | 29.81 | 247.78 | 0.5365 | -698.0 | -666.2 | |
| 1.53 | 7.64 | 0.89 | 4.46 | -4.87 | 28.73 | 29.74 | 249.14 | 0.5309 | -890.8 | -822.6 | |
| 0.00 | 3.51 | 0.00 | 2.05 | -5.83 | 28.67 | 29.68 | 247.43 | 0.5355 | -675.0 | -708.1 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -5.46 | 28.62 | 29.63 | 248.05 | 0.5326 | -765.0 | -654.0 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -5.17 | 28.57 | 29.58 | 248.50 | 0.5304 | -670.0 | -650.5 | |
| 0.63 | 1.62 | 0.37 | 0.94 | -5.10 | 28.42 | 29.43 | 248.53 | 0.5280 | -953.1 | -780.2 | |
| 0.54 | 1.71 | 0.31 | 1.00 | -5.32 | 28.40 | 29.41 | 248.13 | 0.5289 | -826.0 | -702.2 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -6.96 | 23.92 | 24.93 | 241.37 | 0.4786 | -635.0 | -481.9 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -6.76 | 23.71 | 24.72 | 241.52 | 0.4743 | -605.0 | -486.3 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -6.77 | 23.37 | 24.38 | 241.16 | 0.4699 | -846.0 | -681.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
