SDO HMI 2014-08-21 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.36 | 86.72 | 10.01 | 50.46 | -9.61 | 332.18 | -26.81 | 121.61 | 0.5241 | 620.3 | 412.0 | |
|
previous
or next observation for the same group /

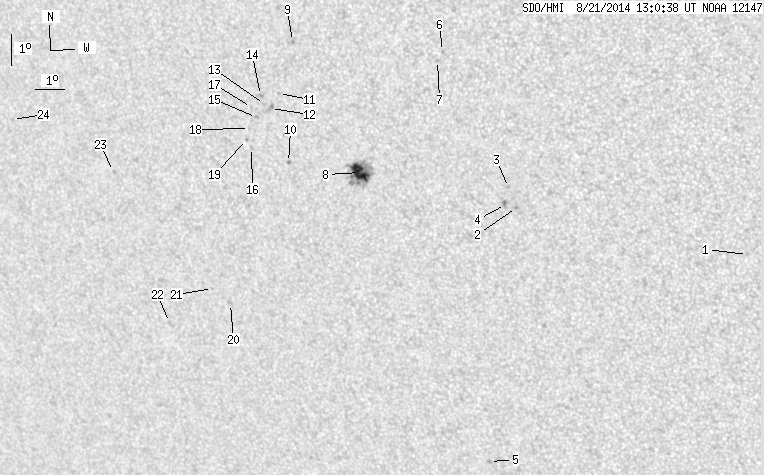

back to the solar disc SDO HMI 2014-08-21 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.77 | -11.59 | 345.46 | -13.53 | 143.87 | 0.3902 | 791.0 | 525.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -10.36 | 338.06 | -20.93 | 129.42 | 0.4568 | 917.0 | 744.8 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -9.73 | 337.84 | -21.15 | 128.04 | 0.4534 | 715.0 | 556.1 | |
| 0.00 | 2.61 | 0.00 | 1.45 | -10.28 | 337.70 | -21.29 | 128.81 | 0.4603 | 709.0 | 628.3 | |
| 0.00 | 2.25 | 0.00 | 1.34 | -18.71 | 336.26 | -22.73 | 139.16 | 0.5618 | 708.0 | 539.3 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -5.56 | 335.89 | -23.10 | 117.84 | 0.4434 | 778.0 | 575.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -5.85 | 335.71 | -23.28 | 118.22 | 0.4480 | 669.0 | 538.6 | |
| 17.36 | 50.99 | 10.01 | 29.41 | -9.50 | 332.85 | -26.14 | 121.88 | 0.5138 | 979.4 | 436.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -5.52 | 330.82 | -28.17 | 113.14 | 0.5131 | 795.0 | 714.6 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -9.32 | 330.40 | -28.59 | 119.30 | 0.5435 | 846.0 | 693.4 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -7.17 | 330.23 | -28.76 | 115.57 | 0.5313 | 733.0 | 605.4 | |
| 0.00 | 4.77 | 0.00 | 2.80 | -7.66 | 329.91 | -29.08 | 116.14 | 0.5386 | 737.0 | 684.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -7.54 | 329.71 | -29.28 | 115.79 | 0.5406 | 729.0 | 592.5 | |
| 0.00 | 1.89 | 0.00 | 1.11 | -7.27 | 329.59 | -29.40 | 115.23 | 0.5404 | 738.0 | 641.2 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -7.97 | 329.39 | -29.60 | 116.24 | 0.5474 | 628.0 | 458.7 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -8.93 | 329.13 | -29.86 | 117.59 | 0.5570 | 553.0 | 493.4 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -7.67 | 329.24 | -29.75 | 115.62 | 0.5475 | 646.0 | 533.8 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -8.33 | 329.12 | -29.87 | 116.61 | 0.5533 | 528.0 | 477.4 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -8.69 | 328.98 | -30.01 | 117.08 | 0.5574 | 657.0 | 561.9 | |
| 0.00 | 2.07 | 0.00 | 1.29 | -13.99 | 327.76 | -31.23 | 124.02 | 0.6092 | -644.0 | -527.7 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -13.54 | 327.17 | -31.82 | 122.91 | 0.6128 | -134.0 | -185.5 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -14.76 | 325.37 | -33.62 | 123.15 | 0.6418 | -706.0 | -559.4 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -10.02 | 323.98 | -35.01 | 115.52 | 0.6283 | -643.0 | -508.8 | |
| 0.00 | 1.62 | 0.00 | 1.07 | -8.66 | 320.26 | -38.73 | 111.38 | 0.6665 | -78.0 | -145.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
