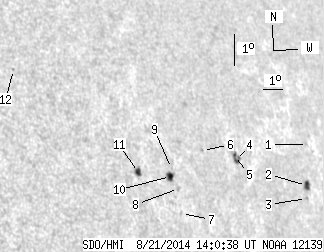

SDO HMI 2014-08-21 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.87 | 29.14 | 11.13 | 25.16 | 15.63 | 53.85 | 55.41 | 284.36 | 0.8189 | -1.1 | -84.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.80 | 15.97 | 59.16 | 60.72 | 284.49 | 0.8681 | -434.0 | -344.1 | |
| 3.60 | 5.40 | 3.50 | 5.25 | 14.76 | 58.50 | 60.06 | 283.09 | 0.8623 | -620.6 | -458.9 | |
| 0.00 | 1.35 | 0.00 | 1.30 | 14.37 | 58.32 | 59.88 | 282.65 | 0.8608 | -427.0 | -421.9 | |
| 1.53 | 6.29 | 1.35 | 5.56 | 15.91 | 54.80 | 56.36 | 284.57 | 0.8294 | -695.2 | -523.4 | |
| 1.17 | -4.00 | 1.03 | -4.00 | 16.07 | 54.76 | 56.32 | 284.77 | 0.8291 | -685.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.99 | 16.39 | 53.10 | 54.66 | 285.26 | 0.8133 | -310.0 | -281.7 | |
| 0.00 | 0.99 | 0.00 | 0.80 | 14.60 | 51.29 | 52.85 | 283.14 | 0.7943 | 548.0 | 432.0 | |
| 0.00 | 1.89 | 0.00 | 1.54 | 15.37 | 51.40 | 52.97 | 284.10 | 0.7959 | 373.0 | 308.6 | |
| 0.00 | 0.36 | 0.00 | 0.29 | 16.00 | 51.27 | 52.84 | 284.91 | 0.7949 | 266.0 | 249.2 | |
| 3.78 | 5.75 | 3.06 | 4.66 | 15.77 | 51.13 | 52.69 | 284.62 | 0.7933 | 606.1 | 415.8 | |
| 2.79 | 4.32 | 2.19 | 3.38 | 16.04 | 49.59 | 51.15 | 285.09 | 0.7774 | 657.5 | 487.6 | |
| 0.00 | 0.81 | 0.00 | 0.59 | 19.68 | 44.86 | 46.42 | 290.60 | 0.7310 | 487.0 | 406.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
