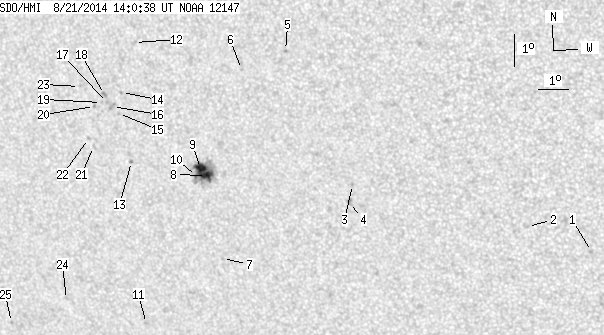

SDO HMI 2014-08-21 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.80 | 69.72 | 10.22 | 40.17 | -9.32 | 332.40 | -26.04 | 121.92 | 0.5121 | 617.8 | 469.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.87 | -11.54 | 345.46 | -12.98 | 144.91 | 0.3845 | 774.0 | 568.3 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -10.80 | 343.45 | -14.98 | 139.75 | 0.3948 | 684.0 | 724.0 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -9.68 | 337.85 | -20.59 | 128.70 | 0.4460 | 741.0 | 541.6 | |
| 0.00 | 3.69 | 0.00 | 2.05 | -10.25 | 337.71 | -20.72 | 129.52 | 0.4533 | 624.0 | 548.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -5.57 | 335.87 | -22.57 | 118.43 | 0.4361 | 655.0 | 570.7 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -6.23 | 334.38 | -24.06 | 118.14 | 0.4615 | 626.0 | 521.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -12.25 | 333.27 | -25.17 | 127.33 | 0.5246 | -647.0 | -515.9 | |
| 8.90 | 37.05 | 5.11 | 21.25 | -9.62 | 332.97 | -25.47 | 122.77 | 0.5062 | 1003.8 | 547.5 | |
| 8.63 | -8.00 | 4.95 | -8.00 | -9.41 | 332.78 | -25.65 | 122.22 | 0.5069 | 965.8 | 999999 | |
| 0.27 | -8.00 | 0.16 | -8.00 | -9.67 | 332.63 | -25.81 | 122.50 | 0.5110 | 559.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -14.51 | 330.34 | -28.09 | 127.62 | 0.5777 | -752.0 | -597.4 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -5.58 | 330.78 | -27.66 | 113.66 | 0.5064 | 786.0 | 636.2 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -9.32 | 330.41 | -28.03 | 119.79 | 0.5364 | 877.0 | 702.3 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -7.17 | 330.23 | -28.20 | 116.02 | 0.5239 | 710.0 | 582.5 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -7.83 | 330.08 | -28.36 | 117.03 | 0.5303 | 755.0 | 589.2 | |
| 0.00 | 3.60 | 0.00 | 2.10 | -7.62 | 329.89 | -28.55 | 116.52 | 0.5315 | 766.0 | 709.8 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -7.51 | 329.72 | -28.72 | 116.18 | 0.5329 | 732.0 | 609.4 | |
| 0.00 | 2.61 | 0.00 | 1.52 | -7.26 | 329.64 | -28.80 | 115.70 | 0.5325 | 852.0 | 667.8 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -7.52 | 329.51 | -28.93 | 116.03 | 0.5358 | 754.0 | 583.3 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -7.66 | 329.26 | -29.18 | 116.06 | 0.5400 | 576.0 | 505.1 | |
| 0.00 | 1.80 | 0.00 | 1.07 | -8.93 | 329.12 | -29.32 | 118.02 | 0.5502 | 614.0 | 466.4 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -8.68 | 328.96 | -29.48 | 117.50 | 0.5506 | 594.0 | 508.3 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -7.07 | 328.77 | -29.67 | 114.68 | 0.5427 | 447.0 | 441.3 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -13.90 | 327.55 | -30.89 | 124.19 | 0.6046 | -482.0 | -474.8 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -14.79 | 325.38 | -33.06 | 123.62 | 0.6357 | -720.0 | -558.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
