SDO HMI 2014-08-21 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.73 | 74.65 | 8.99 | 42.96 | -9.38 | 331.97 | -25.92 | 122.04 | 0.5105 | 684.4 | 477.3 | |
|
previous
or next observation for the same group /

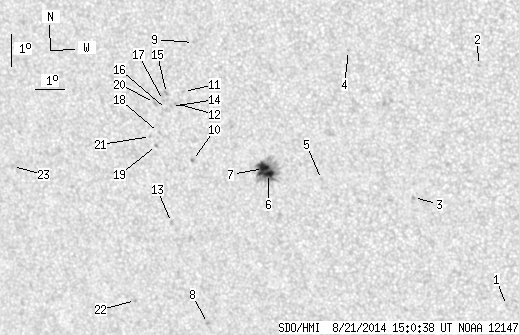

back to the solar disc SDO HMI 2014-08-21 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.60 | -13.48 | 340.57 | -17.32 | 139.83 | 0.4506 | 658.0 | 419.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -5.90 | 340.08 | -17.80 | 125.37 | 0.3745 | 732.0 | 602.1 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -10.13 | 337.77 | -20.12 | 130.15 | 0.4449 | 826.0 | 658.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -5.60 | 335.88 | -22.01 | 119.13 | 0.4287 | 781.0 | 591.5 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -9.70 | 334.75 | -23.14 | 125.48 | 0.4776 | 626.0 | 486.3 | |
| 6.02 | 45.67 | 3.44 | 26.07 | -9.59 | 332.97 | -24.92 | 123.31 | 0.4991 | 1071.9 | 541.0 | |
| 9.71 | -6.00 | 5.55 | -6.00 | -9.44 | 332.81 | -25.08 | 122.88 | 0.4998 | 933.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -14.54 | 330.32 | -27.56 | 128.19 | 0.5721 | -774.0 | -608.9 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -5.62 | 330.68 | -27.21 | 114.10 | 0.5005 | 739.0 | 608.4 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -9.32 | 330.38 | -27.50 | 120.28 | 0.5297 | 891.0 | 716.3 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -7.17 | 330.24 | -27.65 | 116.50 | 0.5165 | 792.0 | 631.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -7.56 | 329.94 | -27.95 | 116.91 | 0.5231 | 884.0 | 789.8 | |
| 0.00 | 2.25 | 0.00 | 1.34 | -11.34 | 329.45 | -28.44 | 122.62 | 0.5565 | 584.0 | 423.8 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -7.66 | 329.79 | -28.10 | 116.96 | 0.5257 | 772.0 | 726.2 | |
| 0.00 | 1.89 | 0.00 | 1.10 | -7.26 | 329.64 | -28.24 | 116.16 | 0.5250 | 847.0 | 709.7 | |
| 0.00 | 1.80 | 0.00 | 1.05 | -7.77 | 329.61 | -28.28 | 116.98 | 0.5288 | 689.0 | 591.2 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -7.49 | 329.52 | -28.36 | 116.44 | 0.5281 | 774.0 | 666.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -8.51 | 329.27 | -28.62 | 117.94 | 0.5383 | 724.0 | 548.2 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -8.92 | 329.16 | -28.72 | 118.53 | 0.5425 | 679.0 | 576.3 | |
| 0.00 | 3.24 | 0.00 | 1.89 | -7.57 | 329.20 | -28.68 | 116.32 | 0.5329 | 576.0 | 512.0 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -8.65 | 328.98 | -28.91 | 117.92 | 0.5430 | 630.0 | 517.4 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -13.94 | 327.83 | -30.05 | 124.99 | 0.5955 | -642.0 | -550.3 | |
| 0.00 | 1.89 | 0.00 | 1.18 | -9.92 | 323.87 | -34.02 | 116.03 | 0.6156 | -131.0 | -137.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
