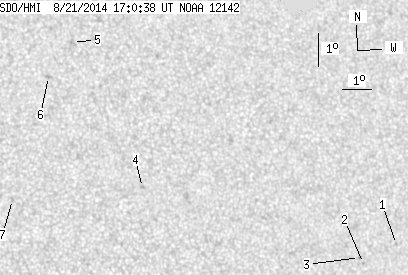

SDO HMI 2014-08-21 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.44 | 0.00 | 5.82 | 10.94 | 23.65 | 26.87 | 281.52 | 0.4548 | 130.4 | 193.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.86 | 8.23 | 31.24 | 34.46 | 274.49 | 0.5639 | -724.0 | -505.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 7.74 | 29.98 | 33.20 | 273.58 | 0.5457 | -706.0 | -625.0 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 7.93 | 29.85 | 33.07 | 273.93 | 0.5438 | -801.0 | -691.8 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 10.50 | 22.42 | 25.64 | 279.91 | 0.4337 | 817.0 | 617.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 15.03 | 20.50 | 23.72 | 291.25 | 0.4186 | 747.0 | 586.3 | |
| 0.00 | 2.52 | 0.00 | 1.36 | 14.03 | 19.57 | 22.79 | 289.50 | 0.4003 | 893.0 | 678.4 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 10.35 | 18.04 | 21.26 | 280.80 | 0.3646 | 687.0 | 545.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
