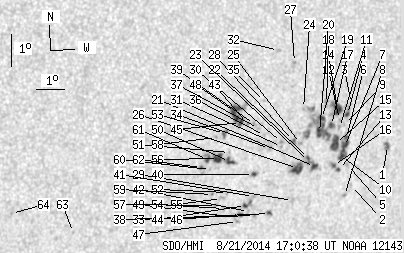

SDO HMI 2014-08-21 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.60 | 244.70 | 48.02 | 151.15 | -4.76 | 31.71 | 34.93 | 252.37 | 0.6006 | 131.8 | 250.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 4.49 | 1.11 | 2.91 | -4.98 | 35.25 | 38.47 | 253.80 | 0.6477 | 738.5 | 581.5 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -6.12 | 33.94 | 37.16 | 251.48 | 0.6357 | 584.0 | 474.0 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -3.57 | 33.78 | 37.00 | 255.28 | 0.6233 | 426.0 | 413.3 | |
| 1.35 | 5.30 | 0.85 | 3.35 | -3.90 | 33.65 | 36.87 | 254.71 | 0.6228 | 605.9 | 484.7 | |
| 0.00 | 2.52 | 0.00 | 1.60 | -5.46 | 33.74 | 36.96 | 252.38 | 0.6303 | 589.0 | 388.3 | |
| 0.99 | 82.96 | 0.63 | 52.02 | -4.61 | 33.65 | 36.87 | 253.62 | 0.6256 | 569.9 | 715.2 | |
| 4.85 | -6.00 | 3.08 | -6.00 | -4.89 | 33.59 | 36.81 | 253.17 | 0.6259 | 660.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -6.42 | 33.70 | 36.92 | 250.92 | 0.6339 | 748.0 | 667.4 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -4.20 | 33.55 | 36.77 | 254.20 | 0.6226 | 424.0 | 357.0 | |
| 3.33 | -6.00 | 2.11 | -6.00 | -5.19 | 33.49 | 36.71 | 252.66 | 0.6259 | 720.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -4.28 | 33.36 | 36.58 | 253.99 | 0.6205 | 607.0 | 533.7 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -4.04 | 33.35 | 36.57 | 254.37 | 0.6194 | 588.0 | 491.5 | |
| 0.99 | 4.85 | 0.63 | 3.07 | -5.59 | 33.41 | 36.63 | 252.02 | 0.6265 | 639.3 | 624.2 | |
| 6.56 | 12.94 | 4.12 | 8.12 | -3.69 | 33.26 | 36.48 | 254.87 | 0.6168 | 863.7 | 738.0 | |
| 8.18 | -6.00 | 5.16 | -6.00 | -4.77 | 33.24 | 36.46 | 253.19 | 0.6209 | 847.3 | 999999 | |
| 1.08 | -13.00 | 0.68 | -13.00 | -5.45 | 33.21 | 36.43 | 252.13 | 0.6233 | 786.7 | 999999 | |
| 2.16 | -6.00 | 1.35 | -6.00 | -4.20 | 33.05 | 36.27 | 253.98 | 0.6161 | 836.4 | 999999 | |
| 0.00 | 3.42 | 0.00 | 2.13 | -3.50 | 32.83 | 36.05 | 254.97 | 0.6105 | 815.0 | 709.1 | |
| 2.70 | -6.00 | 1.68 | -6.00 | -3.95 | 32.67 | 35.88 | 254.18 | 0.6100 | 961.2 | 999999 | |
| 4.04 | -6.00 | 2.53 | -6.00 | -4.38 | 32.61 | 35.83 | 253.48 | 0.6111 | 945.2 | 999999 | |
| 2.88 | 4.58 | 1.80 | 2.87 | -5.43 | 32.49 | 35.71 | 251.79 | 0.6139 | 867.9 | 654.5 | |
| 0.81 | 2.43 | 0.50 | 1.51 | -5.16 | 32.25 | 35.46 | 252.08 | 0.6095 | 818.6 | 741.4 | |
| 0.36 | -22.00 | 0.22 | -22.00 | -5.25 | 32.25 | 35.47 | 251.94 | 0.6100 | 1007.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -3.60 | 31.97 | 35.19 | 254.42 | 0.5994 | 456.0 | 347.0 | |
| 0.00 | 1.44 | 0.00 | 0.89 | -4.67 | 31.92 | 35.14 | 252.68 | 0.6031 | 783.0 | 702.4 | |
| 7.28 | 11.86 | 4.52 | 7.37 | -5.44 | 31.85 | 35.07 | 251.43 | 0.6056 | 890.1 | 727.1 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -2.15 | 31.59 | 34.81 | 256.59 | 0.5886 | 799.0 | 700.4 | |
| 0.72 | 3.51 | 0.44 | 2.16 | -4.56 | 31.65 | 34.87 | 252.72 | 0.5991 | 946.9 | 742.0 | |
| 0.00 | 2.25 | 0.00 | 1.40 | -6.43 | 31.74 | 34.96 | 249.83 | 0.6088 | 784.0 | 675.1 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -4.59 | 31.21 | 34.43 | 252.44 | 0.5933 | 817.0 | 596.0 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -4.71 | 31.21 | 34.43 | 252.24 | 0.5939 | 645.0 | 553.5 | |
| 0.00 | 1.89 | 0.00 | 1.14 | -1.74 | 30.99 | 34.21 | 257.01 | 0.5789 | 769.0 | 616.0 | |
| 1.17 | 2.25 | 0.72 | 1.39 | -6.77 | 30.91 | 34.13 | 248.81 | 0.5997 | -477.5 | -434.4 | |
| 0.00 | 2.43 | 0.00 | 1.48 | -4.75 | 30.77 | 33.99 | 251.95 | 0.5882 | 262.0 | 245.8 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -3.28 | 30.52 | 33.74 | 254.23 | 0.5784 | -465.0 | -255.5 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -4.33 | 30.57 | 33.79 | 252.52 | 0.5836 | -423.0 | -356.7 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -4.10 | 30.34 | 33.56 | 252.78 | 0.5794 | -535.0 | -349.0 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -6.80 | 30.36 | 33.58 | 248.44 | 0.5927 | -617.0 | -508.5 | |
| 0.00 | 2.16 | 0.00 | 1.31 | -3.96 | 30.18 | 33.40 | 252.92 | 0.5767 | -577.0 | -429.5 | |
| 1.26 | 2.61 | 0.77 | 1.59 | -5.51 | 30.23 | 33.45 | 250.41 | 0.5846 | 875.6 | 753.4 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -6.20 | 30.28 | 33.50 | 249.34 | 0.5886 | 136.0 | 83.8 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -6.66 | 30.13 | 33.35 | 248.52 | 0.5890 | -490.0 | -396.5 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -3.92 | 29.93 | 33.15 | 252.86 | 0.5730 | -526.0 | -445.0 | |
| 1.53 | 4.85 | 0.93 | 2.97 | -6.46 | 30.00 | 33.22 | 248.75 | 0.5863 | -685.4 | -300.6 | |
| 2.16 | 20.40 | 1.30 | 12.25 | -3.87 | 29.67 | 32.89 | 252.80 | 0.5693 | -713.3 | -626.8 | |
| 1.26 | 2.43 | 0.77 | 1.48 | -6.73 | 29.84 | 33.06 | 248.22 | 0.5856 | -803.7 | -583.0 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -6.94 | 29.75 | 32.97 | 247.83 | 0.5855 | -627.0 | -493.5 | |
| 9.26 | -45.00 | 5.55 | -45.00 | -3.55 | 29.48 | 32.70 | 253.23 | 0.5652 | -936.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -6.81 | 29.63 | 32.85 | 247.96 | 0.5832 | -692.0 | -531.8 | |
| 3.24 | 15.46 | 1.95 | 9.28 | -5.05 | 29.33 | 32.55 | 250.63 | 0.5702 | -682.2 | -555.8 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -4.77 | 29.32 | 32.54 | 251.09 | 0.5687 | -409.0 | -310.0 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -6.01 | 29.32 | 32.54 | 249.05 | 0.5749 | -666.0 | -562.5 | |
| 0.00 | 4.13 | 0.00 | 2.47 | -4.17 | 29.11 | 32.33 | 251.97 | 0.5630 | -874.0 | -703.5 | |
| 0.00 | 2.16 | 0.00 | 1.31 | -6.50 | 29.21 | 32.43 | 248.18 | 0.5760 | -660.0 | -466.6 | |
| 0.00 | 2.79 | 0.00 | 1.68 | -6.18 | 29.11 | 32.33 | 248.64 | 0.5731 | -661.0 | -594.6 | |
| 5.48 | -50.00 | 3.28 | -50.00 | -4.93 | 28.93 | 32.15 | 250.59 | 0.5642 | -874.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -6.39 | 28.94 | 32.16 | 248.19 | 0.5720 | -783.0 | -613.6 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -4.27 | 28.82 | 32.04 | 251.63 | 0.5596 | -980.0 | -791.6 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -6.04 | 28.78 | 32.00 | 248.66 | 0.5679 | -836.0 | -707.1 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -5.25 | 28.66 | 31.88 | 249.89 | 0.5622 | -667.0 | -558.6 | |
| 1.71 | 5.03 | 1.02 | 3.00 | -4.93 | 28.53 | 31.75 | 250.34 | 0.5589 | -964.8 | -857.1 | |
| 0.54 | 4.13 | 0.32 | 2.46 | -5.17 | 28.33 | 31.55 | 249.82 | 0.5573 | -932.2 | -763.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -6.92 | 23.95 | 27.17 | 243.52 | 0.5084 | -735.0 | -551.1 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -6.21 | 21.80 | 25.02 | 242.84 | 0.4744 | -784.0 | -666.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
