SDO HMI 2014-08-21 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.12 | 21.75 | 5.73 | 19.62 | 15.24 | 53.42 | 57.19 | 283.75 | 0.8352 | 112.2 | -35.6 | |
|
previous
or next observation for the same group /

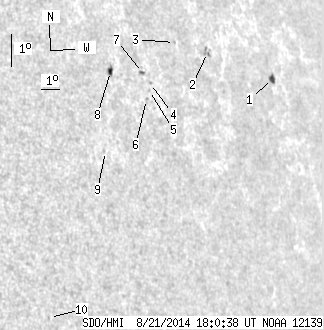

back to the solar disc SDO HMI 2014-08-21 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.24 | 4.85 | 3.36 | 5.04 | 14.77 | 58.57 | 62.35 | 283.09 | 0.8813 | -534.7 | -399.3 | |
| 0.00 | 4.85 | 0.00 | 4.55 | 15.96 | 54.96 | 58.74 | 284.52 | 0.8510 | -678.0 | -563.7 | |
| 0.00 | 0.90 | 0.00 | 0.81 | 16.45 | 53.22 | 56.99 | 285.18 | 0.8355 | -175.0 | -229.6 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 15.35 | 51.38 | 55.16 | 283.94 | 0.8176 | 439.0 | 337.2 | |
| 0.00 | 1.17 | 0.00 | 1.00 | 15.14 | 51.25 | 55.02 | 283.70 | 0.8162 | 449.0 | 403.1 | |
| 0.00 | 1.26 | 0.00 | 1.07 | 14.89 | 50.98 | 54.76 | 283.40 | 0.8135 | 492.0 | 476.9 | |
| 0.54 | 1.53 | 0.46 | 1.30 | 15.72 | 51.09 | 54.86 | 284.41 | 0.8149 | 470.8 | 332.3 | |
| 2.34 | 4.67 | 1.91 | 3.83 | 15.91 | 49.44 | 53.21 | 284.75 | 0.7986 | 636.3 | 506.9 | |
| 0.00 | 0.63 | 0.00 | 0.50 | 13.53 | 48.35 | 52.12 | 281.81 | 0.7862 | 479.0 | 470.7 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 8.79 | 44.49 | 48.26 | 275.61 | 0.7433 | 428.0 | 362.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
