SDO HMI 2014-08-21 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.29 | 271.29 | 39.95 | 168.69 | -4.86 | 31.63 | 35.40 | 252.47 | 0.6073 | 116.4 | 285.5 | |
|
previous
or next observation for the same group /

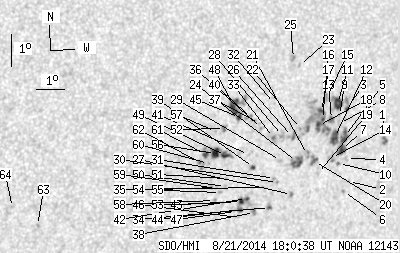

back to the solar disc SDO HMI 2014-08-21 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.04 | 0.00 | 2.64 | -5.02 | 35.21 | 38.98 | 253.97 | 0.6543 | 843.0 | 672.6 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -6.19 | 33.90 | 37.67 | 251.64 | 0.6424 | 593.0 | 474.5 | |
| 0.99 | 18.60 | 0.63 | 11.79 | -3.91 | 33.67 | 37.44 | 254.96 | 0.6303 | 510.3 | 586.5 | |
| 0.00 | 1.98 | 0.00 | 1.27 | -5.46 | 33.77 | 37.54 | 252.65 | 0.6377 | 556.0 | 398.8 | |
| 4.94 | 80.17 | 3.16 | 50.64 | -4.77 | 33.64 | 37.41 | 253.63 | 0.6333 | 627.9 | 699.1 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -6.48 | 33.73 | 37.50 | 251.11 | 0.6416 | 772.0 | 609.2 | |
| 4.58 | -5.00 | 2.93 | -5.00 | -5.17 | 33.55 | 37.33 | 252.99 | 0.6338 | 689.4 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.54 | -4.35 | 33.42 | 37.20 | 254.17 | 0.6288 | 498.0 | 471.5 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -4.11 | 33.41 | 37.18 | 254.54 | 0.6277 | 600.0 | 499.1 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -5.59 | 33.47 | 37.24 | 252.31 | 0.6344 | 730.0 | 583.6 | |
| 7.37 | -3.00 | 4.67 | -3.00 | -3.73 | 33.32 | 37.09 | 255.08 | 0.6250 | 843.2 | 999999 | |
| 7.10 | -5.00 | 4.51 | -5.00 | -4.77 | 33.26 | 37.03 | 253.45 | 0.6284 | 877.3 | 999999 | |
| 1.71 | 4.22 | 1.08 | 2.67 | -4.21 | 33.11 | 36.88 | 254.25 | 0.6242 | 873.7 | 683.4 | |
| 0.00 | 5.48 | 0.00 | 3.49 | -5.39 | 33.18 | 36.96 | 252.48 | 0.6299 | 746.0 | 586.2 | |
| 0.00 | 2.70 | 0.00 | 1.70 | -3.51 | 32.89 | 36.66 | 255.22 | 0.6186 | 871.0 | 721.0 | |
| 1.08 | -5.00 | 0.68 | -5.00 | -4.18 | 32.77 | 36.54 | 254.13 | 0.6196 | 1088.5 | 999999 | |
| 1.98 | -5.00 | 1.24 | -5.00 | -3.93 | 32.72 | 36.49 | 254.50 | 0.6179 | 981.1 | 999999 | |
| 3.51 | -5.00 | 2.21 | -5.00 | -4.36 | 32.63 | 36.40 | 253.79 | 0.6184 | 980.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.91 | -5.85 | 32.68 | 36.46 | 251.53 | 0.6255 | 278.0 | 290.6 | |
| 1.89 | 5.57 | 1.19 | 3.52 | -5.46 | 32.54 | 36.32 | 252.04 | 0.6220 | 842.4 | 761.0 | |
| 0.00 | 4.13 | 0.00 | 2.60 | -5.23 | 32.26 | 36.04 | 252.27 | 0.6173 | 919.0 | 798.2 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -4.40 | 31.95 | 35.72 | 253.40 | 0.6097 | 983.0 | 793.2 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -2.45 | 31.83 | 35.60 | 256.45 | 0.6005 | 741.0 | 606.8 | |
| 0.00 | 13.03 | 0.00 | 8.15 | -5.41 | 31.86 | 35.63 | 251.77 | 0.6129 | 950.0 | 773.2 | |
| 0.00 | 2.43 | 0.00 | 1.49 | -2.22 | 31.60 | 35.37 | 256.72 | 0.5965 | 753.0 | 693.0 | |
| 0.00 | 4.94 | 0.00 | 3.07 | -4.63 | 31.66 | 35.43 | 252.90 | 0.6068 | 823.0 | 734.9 | |
| 0.00 | 2.07 | 0.00 | 1.30 | -6.43 | 31.75 | 35.52 | 250.14 | 0.6161 | 983.0 | 765.2 | |
| 0.00 | 5.30 | 0.00 | 3.28 | -4.57 | 31.28 | 35.06 | 252.80 | 0.6016 | 530.0 | 374.5 | |
| 0.00 | 1.71 | 0.00 | 1.06 | -5.34 | 31.26 | 35.03 | 251.57 | 0.6046 | 665.0 | 511.6 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -6.02 | 31.19 | 34.96 | 250.47 | 0.6069 | 803.0 | 654.8 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -5.88 | 31.07 | 34.84 | 250.61 | 0.6047 | 846.0 | 721.5 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -3.56 | 30.94 | 34.71 | 254.25 | 0.5927 | 590.0 | 558.6 | |
| 0.45 | 3.15 | 0.28 | 1.94 | -4.61 | 30.95 | 34.73 | 252.57 | 0.5974 | 887.6 | 535.7 | |
| 0.99 | 3.24 | 0.62 | 2.01 | -6.78 | 30.95 | 34.73 | 249.16 | 0.6075 | -529.4 | -158.4 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -6.13 | 30.68 | 34.45 | 250.00 | 0.6008 | 312.0 | 276.2 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -4.29 | 30.49 | 34.27 | 252.82 | 0.5898 | -553.0 | -359.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -4.13 | 30.41 | 34.18 | 253.04 | 0.5881 | -325.0 | -273.0 | |
| 0.00 | 2.97 | 0.00 | 1.83 | -6.89 | 30.40 | 34.18 | 248.65 | 0.6010 | -690.0 | -556.6 | |
| 1.17 | 2.25 | 0.72 | 1.38 | -5.49 | 30.27 | 34.04 | 250.79 | 0.5923 | 806.6 | 682.8 | |
| 0.00 | 6.02 | 0.00 | 3.67 | -3.96 | 30.11 | 33.88 | 253.17 | 0.5832 | -530.0 | -458.0 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -5.07 | 30.06 | 33.83 | 251.34 | 0.5875 | -428.0 | -386.4 | |
| 1.08 | 13.48 | 0.66 | 8.29 | -6.43 | 30.07 | 33.85 | 249.17 | 0.5944 | -545.5 | -335.9 | |
| 2.25 | -42.00 | 1.38 | -42.00 | -6.52 | 29.90 | 33.67 | 248.93 | 0.5925 | -780.7 | 999999 | |
| 1.44 | -42.00 | 0.88 | -42.00 | -6.76 | 29.88 | 33.65 | 248.53 | 0.5935 | -794.2 | 999999 | |
| 1.89 | 20.76 | 1.14 | 12.54 | -3.90 | 29.67 | 33.44 | 253.04 | 0.5770 | -729.8 | -627.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -7.01 | 29.82 | 33.60 | 248.11 | 0.5941 | -575.0 | -458.7 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -6.81 | 29.70 | 33.47 | 248.34 | 0.5914 | -498.0 | -484.7 | |
| 8.63 | -45.00 | 5.20 | -45.00 | -3.55 | 29.47 | 33.24 | 253.52 | 0.5727 | -948.3 | 999999 | |
| 3.15 | 16.54 | 1.90 | 9.98 | -5.04 | 29.21 | 32.99 | 250.90 | 0.5761 | -690.8 | -549.9 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -6.01 | 29.27 | 33.05 | 249.37 | 0.5817 | -633.0 | -544.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -5.76 | 29.26 | 33.03 | 249.76 | 0.5802 | -452.0 | -375.2 | |
| 0.00 | 3.51 | 0.00 | 2.11 | -4.20 | 29.13 | 32.91 | 252.24 | 0.5711 | -863.0 | -691.1 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -6.53 | 29.20 | 32.97 | 248.48 | 0.5834 | -618.0 | -468.9 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -6.18 | 29.10 | 32.88 | 248.98 | 0.5803 | -735.0 | -595.9 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -6.01 | 28.95 | 32.72 | 249.15 | 0.5774 | -609.0 | -545.0 | |
| 5.66 | -49.00 | 3.41 | -49.00 | -4.95 | 28.85 | 32.62 | 250.83 | 0.5707 | -872.1 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -4.27 | 28.81 | 32.58 | 251.94 | 0.5670 | -772.0 | -758.4 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -6.42 | 28.90 | 32.68 | 248.47 | 0.5789 | -669.0 | -522.8 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -6.00 | 28.76 | 32.54 | 249.06 | 0.5749 | -710.0 | -700.5 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -5.25 | 28.61 | 32.38 | 250.20 | 0.5690 | -628.0 | -545.4 | |
| 1.98 | 4.67 | 1.19 | 2.80 | -4.96 | 28.49 | 32.26 | 250.60 | 0.5659 | -988.1 | -843.6 | |
| 0.45 | 5.03 | 0.27 | 3.02 | -5.19 | 28.28 | 32.06 | 250.09 | 0.5643 | -919.4 | -714.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -6.81 | 22.70 | 26.48 | 243.09 | 0.4984 | -679.0 | -591.8 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -6.20 | 21.82 | 25.59 | 243.39 | 0.4823 | -796.0 | -607.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
