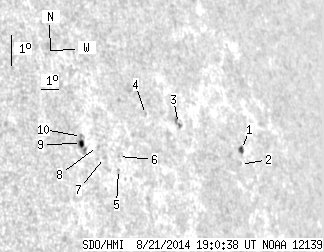

SDO HMI 2014-08-21 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.41 | 22.47 | 4.09 | 20.32 | 15.60 | 52.99 | 57.32 | 284.21 | 0.8367 | 14.6 | -52.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.89 | 3.59 | 2.00 | 3.80 | 14.78 | 58.57 | 62.90 | 283.09 | 0.8856 | -599.1 | -462.2 | |
| 0.00 | 0.63 | 0.00 | 0.66 | 14.34 | 58.28 | 62.61 | 282.59 | 0.8833 | -210.0 | -226.7 | |
| 0.00 | 4.49 | 0.00 | 4.28 | 15.96 | 55.03 | 59.35 | 284.50 | 0.8564 | -675.0 | -555.6 | |
| 0.00 | 1.17 | 0.00 | 1.06 | 16.42 | 53.24 | 57.57 | 285.12 | 0.8407 | -187.0 | -242.9 | |
| 0.00 | 0.81 | 0.00 | 0.70 | 14.92 | 51.05 | 55.37 | 283.41 | 0.8196 | 534.0 | 501.2 | |
| 0.00 | 0.72 | 0.00 | 0.62 | 15.31 | 51.20 | 55.53 | 283.88 | 0.8212 | 384.0 | 366.5 | |
| 0.00 | 1.35 | 0.00 | 1.14 | 15.36 | 50.44 | 54.77 | 283.97 | 0.8139 | -181.0 | -148.1 | |
| 0.00 | 0.72 | 0.00 | 0.61 | 15.72 | 50.21 | 54.53 | 284.43 | 0.8117 | -256.0 | -227.9 | |
| 2.52 | 7.19 | 2.09 | 5.96 | 15.89 | 49.41 | 53.73 | 284.69 | 0.8039 | 669.5 | 482.4 | |
| 0.00 | 1.80 | 0.00 | 1.49 | 16.10 | 49.49 | 53.82 | 284.95 | 0.8048 | 567.0 | 424.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
