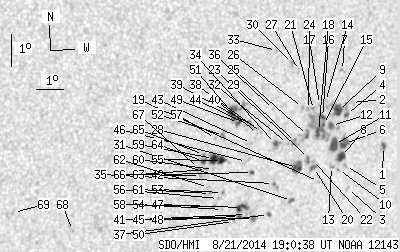

SDO HMI 2014-08-21 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.26 | 261.15 | 50.96 | 163.47 | -4.68 | 31.56 | 35.89 | 252.97 | 0.6131 | 140.0 | 248.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 4.31 | 1.07 | 2.84 | -5.03 | 35.25 | 39.58 | 254.21 | 0.6618 | 751.9 | 602.0 | |
| 0.00 | 4.49 | 0.00 | 2.89 | -3.57 | 33.91 | 38.23 | 255.81 | 0.6394 | 368.0 | 293.7 | |
| 0.00 | 1.71 | 0.00 | 1.11 | -6.23 | 33.93 | 38.26 | 251.86 | 0.6500 | 586.0 | 461.1 | |
| 1.26 | 21.57 | 0.81 | 13.78 | -3.92 | 33.73 | 38.06 | 255.20 | 0.6384 | 565.2 | 585.0 | |
| 0.00 | 1.71 | 0.00 | 1.10 | -5.50 | 33.79 | 38.12 | 252.86 | 0.6453 | 560.0 | 414.9 | |
| 5.39 | 27.32 | 3.47 | 17.56 | -4.82 | 33.71 | 38.03 | 253.84 | 0.6415 | 583.8 | 492.3 | |
| 0.00 | 2.61 | 0.00 | 1.66 | -2.55 | 33.52 | 37.84 | 257.20 | 0.6308 | 704.0 | 595.8 | |
| 5.12 | -6.00 | 3.30 | -6.00 | -5.21 | 33.62 | 37.94 | 253.21 | 0.6419 | 672.4 | 999999 | |
| 6.65 | -4.00 | 4.25 | -4.00 | -3.78 | 33.41 | 37.74 | 255.29 | 0.6337 | 852.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -5.61 | 33.53 | 37.86 | 252.58 | 0.6424 | 661.0 | 564.6 | |
| 7.10 | -6.00 | 4.55 | -6.00 | -4.82 | 33.32 | 37.65 | 253.66 | 0.6365 | 858.5 | 999999 | |
| 2.07 | 5.66 | 1.32 | 3.61 | -4.22 | 33.17 | 37.50 | 254.50 | 0.6322 | 848.6 | 610.2 | |
| 0.00 | 1.89 | 0.00 | 1.21 | -5.49 | 33.25 | 37.58 | 252.62 | 0.6384 | 711.0 | 654.3 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -3.46 | 32.90 | 37.23 | 255.55 | 0.6259 | 594.0 | 475.3 | |
| 0.90 | 33.70 | 0.57 | 21.37 | -4.17 | 32.86 | 37.19 | 254.44 | 0.6280 | 1089.7 | 774.5 | |
| 1.98 | -15.00 | 1.25 | -15.00 | -3.95 | 32.81 | 37.14 | 254.76 | 0.6265 | 922.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -3.53 | 32.67 | 37.00 | 255.33 | 0.6232 | 752.0 | 699.9 | |
| 4.58 | -15.00 | 2.91 | -15.00 | -4.37 | 32.68 | 37.01 | 254.05 | 0.6264 | 967.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -5.92 | 32.78 | 37.11 | 251.74 | 0.6342 | 403.0 | 378.1 | |
| 1.44 | 4.13 | 0.91 | 2.63 | -5.47 | 32.56 | 36.89 | 252.31 | 0.6294 | 804.0 | 686.4 | |
| 0.00 | 2.34 | 0.00 | 1.47 | -3.67 | 32.45 | 36.78 | 255.02 | 0.6208 | 877.0 | 734.5 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -5.25 | 32.54 | 36.87 | 252.63 | 0.6283 | 612.0 | 720.2 | |
| 0.63 | 2.79 | 0.40 | 1.76 | -5.18 | 32.35 | 36.67 | 252.65 | 0.6254 | 930.1 | 812.2 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -3.66 | 32.26 | 36.59 | 254.96 | 0.6182 | 843.0 | 685.1 | |
| 1.26 | 7.82 | 0.79 | 4.93 | -4.46 | 32.27 | 36.59 | 253.72 | 0.6214 | 955.9 | 712.9 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -3.58 | 32.03 | 36.36 | 254.98 | 0.6148 | 832.0 | 688.4 | |
| 0.00 | 1.98 | 0.00 | 1.23 | -2.43 | 31.87 | 36.20 | 256.73 | 0.6085 | 725.0 | 582.9 | |
| 6.56 | 10.34 | 4.14 | 6.52 | -5.43 | 31.95 | 36.27 | 252.07 | 0.6213 | 886.2 | 700.0 | |
| 0.00 | 4.40 | 0.00 | 2.76 | -4.64 | 31.82 | 36.15 | 253.22 | 0.6163 | 910.0 | 787.0 | |
| 0.00 | 2.61 | 0.00 | 1.62 | -2.20 | 31.60 | 35.93 | 256.99 | 0.6040 | 802.0 | 673.4 | |
| 0.90 | 3.06 | 0.57 | 1.93 | -6.44 | 31.80 | 36.12 | 250.45 | 0.6239 | 802.1 | 616.0 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -4.65 | 31.52 | 35.85 | 253.06 | 0.6124 | 726.0 | 663.4 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -1.75 | 31.00 | 35.32 | 257.46 | 0.5942 | 700.0 | 587.5 | |
| 1.53 | 6.02 | 0.95 | 3.75 | -4.62 | 31.07 | 35.40 | 252.88 | 0.6063 | 898.7 | 561.2 | |
| 0.36 | 3.06 | 0.22 | 1.91 | -5.86 | 31.07 | 35.40 | 250.95 | 0.6119 | 830.8 | 759.1 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -3.56 | 30.94 | 35.27 | 254.50 | 0.6002 | 655.0 | 513.2 | |
| 0.90 | 1.98 | 0.56 | 1.24 | -6.81 | 30.96 | 35.29 | 249.42 | 0.6149 | -505.2 | -357.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -4.24 | 30.53 | 34.85 | 253.21 | 0.5975 | -323.0 | -262.7 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -4.11 | 30.41 | 34.74 | 253.36 | 0.5954 | 6.0 | -50.1 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -4.26 | 30.38 | 34.71 | 253.10 | 0.5956 | -516.0 | -307.7 | |
| 1.35 | 4.31 | 0.84 | 2.69 | -6.90 | 30.41 | 34.73 | 248.97 | 0.6082 | -691.7 | -411.4 | |
| 0.81 | 2.34 | 0.50 | 1.44 | -5.46 | 30.26 | 34.59 | 251.13 | 0.5994 | 874.4 | 711.3 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -4.56 | 30.17 | 34.50 | 252.52 | 0.5941 | 688.0 | 453.5 | |
| 0.00 | 5.21 | 0.00 | 3.19 | -3.99 | 30.07 | 34.40 | 253.38 | 0.5903 | -462.0 | -531.3 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -6.76 | 30.14 | 34.46 | 249.03 | 0.6040 | -452.0 | -337.7 | |
| 0.00 | 3.33 | 0.00 | 2.04 | -5.10 | 30.02 | 34.35 | 251.57 | 0.5945 | -495.0 | -304.9 | |
| 4.85 | 11.59 | 3.00 | 7.17 | -6.52 | 29.93 | 34.26 | 249.27 | 0.6002 | -571.5 | -361.1 | |
| 1.44 | -47.00 | 0.89 | -47.00 | -6.80 | 29.88 | 34.21 | 248.81 | 0.6009 | -786.1 | 999999 | |
| 1.62 | 22.29 | 0.99 | 13.55 | -3.87 | 29.66 | 33.99 | 253.36 | 0.5843 | -762.9 | -637.8 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -6.94 | 29.67 | 34.00 | 248.46 | 0.5989 | -575.0 | -519.6 | |
| 7.82 | -49.00 | 4.75 | -49.00 | -3.55 | 29.43 | 33.75 | 253.78 | 0.5797 | -966.0 | 999999 | |
| 0.00 | 3.42 | 0.00 | 2.07 | -4.24 | 29.13 | 33.45 | 252.48 | 0.5787 | -814.0 | -644.5 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -6.01 | 29.19 | 33.52 | 249.65 | 0.5880 | -632.0 | -545.1 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -6.54 | 29.23 | 33.56 | 248.83 | 0.5912 | -689.0 | -622.8 | |
| 4.67 | 19.50 | 2.84 | 11.82 | -5.01 | 29.09 | 33.42 | 251.20 | 0.5818 | -713.8 | -554.6 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -6.18 | 29.06 | 33.39 | 249.29 | 0.5871 | -733.0 | -585.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -4.31 | 28.84 | 33.17 | 252.20 | 0.5751 | -846.0 | -685.0 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -6.42 | 28.93 | 33.26 | 248.82 | 0.5866 | -713.0 | -508.1 | |
| 6.29 | -55.00 | 3.81 | -55.00 | -4.92 | 28.80 | 33.12 | 251.17 | 0.5774 | -896.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -5.27 | 28.82 | 33.14 | 250.62 | 0.5793 | -415.0 | -317.1 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -6.01 | 28.76 | 33.08 | 249.38 | 0.5822 | -872.0 | -670.1 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -5.81 | 28.67 | 33.00 | 249.64 | 0.5801 | -728.0 | -509.0 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -5.25 | 28.56 | 32.89 | 250.50 | 0.5758 | -654.0 | -592.6 | |
| 2.16 | -55.00 | 1.30 | -55.00 | -4.99 | 28.44 | 32.77 | 250.85 | 0.5729 | -990.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -4.77 | 28.43 | 32.75 | 251.20 | 0.5717 | -933.0 | -856.7 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -5.42 | 28.35 | 32.68 | 250.09 | 0.5739 | -833.0 | -665.5 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -5.20 | 28.27 | 32.60 | 250.41 | 0.5716 | -809.0 | -753.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -6.85 | 23.91 | 28.23 | 244.53 | 0.5223 | -624.0 | -605.2 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -6.17 | 21.84 | 26.17 | 243.97 | 0.4899 | -643.0 | -542.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
