SDO HMI 2014-08-21 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.79 | 264.93 | 48.22 | 168.26 | -4.74 | 31.51 | 36.94 | 253.39 | 0.6271 | 23.9 | 252.7 | |
|
previous
or next observation for the same group /

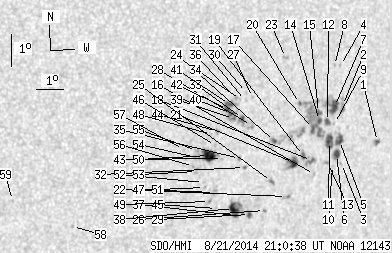

back to the solar disc SDO HMI 2014-08-21 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 2.34 | 0.90 | 1.57 | -5.03 | 35.30 | 40.73 | 254.69 | 0.6763 | 704.4 | 589.5 | |
| 0.00 | 5.30 | 0.00 | 3.46 | -3.80 | 33.83 | 39.26 | 255.88 | 0.6534 | 525.0 | 416.1 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -5.60 | 33.91 | 39.34 | 253.27 | 0.6611 | 374.0 | 334.2 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -2.56 | 33.69 | 39.13 | 257.68 | 0.6476 | 582.0 | 481.1 | |
| 4.76 | 9.08 | 3.12 | 5.94 | -4.87 | 33.78 | 39.21 | 254.27 | 0.6567 | 580.0 | 419.4 | |
| 4.04 | 6.20 | 2.65 | 4.07 | -5.30 | 33.69 | 39.12 | 253.60 | 0.6572 | 670.4 | 521.4 | |
| 6.83 | 20.49 | 4.44 | 13.28 | -3.80 | 33.51 | 38.95 | 255.74 | 0.6494 | 824.8 | 624.3 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -2.54 | 33.46 | 38.89 | 257.62 | 0.6444 | 609.0 | 578.0 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -4.33 | 33.54 | 38.98 | 254.97 | 0.6517 | 536.0 | 458.6 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -5.63 | 33.56 | 38.99 | 253.06 | 0.6568 | 507.0 | 577.7 | |
| 7.37 | 10.69 | 4.80 | 6.97 | -4.87 | 33.38 | 38.82 | 254.10 | 0.6517 | 835.2 | 604.2 | |
| 2.16 | 3.95 | 1.40 | 2.57 | -4.25 | 33.27 | 38.70 | 254.97 | 0.6478 | 799.4 | 640.3 | |
| 0.00 | 1.71 | 0.00 | 1.11 | -5.52 | 33.35 | 38.78 | 253.13 | 0.6538 | 718.0 | 643.3 | |
| 2.07 | 44.76 | 1.33 | 28.80 | -4.19 | 32.95 | 38.38 | 254.92 | 0.6436 | 1077.0 | 721.5 | |
| 1.80 | -14.00 | 1.16 | -14.00 | -3.94 | 32.90 | 38.33 | 255.28 | 0.6420 | 966.5 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.99 | -5.86 | 32.87 | 38.30 | 252.41 | 0.6491 | 556.0 | 407.1 | |
| 2.97 | -14.00 | 1.91 | -14.00 | -4.42 | 32.73 | 38.16 | 254.48 | 0.6416 | 955.0 | 999999 | |
| 1.62 | 10.69 | 1.05 | 6.90 | -5.41 | 32.72 | 38.15 | 253.00 | 0.6454 | 780.1 | 656.0 | |
| 1.44 | -18.00 | 0.93 | -18.00 | -5.23 | 32.40 | 37.83 | 253.12 | 0.6405 | 898.7 | 999999 | |
| 0.54 | -14.00 | 0.34 | -14.00 | -3.61 | 32.15 | 37.58 | 255.46 | 0.6310 | 816.8 | 999999 | |
| 6.02 | 13.66 | 3.86 | 8.74 | -5.42 | 32.02 | 37.46 | 252.66 | 0.6365 | 900.3 | 528.0 | |
| 0.00 | 2.70 | 0.00 | 1.73 | -6.46 | 31.84 | 37.27 | 251.01 | 0.6386 | 575.0 | 652.6 | |
| 0.00 | 2.43 | 0.00 | 1.53 | -2.15 | 31.56 | 36.99 | 257.49 | 0.6181 | 784.0 | 619.2 | |
| 1.35 | 24.63 | 0.85 | 15.67 | -4.71 | 31.25 | 36.68 | 253.36 | 0.6236 | 890.1 | 637.2 | |
| 0.72 | 2.25 | 0.46 | 1.43 | -5.95 | 31.22 | 36.65 | 251.46 | 0.6285 | 882.5 | 742.0 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -6.83 | 31.03 | 36.46 | 250.03 | 0.6301 | -465.0 | -434.0 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -3.29 | 30.35 | 35.78 | 255.17 | 0.6061 | -333.0 | -222.2 | |
| 0.00 | 3.42 | 0.00 | 2.13 | -4.15 | 30.35 | 35.78 | 253.80 | 0.6095 | -32.0 | -108.6 | |
| 1.44 | 22.11 | 0.91 | 13.89 | -6.92 | 30.47 | 35.90 | 249.59 | 0.6233 | -584.4 | -233.7 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -3.12 | 30.12 | 35.55 | 255.33 | 0.6023 | -416.0 | -327.5 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -3.36 | 30.09 | 35.52 | 254.93 | 0.6029 | -431.0 | -329.9 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -5.43 | 30.16 | 35.60 | 251.70 | 0.6125 | 566.0 | 582.3 | |
| 1.80 | 5.84 | 1.11 | 3.62 | -3.91 | 30.00 | 35.43 | 254.01 | 0.6039 | -664.0 | -493.2 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -3.32 | 29.90 | 35.33 | 254.91 | 0.6002 | -622.0 | -448.8 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -5.14 | 29.96 | 35.39 | 252.05 | 0.6085 | -431.0 | -358.3 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -3.27 | 29.75 | 35.18 | 254.91 | 0.5980 | -676.0 | -599.1 | |
| 1.71 | -29.00 | 1.07 | -29.00 | -6.91 | 29.94 | 35.37 | 249.31 | 0.6165 | -772.7 | 999999 | |
| 7.01 | -29.00 | 4.39 | -29.00 | -6.69 | 29.84 | 35.28 | 249.60 | 0.6142 | -722.4 | 999999 | |
| 0.63 | 17.44 | 0.39 | 10.74 | -3.88 | 29.66 | 35.10 | 253.89 | 0.5993 | -836.0 | -705.8 | |
| 1.71 | -39.00 | 1.05 | -39.00 | -3.72 | 29.58 | 35.01 | 254.11 | 0.5975 | -952.3 | 999999 | |
| 2.79 | -39.00 | 1.71 | -39.00 | -3.44 | 29.49 | 34.93 | 254.52 | 0.5952 | -915.4 | 999999 | |
| 2.52 | -39.00 | 1.55 | -39.00 | -3.59 | 29.43 | 34.86 | 254.25 | 0.5949 | -1006.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -5.10 | 29.32 | 34.75 | 251.78 | 0.6000 | -360.0 | -292.4 | |
| 0.00 | 1.89 | 0.00 | 1.16 | -4.24 | 29.09 | 34.52 | 253.02 | 0.5931 | -760.0 | -579.4 | |
| 0.00 | 1.44 | 0.00 | 0.89 | -6.64 | 29.21 | 34.64 | 249.30 | 0.6058 | -618.0 | -425.6 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -4.67 | 29.04 | 34.47 | 252.31 | 0.5943 | -222.0 | -164.3 | |
| 0.00 | 2.97 | 0.00 | 1.84 | -6.13 | 29.09 | 34.53 | 250.02 | 0.6018 | -589.0 | -567.0 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -4.32 | 28.87 | 34.30 | 252.78 | 0.5905 | -712.0 | -559.4 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -6.40 | 28.93 | 34.36 | 249.51 | 0.6010 | -582.0 | -503.4 | |
| 11.14 | 15.73 | 6.84 | 9.65 | -4.97 | 28.79 | 34.23 | 251.71 | 0.5924 | -834.4 | -500.6 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -5.95 | 28.71 | 34.14 | 250.09 | 0.5959 | -478.0 | -467.5 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -5.79 | 28.66 | 34.09 | 250.31 | 0.5945 | -651.0 | -524.3 | |
| 0.00 | 2.70 | 0.00 | 1.65 | -5.43 | 28.38 | 33.81 | 250.73 | 0.5891 | -642.0 | -657.0 | |
| 0.00 | 2.97 | 0.00 | 1.81 | -5.00 | 28.35 | 33.79 | 251.41 | 0.5867 | -1000.0 | -792.9 | |
| 0.00 | 1.89 | 0.00 | 1.15 | -4.78 | 28.34 | 33.77 | 251.76 | 0.5855 | -816.0 | -676.1 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -5.27 | 28.26 | 33.69 | 250.92 | 0.5867 | -820.0 | -677.2 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -4.71 | 27.86 | 33.30 | 251.59 | 0.5788 | -618.0 | -595.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -6.85 | 24.02 | 29.46 | 245.48 | 0.5387 | -731.0 | -644.3 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -5.92 | 21.88 | 27.32 | 245.41 | 0.5040 | -662.0 | -478.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
