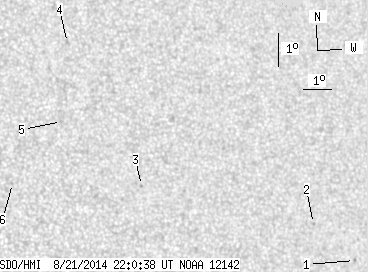

SDO HMI 2014-08-21 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.39 | 0.00 | 3.66 | 10.86 | 23.62 | 29.60 | 280.45 | 0.4951 | 283.0 | 161.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.71 | 7.72 | 30.00 | 35.99 | 273.60 | 0.5856 | -689.0 | -566.8 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 8.94 | 28.59 | 34.57 | 275.72 | 0.5655 | -605.0 | -513.4 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 10.49 | 22.53 | 28.52 | 279.24 | 0.4775 | 730.0 | 594.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 14.97 | 20.47 | 26.45 | 289.47 | 0.4583 | 703.0 | 558.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 12.58 | 19.97 | 25.95 | 284.48 | 0.4430 | 726.0 | 541.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 10.78 | 18.11 | 24.10 | 280.94 | 0.4103 | 833.0 | 631.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
