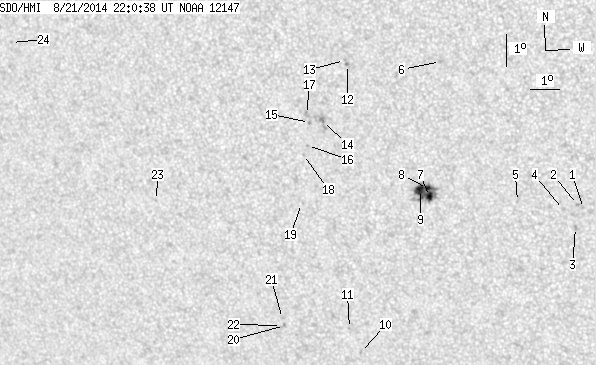

SDO HMI 2014-08-21 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.02 | 64.47 | 7.77 | 36.01 | -9.25 | 331.99 | -22.02 | 126.38 | 0.4612 | 499.7 | 495.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.24 | -9.81 | 338.19 | -15.82 | 136.54 | 0.3923 | 572.0 | 442.8 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -9.69 | 338.00 | -16.01 | 135.99 | 0.3930 | 947.0 | 729.1 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -10.42 | 337.90 | -16.11 | 137.09 | 0.4026 | 865.0 | 664.2 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -9.87 | 337.55 | -16.47 | 135.49 | 0.4001 | 739.0 | 529.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -9.66 | 336.08 | -17.94 | 132.66 | 0.4146 | 685.0 | 580.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -5.37 | 333.78 | -20.23 | 120.86 | 0.4027 | 905.0 | 831.4 | |
| 4.31 | 34.87 | 2.39 | 19.32 | -9.62 | 333.21 | -20.81 | 128.36 | 0.4485 | 1131.0 | 665.7 | |
| 2.52 | -7.00 | 1.39 | -7.00 | -9.37 | 333.16 | -20.86 | 127.85 | 0.4467 | 1240.2 | 999999 | |
| 7.19 | -7.00 | 3.99 | -7.00 | -9.41 | 332.93 | -21.09 | 127.61 | 0.4499 | 953.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -14.75 | 330.43 | -23.58 | 132.92 | 0.5304 | -762.0 | -569.5 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -13.99 | 330.14 | -23.87 | 131.47 | 0.5261 | -646.0 | -549.6 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -5.60 | 330.72 | -23.29 | 117.77 | 0.4466 | 942.0 | 816.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -5.48 | 330.63 | -23.39 | 117.44 | 0.4470 | 780.0 | 609.2 | |
| 0.00 | 5.66 | 0.00 | 3.18 | -7.42 | 329.79 | -24.22 | 120.27 | 0.4729 | 1025.0 | 831.0 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -7.48 | 329.35 | -24.66 | 119.90 | 0.4792 | 809.0 | 674.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -8.20 | 329.24 | -24.78 | 121.09 | 0.4863 | 683.0 | 516.7 | |
| 0.00 | 3.06 | 0.00 | 1.72 | -7.23 | 329.27 | -24.75 | 119.37 | 0.4785 | 646.0 | 597.0 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -8.49 | 329.08 | -24.93 | 121.44 | 0.4906 | 550.0 | 476.6 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -10.05 | 328.89 | -25.12 | 123.89 | 0.5056 | 380.0 | 498.5 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -14.01 | 327.90 | -26.12 | 128.96 | 0.5514 | -826.0 | -707.6 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -13.78 | 327.85 | -26.16 | 128.59 | 0.5499 | -734.0 | -647.3 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -14.01 | 327.79 | -26.22 | 128.86 | 0.5527 | -390.0 | -451.4 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -10.24 | 323.82 | -30.19 | 119.43 | 0.5703 | -519.0 | -456.3 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -5.62 | 318.96 | -35.05 | 108.88 | 0.6063 | -506.0 | -384.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
