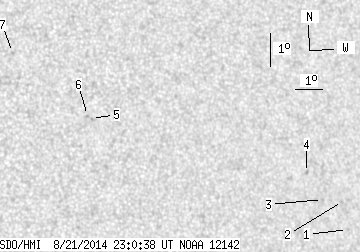

SDO HMI 2014-08-21 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.83 | 0.00 | 4.67 | 9.00 | 27.24 | 33.78 | 276.40 | 0.5539 | -22.7 | -76.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.68 | 6.50 | 31.56 | 38.10 | 271.68 | 0.6155 | -452.0 | -426.0 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 7.36 | 31.45 | 37.98 | 273.08 | 0.6135 | -425.0 | -392.3 | |
| 0.00 | 1.44 | 0.00 | 0.89 | 7.48 | 30.68 | 37.22 | 273.23 | 0.6029 | -596.0 | -486.6 | |
| 0.00 | 1.53 | 0.00 | 0.94 | 8.34 | 30.16 | 36.70 | 274.66 | 0.5955 | -595.0 | -496.2 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 10.49 | 22.50 | 29.04 | 279.15 | 0.4855 | 536.0 | 507.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 10.59 | 22.37 | 28.91 | 279.38 | 0.4836 | 617.0 | 572.0 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 12.64 | 19.97 | 26.51 | 284.41 | 0.4515 | 756.0 | 569.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
