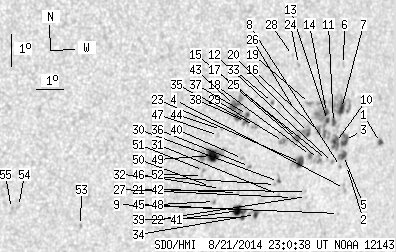

SDO HMI 2014-08-21 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.15 | 271.08 | 44.08 | 175.20 | -4.87 | 31.78 | 38.32 | 253.82 | 0.6453 | 106.9 | 241.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-21 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.80 | 3.06 | 1.23 | 2.09 | -5.08 | 35.29 | 41.83 | 255.04 | 0.6899 | 647.5 | 480.1 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -5.68 | 33.96 | 40.50 | 253.65 | 0.6758 | 447.0 | 304.3 | |
| 5.21 | 65.53 | 3.47 | 43.22 | -4.90 | 33.82 | 40.36 | 254.71 | 0.6712 | 524.6 | 647.3 | |
| 0.00 | 3.69 | 0.00 | 2.48 | -6.39 | 33.95 | 40.48 | 252.63 | 0.6783 | 625.0 | 398.9 | |
| 3.33 | -3.00 | 2.22 | -3.00 | -5.36 | 33.82 | 40.35 | 254.04 | 0.6728 | 622.4 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.07 | -2.54 | 33.65 | 40.19 | 258.08 | 0.6612 | 565.0 | 474.3 | |
| 5.66 | 30.74 | 3.75 | 20.32 | -3.89 | 33.64 | 40.17 | 256.09 | 0.6654 | 765.1 | 493.2 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -5.69 | 33.72 | 40.26 | 253.53 | 0.6729 | 582.0 | 512.0 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -7.16 | 33.78 | 40.32 | 251.48 | 0.6794 | 566.0 | 441.8 | |
| 5.84 | -3.00 | 3.87 | -3.00 | -4.93 | 33.46 | 40.00 | 254.51 | 0.6669 | 793.8 | 999999 | |
| 2.07 | 6.56 | 1.36 | 4.34 | -4.30 | 33.34 | 39.88 | 255.37 | 0.6631 | 765.0 | 530.9 | |
| 0.00 | 1.80 | 0.00 | 1.19 | -5.54 | 33.39 | 39.93 | 253.60 | 0.6682 | 674.0 | 581.1 | |
| 1.53 | -3.00 | 1.00 | -3.00 | -4.22 | 33.10 | 39.64 | 255.39 | 0.6597 | 1021.8 | 999999 | |
| 2.43 | -3.00 | 1.59 | -3.00 | -3.97 | 33.04 | 39.58 | 255.74 | 0.6582 | 919.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -5.43 | 33.14 | 39.68 | 253.65 | 0.6647 | 544.0 | 492.6 | |
| 1.17 | -3.00 | 0.77 | -3.00 | -4.53 | 32.76 | 39.30 | 254.80 | 0.6566 | 886.1 | 999999 | |
| 0.00 | 6.65 | 0.00 | 4.38 | -5.40 | 32.82 | 39.36 | 253.55 | 0.6606 | 691.0 | 646.0 | |
| 0.81 | 3.69 | 0.53 | 2.41 | -5.26 | 32.50 | 39.04 | 253.62 | 0.6560 | 879.4 | 712.8 | |
| 0.00 | 2.97 | 0.00 | 1.92 | -3.64 | 32.36 | 38.90 | 255.95 | 0.6482 | 783.0 | 658.3 | |
| 2.07 | 14.92 | 1.35 | 9.69 | -4.53 | 32.37 | 38.91 | 254.63 | 0.6516 | 840.6 | 676.5 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -6.37 | 32.43 | 38.97 | 251.98 | 0.6596 | 704.0 | 602.7 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -6.52 | 32.45 | 38.98 | 251.76 | 0.6604 | 448.0 | 390.1 | |
| 4.40 | 10.97 | 2.87 | 7.13 | -5.44 | 32.12 | 38.66 | 253.18 | 0.6519 | 847.7 | 605.4 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -2.40 | 31.88 | 38.42 | 257.63 | 0.6378 | 649.0 | 491.2 | |
| 2.25 | -20.00 | 1.46 | -20.00 | -4.69 | 31.95 | 38.49 | 254.22 | 0.6468 | 891.4 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -3.88 | 31.86 | 38.40 | 255.39 | 0.6427 | 395.0 | 424.0 | |
| 0.00 | 1.89 | 0.00 | 1.23 | -6.51 | 31.90 | 38.43 | 251.51 | 0.6535 | 515.0 | 503.5 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -2.11 | 31.64 | 38.17 | 258.00 | 0.6337 | 529.0 | 519.0 | |
| 0.00 | 5.66 | 0.00 | 3.64 | -4.74 | 31.41 | 37.95 | 253.90 | 0.6401 | 750.0 | 710.5 | |
| 0.90 | 3.15 | 0.58 | 2.03 | -5.97 | 31.30 | 37.84 | 252.02 | 0.6438 | 697.5 | 594.2 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -6.37 | 31.34 | 37.88 | 251.43 | 0.6459 | 497.0 | 523.3 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -6.05 | 31.20 | 37.73 | 251.84 | 0.6427 | 740.0 | 564.7 | |
| 0.00 | 1.71 | 0.00 | 1.09 | -3.50 | 30.92 | 37.45 | 255.57 | 0.6290 | -500.0 | -369.3 | |
| 1.53 | 6.38 | 0.98 | 4.09 | -6.93 | 30.50 | 37.04 | 250.18 | 0.6379 | -455.6 | -155.2 | |
| 0.00 | 3.69 | 0.00 | 2.33 | -4.16 | 30.26 | 36.80 | 254.26 | 0.6230 | -304.0 | -162.4 | |
| 0.00 | 1.53 | 0.00 | 0.97 | -5.42 | 30.15 | 36.69 | 252.28 | 0.6267 | 564.0 | 522.4 | |
| 0.99 | 7.46 | 0.62 | 4.69 | -3.80 | 29.98 | 36.52 | 254.69 | 0.6178 | -605.0 | -455.1 | |
| 1.80 | -37.00 | 1.13 | -37.00 | -4.01 | 29.91 | 36.45 | 254.33 | 0.6178 | -676.0 | 999999 | |
| 1.62 | 15.82 | 1.03 | 10.06 | -6.99 | 30.01 | 36.55 | 249.83 | 0.6319 | -636.4 | -448.3 | |
| 0.00 | 1.80 | 0.00 | 1.13 | -5.15 | 29.87 | 36.40 | 252.55 | 0.6218 | -556.0 | -270.1 | |
| 8.45 | -39.00 | 5.37 | -39.00 | -6.76 | 29.84 | 36.37 | 250.08 | 0.6286 | -750.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -6.19 | 29.75 | 36.29 | 250.89 | 0.6250 | -458.0 | -433.9 | |
| 4.67 | 19.24 | 2.92 | 12.02 | -3.48 | 29.47 | 36.01 | 254.95 | 0.6099 | -927.3 | -742.7 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -4.19 | 29.02 | 35.56 | 253.62 | 0.6067 | -579.0 | -587.4 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -6.65 | 29.18 | 35.72 | 249.89 | 0.6198 | -504.0 | -482.5 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -6.02 | 29.10 | 35.63 | 250.81 | 0.6157 | -688.0 | -531.7 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -4.37 | 28.91 | 35.45 | 253.29 | 0.6061 | -635.0 | -537.1 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -6.41 | 28.90 | 35.44 | 250.10 | 0.6150 | -601.0 | -468.6 | |
| 9.62 | 25.08 | 5.98 | 15.58 | -4.97 | 28.72 | 35.26 | 252.24 | 0.6062 | -847.4 | -575.5 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -5.93 | 28.71 | 35.25 | 250.74 | 0.6104 | -599.0 | -508.5 | |
| 0.00 | 1.44 | 0.00 | 0.89 | -5.41 | 28.42 | 34.95 | 251.38 | 0.6041 | -816.0 | -689.4 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -5.57 | 28.39 | 34.93 | 251.13 | 0.6044 | -665.0 | -576.6 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -6.82 | 24.04 | 30.58 | 246.36 | 0.5535 | -529.0 | -506.2 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -6.09 | 21.82 | 28.36 | 245.92 | 0.5193 | -588.0 | -435.7 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -6.14 | 21.58 | 28.12 | 245.65 | 0.5164 | -732.0 | -522.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
