SDO HMI 2014-08-22 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.11 | 22.75 | 6.98 | 22.10 | 15.48 | 52.86 | 59.95 | 283.96 | 0.8599 | 109.0 | 94.0 | |
|
previous
or next observation for the same group /

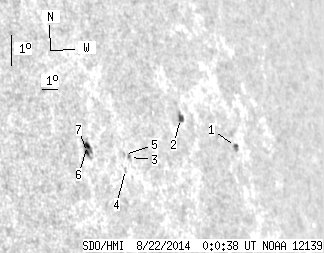

back to the solar disc SDO HMI 2014-08-22 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.26 | 3.51 | 1.46 | 4.07 | 14.78 | 58.51 | 65.60 | 283.10 | 0.9058 | -526.3 | -395.6 | |
| 2.34 | 5.21 | 2.43 | 5.43 | 16.01 | 55.23 | 62.32 | 284.48 | 0.8810 | -548.2 | -359.6 | |
| 0.00 | 2.52 | 0.00 | 2.35 | 15.17 | 51.52 | 58.61 | 283.58 | 0.8497 | 288.0 | 196.0 | |
| 0.00 | 1.35 | 0.00 | 1.25 | 14.84 | 51.13 | 58.22 | 283.20 | 0.8461 | 536.0 | 443.0 | |
| 0.00 | 0.90 | 0.00 | 0.83 | 15.29 | 51.27 | 58.36 | 283.73 | 0.8475 | 424.0 | 365.6 | |
| 2.16 | 9.26 | 1.90 | 8.17 | 15.77 | 49.31 | 56.40 | 284.38 | 0.8296 | 602.2 | 435.8 | |
| 1.35 | -6.00 | 1.19 | -6.00 | 15.56 | 49.22 | 56.31 | 284.13 | 0.8287 | 668.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
