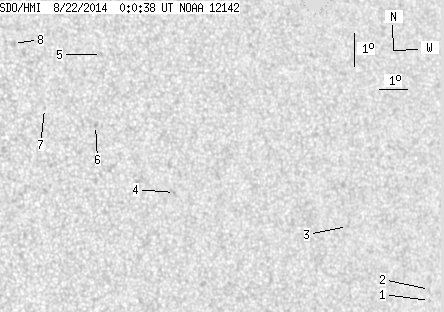

SDO HMI 2014-08-22 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.80 | 0.00 | 6.16 | 12.23 | 22.17 | 29.26 | 283.71 | 0.4937 | 178.4 | 216.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.45 | 6.55 | 31.60 | 38.69 | 271.81 | 0.6235 | -500.0 | -452.5 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 6.88 | 31.63 | 38.72 | 272.34 | 0.6238 | -622.0 | -493.6 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 9.02 | 28.70 | 35.79 | 275.81 | 0.5827 | -608.0 | -492.1 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 10.46 | 22.52 | 29.61 | 279.00 | 0.4939 | 760.0 | 607.8 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 14.80 | 20.47 | 27.56 | 288.54 | 0.4737 | 476.0 | 363.6 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 12.65 | 19.98 | 27.07 | 284.21 | 0.4599 | 617.0 | 485.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 13.26 | 18.28 | 25.37 | 286.24 | 0.4361 | 616.0 | 486.9 | |
| 0.00 | 3.24 | 0.00 | 1.78 | 15.29 | 17.45 | 24.54 | 291.26 | 0.4317 | 688.0 | 479.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
