SDO HMI 2014-08-22 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.07 | 257.89 | 40.17 | 169.23 | -4.87 | 31.64 | 39.28 | 254.22 | 0.6575 | 93.8 | 207.6 | |
|
previous
or next observation for the same group /

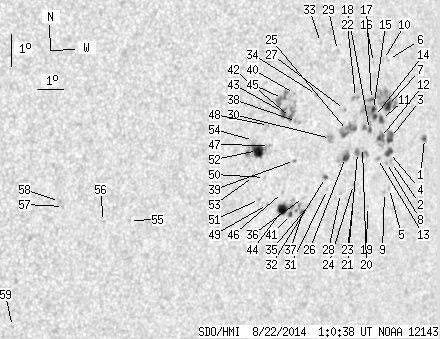

back to the solar disc SDO HMI 2014-08-22 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 2.97 | 0.94 | 2.06 | -5.11 | 35.31 | 42.95 | 255.43 | 0.7036 | 655.9 | 487.9 | |
| 0.00 | 2.16 | 0.00 | 1.47 | -5.74 | 34.00 | 41.64 | 254.04 | 0.6900 | 447.0 | 347.3 | |
| 4.94 | 17.89 | 3.36 | 12.10 | -4.96 | 33.90 | 41.54 | 255.09 | 0.6860 | 507.8 | 534.2 | |
| 3.78 | 6.20 | 2.57 | 4.22 | -5.42 | 33.89 | 41.53 | 254.44 | 0.6875 | 538.4 | 383.3 | |
| 0.00 | 1.53 | 0.00 | 1.05 | -6.55 | 34.00 | 41.64 | 252.91 | 0.6929 | 470.0 | 389.1 | |
| 0.00 | 1.35 | 0.00 | 0.90 | -2.53 | 33.68 | 41.32 | 258.47 | 0.6755 | 520.0 | 472.5 | |
| 6.38 | 65.63 | 4.30 | 43.98 | -3.95 | 33.71 | 41.35 | 256.44 | 0.6802 | 752.7 | 561.7 | |
| 0.00 | 1.26 | 0.00 | 0.86 | -5.72 | 33.80 | 41.44 | 253.97 | 0.6874 | 577.0 | 460.8 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -6.66 | 33.81 | 41.44 | 252.68 | 0.6910 | 639.0 | 495.2 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -2.52 | 33.48 | 41.12 | 258.42 | 0.6729 | 559.0 | 494.1 | |
| 2.43 | -7.00 | 1.63 | -7.00 | -4.37 | 33.49 | 41.13 | 255.77 | 0.6789 | 654.6 | 999999 | |
| 4.05 | -3.00 | 2.73 | -3.00 | -4.92 | 33.49 | 41.13 | 254.98 | 0.6808 | 797.4 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.52 | -5.57 | 33.42 | 41.06 | 254.04 | 0.6822 | 581.0 | 533.2 | |
| 1.80 | -7.00 | 1.20 | -7.00 | -4.25 | 33.20 | 40.84 | 255.82 | 0.6749 | 930.2 | 999999 | |
| 2.52 | -7.00 | 1.68 | -7.00 | -4.03 | 33.15 | 40.79 | 256.12 | 0.6735 | 888.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -2.58 | 33.08 | 40.71 | 258.20 | 0.6680 | 515.0 | 447.0 | |
| 1.35 | -7.00 | 0.90 | -7.00 | -3.71 | 33.05 | 40.69 | 256.54 | 0.6712 | 827.9 | 999999 | |
| 1.26 | -7.00 | 0.84 | -7.00 | -4.64 | 33.02 | 40.66 | 255.20 | 0.6741 | 818.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -7.04 | 33.15 | 40.79 | 251.86 | 0.6846 | 563.0 | 456.1 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -5.18 | 32.78 | 40.42 | 254.33 | 0.6730 | 566.0 | 443.1 | |
| 1.44 | 8.63 | 0.96 | 5.77 | -5.31 | 32.59 | 40.23 | 254.05 | 0.6712 | 793.9 | 670.0 | |
| 0.00 | 3.33 | 0.00 | 2.19 | -3.60 | 32.40 | 40.04 | 256.46 | 0.6627 | 783.0 | 695.5 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -6.46 | 32.57 | 40.21 | 252.41 | 0.6753 | 492.0 | 394.3 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -6.30 | 32.52 | 40.16 | 252.61 | 0.6740 | 705.0 | 641.7 | |
| 0.00 | 15.73 | 0.00 | 10.38 | -4.60 | 32.14 | 39.78 | 254.90 | 0.6629 | 863.0 | 696.4 | |
| 2.79 | 10.52 | 1.85 | 6.96 | -5.43 | 32.12 | 39.76 | 253.68 | 0.6658 | 787.3 | 629.7 | |
| 0.00 | 1.35 | 0.00 | 0.89 | -3.94 | 31.98 | 39.62 | 255.80 | 0.6586 | 608.0 | 629.1 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -6.54 | 32.02 | 39.66 | 252.04 | 0.6688 | 477.0 | 455.9 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -2.09 | 31.63 | 39.27 | 258.41 | 0.6480 | 586.0 | 509.3 | |
| 0.00 | 4.85 | 0.00 | 3.18 | -4.79 | 31.48 | 39.12 | 254.33 | 0.6553 | 872.0 | 749.6 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -6.37 | 31.49 | 39.13 | 252.03 | 0.6616 | 634.0 | 516.1 | |
| 0.99 | 1.98 | 0.65 | 1.30 | -5.99 | 31.38 | 39.02 | 252.53 | 0.6587 | 804.7 | 721.2 | |
| 0.00 | 1.53 | 0.00 | 0.98 | -1.80 | 30.96 | 38.59 | 258.62 | 0.6383 | 73.0 | 151.3 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -3.39 | 30.86 | 38.49 | 256.16 | 0.6422 | -561.0 | -377.3 | |
| 0.00 | 2.34 | 0.00 | 1.53 | -6.82 | 30.78 | 38.42 | 251.05 | 0.6547 | 355.0 | 323.4 | |
| 0.00 | 1.71 | 0.00 | 1.11 | -6.55 | 30.56 | 38.20 | 251.33 | 0.6508 | 268.0 | 258.2 | |
| 1.17 | 6.65 | 0.76 | 4.33 | -7.02 | 30.57 | 38.21 | 250.65 | 0.6529 | -522.5 | -237.1 | |
| 0.00 | 2.88 | 0.00 | 1.84 | -4.16 | 30.12 | 37.76 | 254.68 | 0.6355 | -397.0 | -296.7 | |
| 0.00 | 1.35 | 0.00 | 0.87 | -5.37 | 30.12 | 37.76 | 252.86 | 0.6402 | 460.0 | 532.6 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -3.29 | 30.00 | 37.64 | 255.96 | 0.6307 | -481.0 | -463.9 | |
| 1.53 | 19.33 | 0.99 | 12.49 | -7.04 | 30.11 | 37.74 | 250.38 | 0.6472 | -521.5 | -370.2 | |
| 1.98 | 17.26 | 1.26 | 10.99 | -4.02 | 29.88 | 37.52 | 254.79 | 0.6319 | -673.1 | -524.9 | |
| 3.24 | -42.00 | 2.05 | -42.00 | -3.84 | 29.60 | 37.24 | 254.93 | 0.6276 | -855.9 | 999999 | |
| 7.82 | -41.00 | 5.04 | -41.00 | -6.86 | 29.78 | 37.42 | 250.48 | 0.6424 | -782.0 | 999999 | |
| 0.00 | 11.42 | 0.00 | 7.23 | -3.41 | 29.54 | 37.18 | 255.58 | 0.6252 | -908.0 | -746.0 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -6.33 | 29.73 | 37.37 | 251.24 | 0.6394 | -369.0 | -335.7 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -4.83 | 29.12 | 36.76 | 253.20 | 0.6252 | -417.0 | -342.2 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -4.20 | 29.05 | 36.69 | 254.13 | 0.6217 | -660.0 | -522.0 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -6.66 | 29.18 | 36.82 | 250.46 | 0.6339 | -526.0 | -436.8 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -5.81 | 29.00 | 36.64 | 251.65 | 0.6278 | -572.0 | -503.1 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -6.48 | 28.86 | 36.50 | 250.56 | 0.6291 | -618.0 | -479.5 | |
| 10.25 | 19.60 | 6.46 | 12.34 | -4.95 | 28.68 | 36.32 | 252.80 | 0.6199 | -798.6 | -669.7 | |
| 0.00 | 2.25 | 0.00 | 1.42 | -5.75 | 28.58 | 36.22 | 251.53 | 0.6221 | -684.0 | -553.0 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -4.63 | 28.51 | 36.14 | 253.21 | 0.6163 | -517.0 | -496.1 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -6.80 | 24.08 | 31.72 | 247.19 | 0.5686 | -437.0 | -420.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -6.77 | 23.15 | 30.79 | 246.59 | 0.5561 | -639.0 | -556.6 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -6.21 | 21.70 | 29.34 | 246.47 | 0.5334 | -650.0 | -547.5 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -6.05 | 21.55 | 29.19 | 246.64 | 0.5304 | -618.0 | -545.2 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -9.88 | 20.20 | 27.84 | 239.07 | 0.5384 | -396.0 | -347.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
