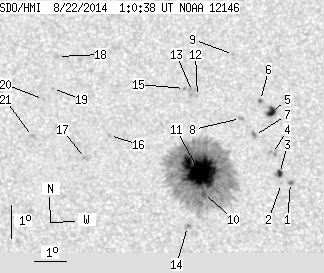

SDO HMI 2014-08-22 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.40 | 439.84 | 39.29 | 220.53 | 9.15 | 343.69 | -8.67 | 74.94 | 0.1551 | -681.1 | -365.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.72 | 1.89 | 0.36 | 0.94 | 8.74 | 346.48 | -5.88 | 72.40 | 0.1066 | 1117.8 | 866.9 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.71 | 346.21 | -6.15 | 73.40 | 0.1111 | 880.0 | 705.3 | |
| 2.70 | 5.48 | 1.34 | 2.73 | 9.01 | 346.14 | -6.22 | 70.99 | 0.1137 | 1086.4 | 780.9 | |
| 0.00 | 4.50 | 0.00 | 2.24 | 9.62 | 345.91 | -6.45 | 66.79 | 0.1210 | 732.0 | 759.3 | |
| 5.39 | 7.46 | 2.70 | 3.73 | 10.89 | 345.86 | -6.50 | 57.93 | 0.1318 | 1009.7 | 628.4 | |
| 0.54 | 1.53 | 0.27 | 0.76 | 11.22 | 345.51 | -6.85 | 57.17 | 0.1399 | 980.7 | 794.1 | |
| 0.00 | 2.61 | 0.00 | 1.30 | 10.16 | 345.35 | -7.01 | 64.63 | 0.1336 | 1199.0 | 873.3 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 10.67 | 344.90 | -7.46 | 62.65 | 0.1443 | 859.0 | 691.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 12.61 | 344.63 | -7.73 | 52.74 | 0.1657 | -899.0 | -787.0 | |
| 1.98 | 391.63 | 0.99 | 196.35 | 8.37 | 343.80 | -8.56 | 79.86 | 0.1502 | -913.4 | -449.8 | |
| 67.07 | -10.00 | 33.63 | -10.00 | 9.04 | 343.66 | -8.70 | 75.73 | 0.1548 | -1459.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.31 | 343.54 | -8.82 | 62.68 | 0.1700 | -702.0 | -528.5 | |
| 0.00 | 5.12 | 0.00 | 2.58 | 11.46 | 343.38 | -8.98 | 62.30 | 0.1736 | -964.0 | -744.9 | |
| 0.00 | 3.06 | 0.00 | 1.53 | 7.37 | 343.33 | -9.03 | 86.73 | 0.1567 | -631.0 | -372.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 11.55 | 343.13 | -9.23 | 62.48 | 0.1781 | -905.0 | -728.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.08 | 340.82 | -11.54 | 73.83 | 0.2060 | 789.0 | 603.5 | |
| 0.00 | 3.42 | 0.00 | 1.73 | 9.36 | 340.09 | -12.27 | 77.90 | 0.2154 | 837.0 | 700.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 12.44 | 339.08 | -13.28 | 66.21 | 0.2463 | 837.0 | 610.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.46 | 338.96 | -13.40 | 70.14 | 0.2425 | 896.0 | 723.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.12 | 338.69 | -13.67 | 71.81 | 0.2451 | 871.0 | 604.1 | |
| 0.00 | 2.25 | 0.00 | 1.15 | 9.98 | 338.40 | -13.97 | 76.60 | 0.2454 | 913.0 | 776.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
