SDO HMI 2014-08-22 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.97 | 437.74 | 38.99 | 219.16 | 9.13 | 343.72 | -8.09 | 74.09 | 0.1454 | -719.0 | -376.9 | |
|
previous
or next observation for the same group /

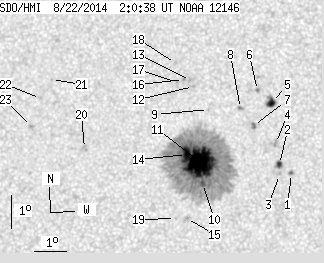

back to the solar disc SDO HMI 2014-08-22 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 1.80 | 0.31 | 0.90 | 8.72 | 346.55 | -5.26 | 70.79 | 0.0964 | 1041.9 | 834.2 | |
| 2.52 | 4.32 | 1.25 | 2.15 | 8.99 | 346.18 | -5.63 | 69.45 | 0.1040 | 1115.3 | 838.6 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 8.69 | 346.18 | -5.63 | 72.24 | 0.1023 | 753.0 | 610.7 | |
| 0.00 | 2.70 | 0.00 | 1.34 | 9.63 | 346.04 | -5.77 | 64.40 | 0.1103 | 1019.0 | 808.4 | |
| 5.04 | 8.63 | 2.51 | 4.31 | 10.87 | 345.90 | -5.91 | 55.64 | 0.1231 | 989.2 | 661.0 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 11.23 | 345.46 | -6.35 | 55.17 | 0.1328 | 1089.0 | 790.0 | |
| 0.81 | 2.79 | 0.40 | 1.39 | 10.17 | 345.35 | -6.46 | 62.75 | 0.1251 | 1069.2 | 794.8 | |
| 0.00 | 2.07 | 0.00 | 1.03 | 10.68 | 344.94 | -6.87 | 60.69 | 0.1354 | 872.0 | 691.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.63 | 343.95 | -7.86 | 64.03 | 0.1503 | -858.0 | -612.5 | |
| 3.69 | 394.55 | 1.84 | 197.54 | 8.39 | 343.81 | -8.00 | 79.17 | 0.1408 | -1049.2 | -451.9 | |
| 55.66 | -10.00 | 27.86 | -10.00 | 9.02 | 343.73 | -8.08 | 74.89 | 0.1444 | -1509.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 11.33 | 343.46 | -8.35 | 61.39 | 0.1629 | -987.0 | -741.0 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 11.51 | 343.36 | -8.45 | 60.69 | 0.1659 | -921.0 | -862.2 | |
| 9.62 | -10.00 | 4.82 | -10.00 | 9.26 | 343.30 | -8.52 | 74.08 | 0.1527 | -1234.1 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 7.32 | 343.34 | -8.48 | 86.93 | 0.1471 | -491.0 | -271.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.53 | 343.14 | -8.67 | 61.14 | 0.1694 | -905.0 | -652.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.44 | 342.96 | -8.85 | 62.12 | 0.1714 | -799.0 | -624.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 12.02 | 342.88 | -8.94 | 59.40 | 0.1773 | -764.0 | -616.2 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 7.31 | 343.00 | -8.82 | 87.05 | 0.1529 | 589.0 | 384.1 | |
| 0.00 | 3.06 | 0.00 | 1.55 | 9.38 | 340.11 | -11.70 | 77.34 | 0.2060 | 814.0 | 776.3 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 11.45 | 338.99 | -12.82 | 69.47 | 0.2333 | 894.0 | 683.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 10.86 | 338.66 | -13.15 | 72.27 | 0.2356 | 934.0 | 650.6 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 10.00 | 338.42 | -13.40 | 76.06 | 0.2361 | 968.0 | 832.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
