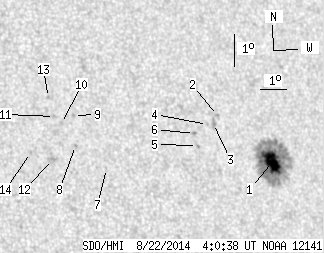

SDO HMI 2014-08-22 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.33 | 143.28 | 12.83 | 89.74 | 16.53 | 27.98 | 37.27 | 288.22 | 0.6130 | -455.3 | -317.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.33 | 122.31 | 12.83 | 77.25 | 16.35 | 28.70 | 37.99 | 287.66 | 0.6221 | -1076.3 | -383.6 | |
| 0.00 | 1.80 | 0.00 | 1.11 | 17.92 | 26.88 | 36.16 | 290.73 | 0.6026 | -653.0 | -565.0 | |
| 0.00 | 3.87 | 0.00 | 2.39 | 17.68 | 26.66 | 35.95 | 290.42 | 0.5991 | -680.0 | -592.3 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 17.67 | 26.42 | 35.71 | 290.48 | 0.5959 | -684.0 | -578.3 | |
| 0.00 | 1.44 | 0.00 | 0.88 | 17.05 | 25.89 | 35.18 | 289.64 | 0.5871 | -868.0 | -736.7 | |
| 0.00 | 1.80 | 0.00 | 1.10 | 17.43 | 25.86 | 35.15 | 290.28 | 0.5877 | -754.0 | -594.5 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 16.57 | 22.34 | 31.62 | 290.15 | 0.5374 | 553.0 | 358.1 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 17.35 | 21.33 | 30.62 | 292.02 | 0.5265 | 751.0 | 676.2 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 18.27 | 21.44 | 30.72 | 293.66 | 0.5317 | 708.0 | 556.5 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 18.05 | 20.95 | 30.23 | 293.51 | 0.5241 | 617.0 | 516.1 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 18.28 | 20.73 | 30.02 | 294.05 | 0.5222 | 764.0 | 571.0 | |
| 0.00 | 2.79 | 0.00 | 1.61 | 16.97 | 20.42 | 29.70 | 291.76 | 0.5123 | 880.0 | 715.7 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 18.88 | 20.63 | 29.91 | 295.20 | 0.5236 | 788.0 | 639.1 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 17.23 | 19.66 | 28.95 | 292.65 | 0.5029 | 627.0 | 561.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
