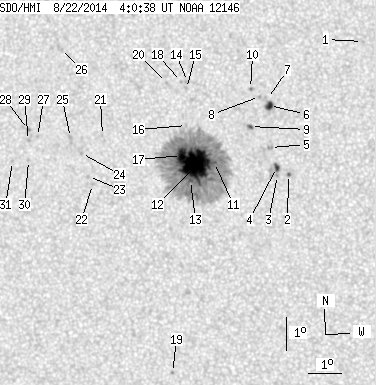

SDO HMI 2014-08-22 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.80 | 448.09 | 38.84 | 223.87 | 9.15 | 343.67 | -7.04 | 71.74 | 0.1284 | -608.7 | -343.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.54 | 12.79 | 348.85 | -1.87 | 17.32 | 0.1072 | -838.0 | -685.1 | |
| 0.54 | 1.53 | 0.27 | 0.76 | 8.74 | 346.59 | -4.12 | 66.04 | 0.0781 | 976.7 | 850.2 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.70 | 346.26 | -4.46 | 68.00 | 0.0832 | 897.0 | 733.2 | |
| 2.34 | 8.09 | 1.16 | 4.02 | 8.95 | 346.22 | -4.49 | 65.49 | 0.0854 | 1148.0 | 656.5 | |
| 0.00 | 2.52 | 0.00 | 1.25 | 9.55 | 346.03 | -4.68 | 60.34 | 0.0931 | 970.0 | 871.4 | |
| 4.23 | 6.48 | 2.11 | 3.23 | 10.83 | 345.98 | -4.73 | 49.96 | 0.1063 | 1078.0 | 607.4 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 11.04 | 345.92 | -4.80 | 48.83 | 0.1095 | 392.0 | 397.2 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.10 | 345.67 | -5.05 | 49.83 | 0.1135 | 880.0 | 688.1 | |
| 0.99 | 2.34 | 0.49 | 1.17 | 10.18 | 345.40 | -5.31 | 57.97 | 0.1079 | 915.4 | 767.3 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 11.34 | 345.38 | -5.33 | 49.75 | 0.1199 | 849.0 | 728.8 | |
| 0.27 | 396.08 | 0.13 | 197.82 | 9.08 | 344.31 | -6.41 | 70.99 | 0.1171 | -1070.7 | -439.8 | |
| 57.92 | -11.00 | 28.92 | -11.00 | 9.01 | 343.75 | -6.96 | 72.86 | 0.1258 | -1526.9 | 999999 | |
| 1.62 | -11.00 | 0.81 | -11.00 | 8.52 | 343.58 | -7.14 | 76.96 | 0.1267 | -1037.9 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 11.53 | 343.42 | -7.29 | 56.98 | 0.1490 | -792.0 | -704.3 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 11.31 | 343.39 | -7.32 | 58.31 | 0.1475 | -940.0 | -657.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.19 | 343.42 | -7.29 | 65.27 | 0.1382 | -650.0 | -506.1 | |
| 9.89 | -11.00 | 4.95 | -11.00 | 9.28 | 343.28 | -7.43 | 71.91 | 0.1349 | -1272.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.52 | 343.23 | -7.48 | 57.64 | 0.1517 | -690.0 | -558.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 2.69 | 343.09 | -7.62 | 118.89 | 0.1521 | -869.0 | -725.6 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.49 | 342.77 | -7.95 | 59.34 | 0.1582 | -876.0 | -723.9 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.84 | 340.81 | -9.90 | 72.84 | 0.1781 | 657.0 | 479.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 8.35 | 340.54 | -10.17 | 81.41 | 0.1775 | 761.0 | 600.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 8.59 | 340.41 | -10.30 | 80.17 | 0.1803 | 722.0 | 528.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 9.28 | 340.17 | -10.54 | 76.66 | 0.1864 | 889.0 | 756.7 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 9.76 | 339.81 | -10.90 | 74.61 | 0.1942 | 780.0 | 594.5 | |
| 0.00 | 3.15 | 0.00 | 1.60 | 12.43 | 339.40 | -11.31 | 62.94 | 0.2161 | 596.0 | 558.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.77 | 338.78 | -11.94 | 75.73 | 0.2113 | 771.0 | 565.2 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 9.97 | 338.49 | -12.23 | 75.09 | 0.2168 | 1009.0 | 850.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 9.64 | 338.50 | -12.21 | 76.59 | 0.2154 | 855.0 | 684.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.03 | 338.52 | -12.19 | 79.37 | 0.2132 | 705.0 | 578.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.99 | 338.02 | -12.70 | 79.91 | 0.2215 | 753.0 | 537.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
